FG750_0109

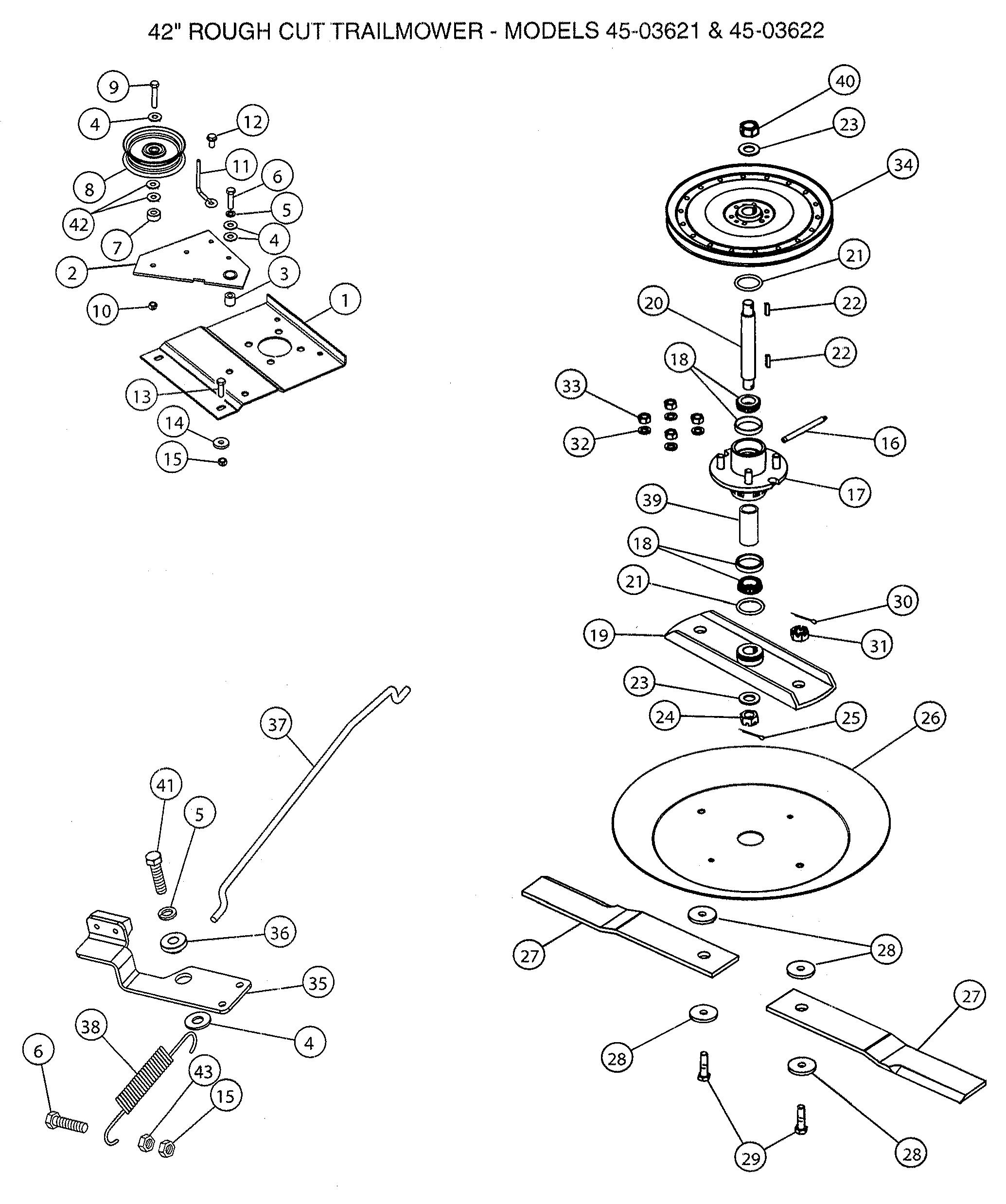

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG750_0109

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 64906-AF IDLER MOUNTING BRACKET £192.60 Add
002 64899-AF IDLER ARM £173.32 Add
003 24472-AF BUSHING N/A POA
004 43070-AF Washer, 3/8" £3.91 Add
005 736-0169 L. WASHER £2.89 Add
006 49640-AF BOLT 3/8-16 X 1-1/2" HEX HEAD (SCOTCH GRIP) N/A POA
007 49148-AF SPACER £28.74 Add
008 HA21341-AF IDLER PULLEY ASSY £75.81 Add
009 43432-AF Bolt, Hex 3/8-16 x 2-1/2" Lg. 43432 £4.05 Add
010 43082-AF HEX LOCK NUT £4.12 Add
011 HA22981 BELT GUIDE £7.98 Add
012 HA22224 SCREW 3/8-16 X 3/4 SELF TAPPING N/A POA
013 43087-AF Hex Bolt, 3/8-16 x 1-1/4" Long 43087 £4.58 Add
014 HA15200 WASHER FLAT N/A POA
015 HA21362 NUT £3.96 Add
016 HA24367 GREASE FITTING N/A POA
017 HA24278-AF BLADE HUB £129.45 Add
018 HA24280-AF TAPPERED ROLLER BEARING £37.38 Add
019 64913-AF HUB BLADE £365.09 Add
020 49149-AF SPINDLE SHAFT £100.91 Add
021 HA24282-AF O-RING £3.56 Add
022 HA3073-AF KEY 1/4" SQ. X 1" £4.28 Add
023 HA456151 WASHER £5.40 Add
024 HA427639-AF SLOTTED NUT £12.90 Add
025 47063-AF COTTER PIN £3.49 Add
026 HA24624 DISC BLADE MOUNTING £338.05 Add
027 HA24288 BLADE £125.97 Add
028 HA24625 WASHER - FLAT £3.62 Add
029 HA24592 BOLT, HEX 7/8-9X2-1/4 GR8 £8.79 Add
030 HA137258 PIN COTTER 3/16" X 1-3/4" N/A POA
031 HA24593-AF SLOTTED NUT £5.52 Add
032 43353-AF Lock Washer, 1/2" 43353 £3.08 Add
033 HA120371 NUT 1/2-20 HEX N/A POA
034 65102-AF PULLEY SPINDLE £332.19 Add
035 64902-AF BRAKE £85.50 Add
036 49155-AF TRUNNION N/A POA
037 49160-AF BRAKE ROD £11.98 Add
038 HA20186 SPRING, IDLER £21.58 Add
039 49624-AF SPACER, BEARING £25.22 Add
040 49674-AF NUT, 3/4-16 NYLOCK £6.08 Add
041 49681-AF BOLT, 3/8-16 X 1" HEX HEAD (SCOTCH GRIP) N/A POA
042 43081-AF FLAT WASHER £3.49 Add
043 712-0798 HEX. NUT £7.61 Add
