Parts list

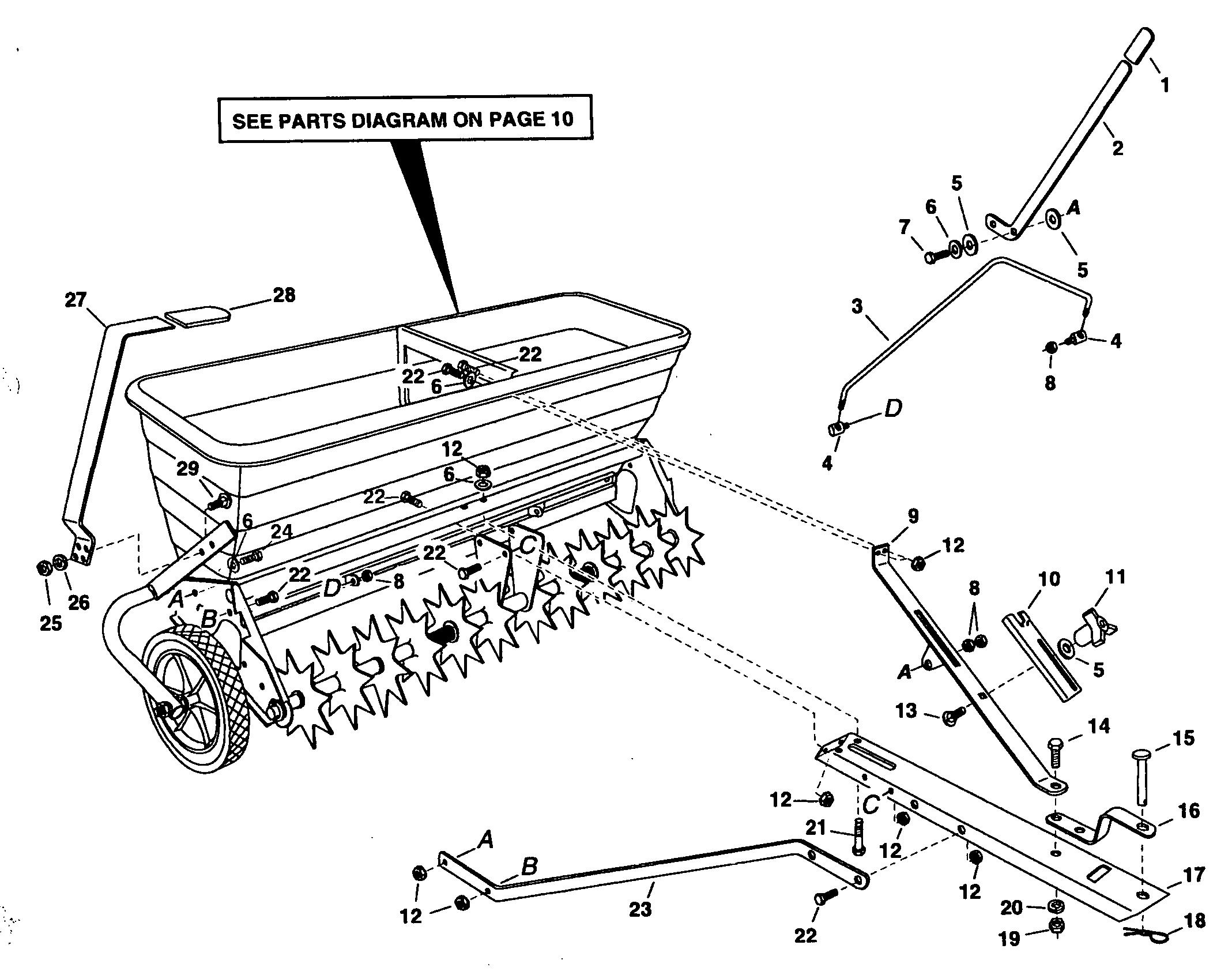

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
001
|
43848-AF
|
Grip, Flow Control Arm 43848
|
£5.99
|
Add
|
|
002
|
24660-AF
|
ARM, FLOW CONTROL
|
£32.80
|
Add
|
|
003
|
47712-AF
|
ROD, FLOW CONTROL
|
£60.48
|
Add
|
|
004
|
47711-AF
|
FERRULE
|
£16.13
|
Add
|
|
005
|
1543-69-AF
|
Washer, Nylon 1543-069
|
N/A
|
POA
|
|
006
|
43088-AF
|
FLAT WASHER
|
£3.11
|
Add
|
|
007
|
1509-090
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
008
|
712-0291
|
LOCK-NUT
|
£2.77
|
Add
|
|
009
|
63850-AF
|
BRACE ASSEMBLY, HOPPER
|
£42.01
|
Add
|
|
010
|
24542-AF
|
GAUGE, FLOW CONTROL
|
£8.40
|
Add
|
|
011
|
43849-AF
|
Knob, Plastic 1/4-20 Thd. 43849
|
£24.61
|
Add
|
|
012
|
46978-AF
|
NUT
|
£3.49
|
Add
|
|
013
|
44950-AF
|
BOLT
|
£3.62
|
Add
|
|
014
|
43001-AF
|
HEX BOLT (RED)
|
£3.49
|
Add
|
|
015
|
47623-AF
|
HITCH PIN
|
£3.56
|
Add
|
|
016
|
23014-AF
|
HITCH BRACKET
|
£31.67
|
Add
|
|
017
|
24531-AF
|
TONGUE
|
£32.67
|
Add
|
|
018
|
43343-AF
|
PIN COTTER
|
£4.20
|
Add
|
|
019
|
43082-AF
|
HEX LOCK NUT
|
£4.12
|
Add
|
|
020
|
736-0169
|
L. WASHER
|
£2.89
|
Add
|
|
021
|
1509-69-AF
|
HEX BOLT, 1/4-20 X 1-3/4" LG.
|
£2.77
|
Add
|
|
022
|
43866-AF
|
Bolt, Hex 1/4-20 x 5/8" Lg. Gr. 5 43866
|
£3.48
|
Add
|
|
023
|
24532-AF
|
BRACE, TONGUE
|
£14.41
|
Add
|
|
024
|
43012-AF
|
BOLT
|
£3.32
|
Add
|
|
025
|
43083-AF
|
HEX NUT
|
£3.32
|
Add
|
|
026
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
027
|
24647-AF
|
BAR, TRANSPORT HANDLE
|
£22.04
|
Add
|
|
028
|
47707-AF
|
GRIP
|
N/A
|
POA
|
|
029
|
44326-AF
|
BOLT, CARR 5/16-18x1" PLTD GR5 AF-44326
|
£3.49
|
Add
|
