Parts list

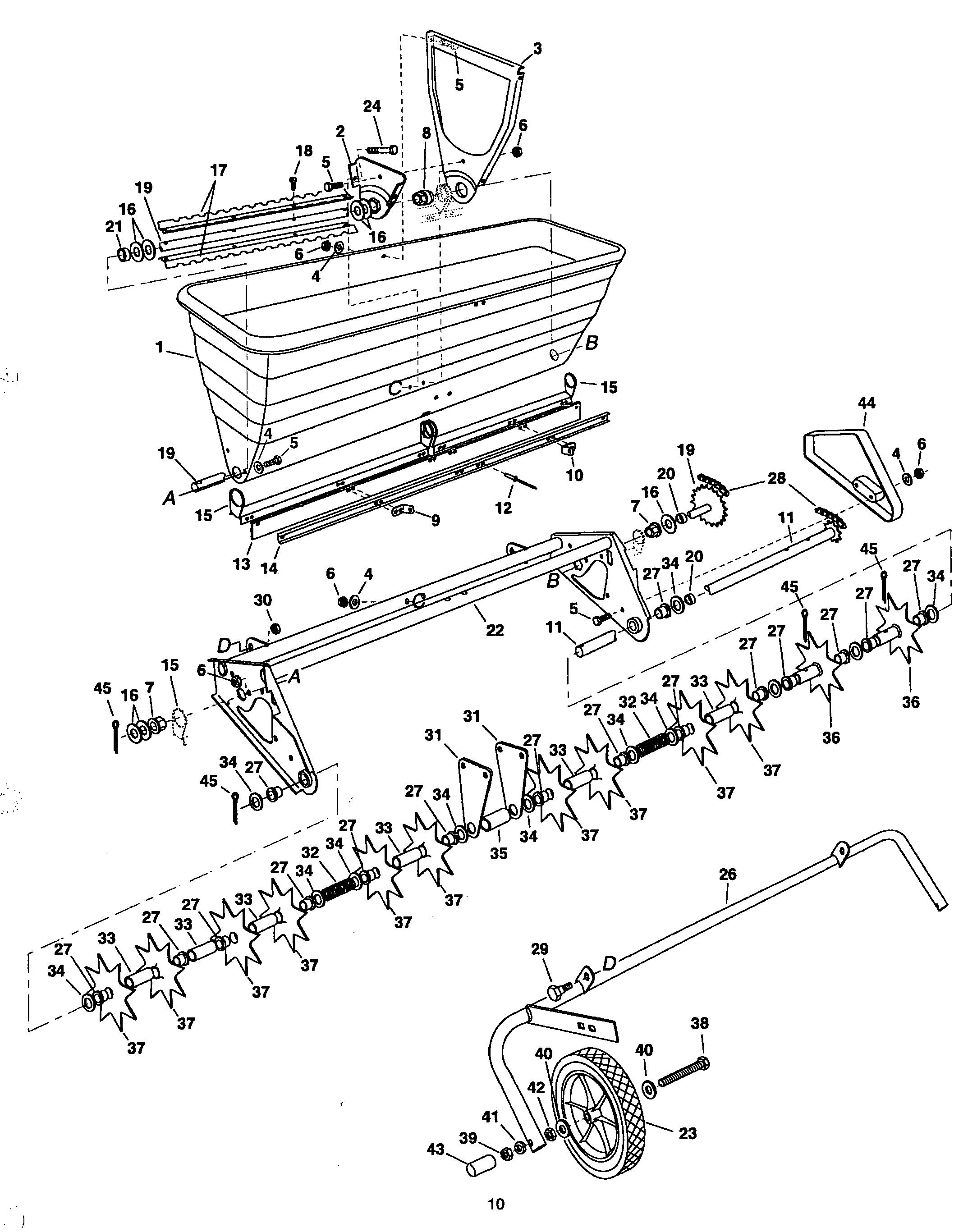

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
47685-AF
|
OWNERS MANUAL
|
N/A
|
POA
|
|
001
|
47451-AF
|
HOPPER
|
£358.53
|
Add
|
|
002
|
24536-AF
|
HOPPER CENTER PLATE (SMALL)
|
£7.94
|
Add
|
|
003
|
24535-AF
|
HOPPER CENTER PLATE (LARGE)
|
£40.86
|
Add
|
|
004
|
43088-AF
|
FLAT WASHER
|
£3.11
|
Add
|
|
005
|
43866-AF
|
Bolt, Hex 1/4-20 x 5/8" Lg. Gr. 5 43866
|
£3.48
|
Add
|
|
006
|
46978-AF
|
NUT
|
£3.49
|
Add
|
|
007
|
47615-AF
|
BEARING, FLANGE
|
£6.08
|
Add
|
|
008
|
47484-AF
|
BEARING, HEX FLANGE
|
£22.91
|
Add
|
|
009
|
24538-AF
|
BRACKET, FEED PLATE (RH)
|
£6.15
|
Add
|
|
010
|
24539-AF
|
BRACKET, FEED PLATE (LH)
|
£6.15
|
Add
|
|
011
|
63949-AF
|
AXLE W/SPROCKET, 5/8"
|
£120.21
|
Add
|
|
012
|
728-3001
|
RIVET, POP
|
£4.17
|
Add
|
|
013
|
47459-AF
|
SKIRT, 48"
|
£41.18
|
Add
|
|
014
|
47508-AF
|
RETAINER, SKIRT
|
£45.29
|
Add
|
|
015
|
24537-AF
|
FLOW PLATE
|
£20.30
|
Add
|
|
016
|
43009-AF
|
WASHER1-5/8 INCH O D X 25/32 INCH ID
|
£5.26
|
Add
|
|
017
|
47259-AF
|
AGITATOR BLADE
|
£10.28
|
Add
|
|
018
|
47978-AF
|
SCREW, HEX WASH 8-32 x 1/4"LG AF-47978
|
£4.13
|
Add
|
|
019
|
63948-AF
|
AXLE W/SPROCKET. 3/4"
|
£203.25
|
Add
|
|
020
|
46838-AF
|
TUBE SPACER
|
£4.50
|
Add
|
|
021
|
47458-AF
|
SPACER, 1.25" OD X .330" LG.
|
£11.98
|
Add
|
|
022
|
63955-AF
|
HOPPER FRAME ASSEMBLY
|
N/A
|
POA
|
|
023
|
46254-AF
|
WHEEL (OBSOLETE) (OBSOLETE)
|
N/A
|
POA
|
|
024
|
1509-69-AF
|
HEX BOLT, 1/4-20 X 1-3/4" LG.
|
£2.77
|
Add
|
|
026
|
63958-AF
|
LIFT TUBE ASSEMBLY
|
£112.04
|
Add
|
|
027
|
741-0249
|
BEARING
|
£8.44
|
Add
|
|
028
|
47684-AF
|
CHAIN
|
£25.87
|
Add
|
|
029
|
48106-AF
|
Bolt, Shoulder 3/8-16 x 5/8" 48106
|
£6.34
|
Add
|
|
030
|
43082-AF
|
HEX LOCK NUT
|
£4.12
|
Add
|
|
031
|
24648-AF
|
BRACE, CENTER
|
N/A
|
POA
|
|
032
|
47777-AF
|
SPRING, COMPRESSION
|
N/A
|
POA
|
|
033
|
47683-AF
|
TUBE, SPACER
|
N/A
|
POA
|
|
034
|
R19212016-AF
|
WASHER 21/32X1-1/4X16 GA
|
£3.87
|
Add
|
|
035
|
47782-AF
|
SPACER, 1.0" I.D. X 3.25"
|
N/A
|
POA
|
|
036
|
63956-AF
|
DRIVE DISK ASSEMBLY
|
N/A
|
POA
|
|
037
|
24332-AF
|
Spike Disk
|
£11.53
|
Add
|
|
038
|
45100-AF
|
BOLT 1/2-13 X 4" HEX HEAD
|
£4.31
|
Add
|
|
039
|
712-0206
|
NUT
|
£3.42
|
Add
|
|
040
|
R19171616-AF
|
WASHER 17/32X1X16GA
|
£3.76
|
Add
|
|
041
|
43353-AF
|
Lock Washer, 1/2" 43353
|
£3.08
|
Add
|
|
042
|
43019-AF
|
Hex Jam Nut, 1/2-13 Thd. 43019
|
£4.58
|
Add
|
|
043
|
44688-AF
|
Cap, Plastic 44688
|
£4.05
|
Add
|
|
044
|
47679-AF
|
CHAIN COVER
|
£84.79
|
Add
|
|
045
|
43093-AF
|
COTTER PIN
|
£3.11
|
Add
|
