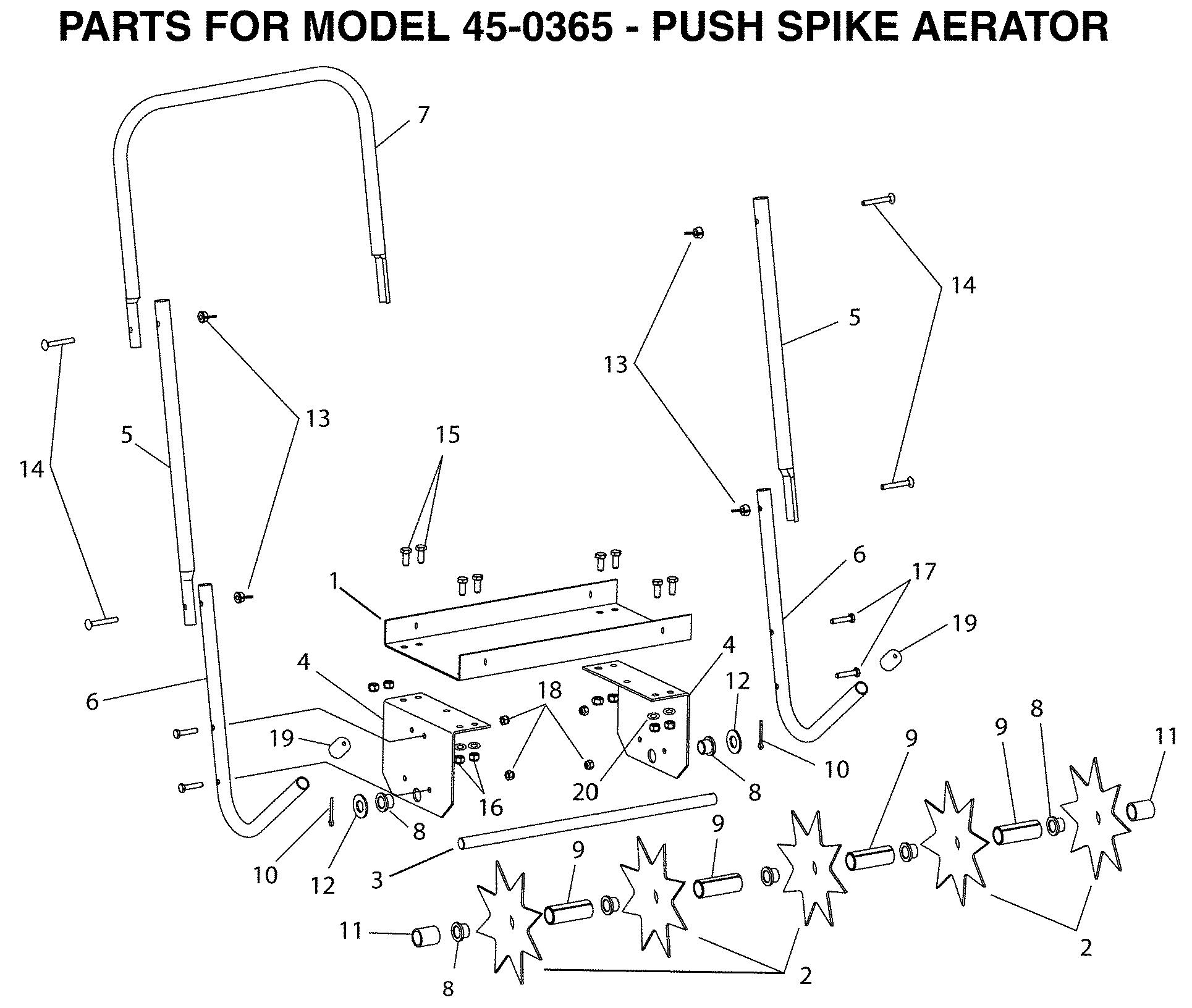

Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
001
|
24719-AF
|
FrameTray
|
N/A
|
POA
|
|
002
|
24332-AF
|
Spike Disk
|
£11.53
|
Add
|
|
003
|
24720-AF
|
Axle
|
N/A
|
POA
|
|
004
|
24369-AF
|
Endplate
|
£22.80
|
Add
|
|
005
|
47925-AF
|
Handle Tube, Straight
|
N/A
|
POA
|
|
006
|
47926-AF
|
Tube, Foot
|
N/A
|
POA
|
|
007
|
47924-AF
|
Handle Tube, Upper
|
N/A
|
POA
|
|
008
|
741-0249
|
BEARING
|
£8.44
|
Add
|
|
009
|
46523-AF
|
Spacer
|
£6.58
|
Add
|
|
010
|
43010-AF
|
COTTER PIN
|
£3.49
|
Add
|
|
011
|
46497-AF
|
Spacer, 1.2" Long 46497
|
£4.35
|
Add
|
|
012
|
R19212113
|
Washer, 5/8" SAE
|
£5.92
|
Add
|
|
013
|
47141M
|
Wingnut, M6
|
N/A
|
POA
|
|
014
|
45039M
|
Carriage Bolt, M6 x 40
|
N/A
|
POA
|
|
015
|
43182M
|
Hex Bolt, M8 x 20
|
N/A
|
POA
|
|
016
|
47810M
|
Nylock Nut, M8
|
N/A
|
POA
|
|
017
|
1509-90M
|
Hex Bolt, M6 x 30
|
N/A
|
POA
|
|
018
|
123810
|
Nut, Hex Nylock - M6
|
N/A
|
POA
|
|
019
|
44688-AF
|
Cap, Plastic 44688
|
£4.05
|
Add
|
|
020
|
43081-AF
|
FLAT WASHER
|
£3.49
|
Add
|
