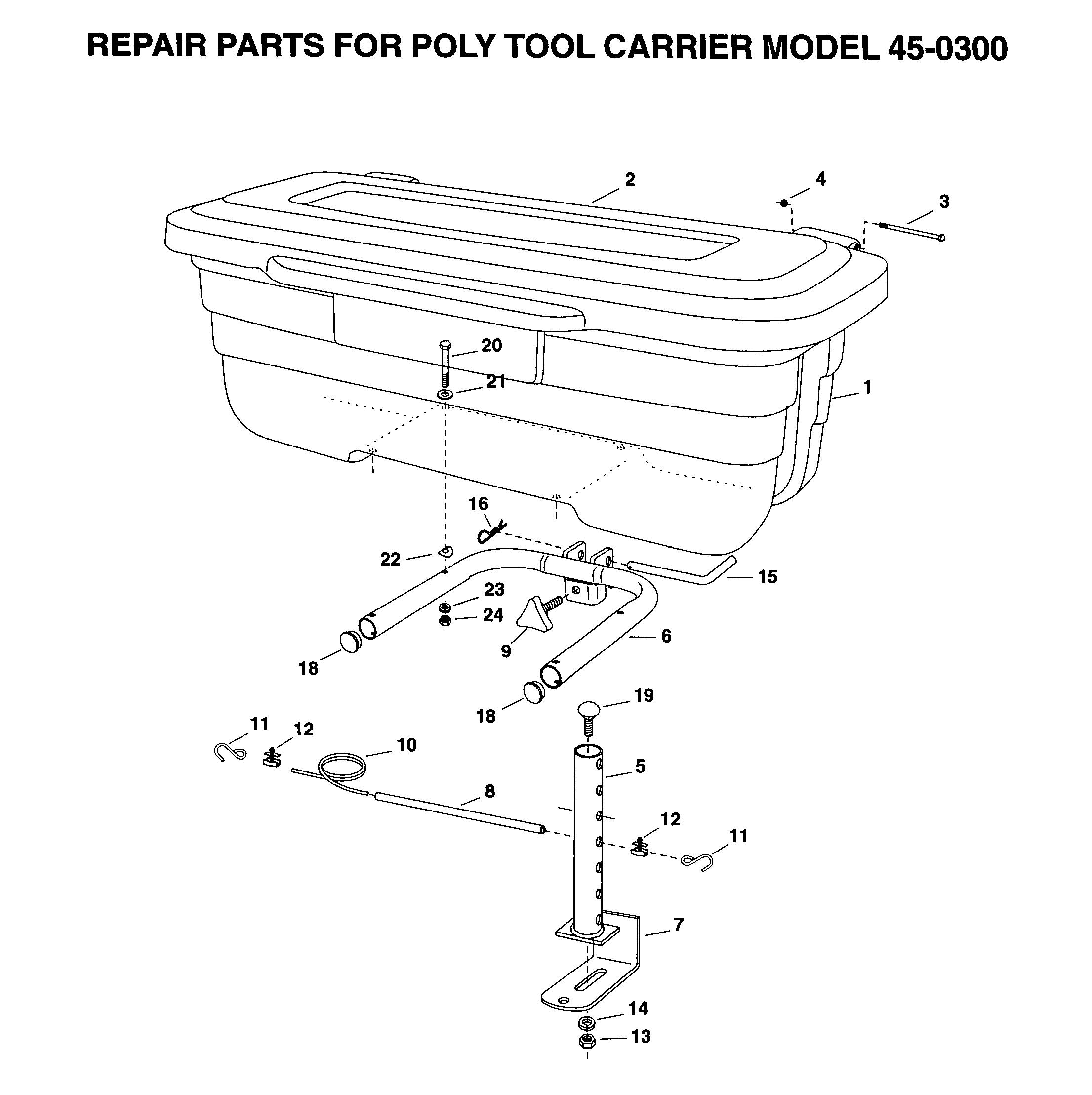

Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
47659-AF
|
OWNERS MANUAL
|
N/A
|
POA
|
|
001
|
47492-AF
|
TOOL BOX
|
N/A
|
POA
|
|
002
|
47666-AF
|
TOOL BOX LID
|
N/A
|
POA
|
|
003
|
47525-AF
|
HEX BOLT, 1/4-20 X 4-1/2" LG.
|
N/A
|
POA
|
|
004
|
712-0291
|
LOCK-NUT
|
£2.77
|
Add
|
|
005
|
63944-AF
|
HITCH TUBE ASSEMBLY
|
N/A
|
POA
|
|
006
|
63943-AF
|
ATTACHMENT TUBE ASSEMBLY
|
N/A
|
POA
|
|
007
|
24637-AF
|
BRACKET, DRAW BAR
|
N/A
|
POA
|
|
008
|
24642-AF
|
TUBE, CABLE
|
N/A
|
POA
|
|
009
|
47667-AF
|
KNOB
|
N/A
|
POA
|
|
010
|
47661-AF
|
WIRE CABLE
|
N/A
|
POA
|
|
011
|
47662-AF
|
"S" HOOK
|
N/A
|
POA
|
|
012
|
47663-AF
|
CLAMP, CABLE
|
N/A
|
POA
|
|
013
|
712-0206
|
NUT
|
£3.42
|
Add
|
|
014
|
43353-AF
|
Lock Washer, 1/2" 43353
|
£3.08
|
Add
|
|
015
|
46065-AF
|
PIN, CHANNEL PIVOT AF-46065
|
£19.53
|
Add
|
|
016
|
43343-AF
|
PIN COTTER
|
£4.20
|
Add
|
|
017
|
725-0157
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
018
|
47674-AF
|
PLUG-VENT AF-47674
|
£3.97
|
Add
|
|
019
|
47660-AF
|
CARRIAGE BOLT, 1/2-13 X 1-1/2"
|
N/A
|
POA
|
|
020
|
46699-AF
|
BOLT
|
£3.49
|
Add
|
|
021
|
43088-AF
|
FLAT WASHER
|
£3.11
|
Add
|
|
022
|
44695-AF
|
Washer, Bowed 44695
|
£4.05
|
Add
|
|
023
|
43177-AF
|
Washer, Lock 1/4" I.D.* 43177
|
£3.08
|
Add
|
|
024
|
43178-AF
|
Hex Nut, 1/4-20 Thread
|
£3.37
|
Add
|
