Parts list

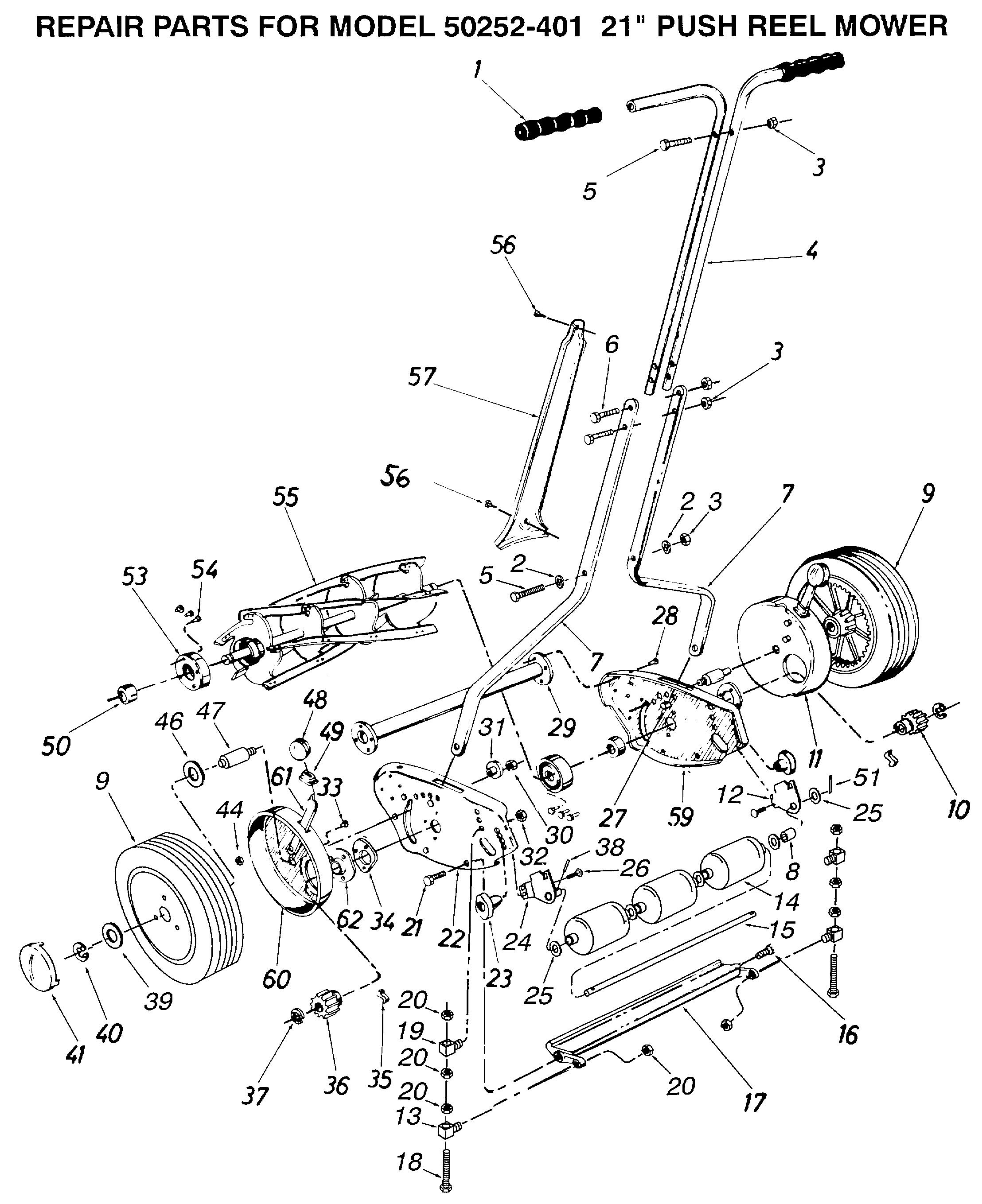

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
46445-AF
|
OWNERS MANUAL
|
N/A
|
POA
|
|
001
|
46446-AF
|
GRIP
|
N/A
|
POA
|
|
002
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
003
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
004
|
46436-AF
|
UPPER HANDLE
|
N/A
|
POA
|
|
005
|
43224-AF
|
BOLT
|
£5.85
|
Add
|
|
006
|
44292-AF
|
Bolt, Hex 5/16-18 x 2-1/2" Lg. 44179
|
£4.05
|
Add
|
|
007
|
46437-AF
|
LOWER HANDLE
|
N/A
|
POA
|
|
008
|
46679-AF
|
SPACER, TUBE
|
N/A
|
POA
|
|
009
|
46552-AF
|
WHEEL ASSEMBLY
|
N/A
|
POA
|
|
010
|
0425-000
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
011
|
2118-82
|
GEAR HOUSING ASS'Y. - R.H.
|
N/A
|
POA
|
|
012
|
2609-182
|
ROLLER BRACKET, R.H.
|
N/A
|
POA
|
|
013
|
46330-AF
|
TRUNNION, ADJ. SCREW
|
N/A
|
POA
|
|
014
|
1658-12
|
ROLLER
|
N/A
|
POA
|
|
015
|
AF-1632-84
|
ROLLER SHAFT
|
£73.26
|
Add
|
|
016
|
1509-86
|
SCREW, CUTTER BAR (L.H. THD.)
|
N/A
|
POA
|
|
017
|
63223-AF
|
CUTTER BAR ASSEMBLY
|
N/A
|
POA
|
|
018
|
46331-AF
|
SCREW, ADJUSTMENT
|
N/A
|
POA
|
|
019
|
46329-AF
|
TRUNNION, ADJUSTMENT SCREW
|
N/A
|
POA
|
|
020
|
712-0241
|
HEX NUT 3/8-24
|
£2.79
|
Add
|
|
021
|
AF-455
|
SCREW
|
£17.75
|
Add
|
|
022
|
3111-131
|
END PLATE ASS'Y.--L.H.
|
N/A
|
POA
|
|
023
|
1643-23
|
ROLLER ADJUSTMENT KNOB
|
N/A
|
POA
|
|
024
|
2132-44
|
ROLLER BRACKET, L.H.
|
N/A
|
POA
|
|
025
|
R19171616-AF
|
WASHER 17/32X1X16GA
|
£3.76
|
Add
|
|
026
|
43079-AF
|
CARR, BOLT 5/16-18 X 1
|
£3.22
|
Add
|
|
027
|
0010-000
|
TRUNNION (DNR)
|
£3.59
|
Add
|
|
028
|
44060-AF
|
RIVET 3/16 X 3/8 PLTD
|
£3.28
|
Add
|
|
029
|
1112-15
|
SPACER TUBE ASS'Y.
|
N/A
|
POA
|
|
030
|
44738-AF
|
Nut, Hex Lock 5/16-24 "Unitork" 44738
|
£3.91
|
Add
|
|
031
|
1657-19
|
STEP BUSHING
|
N/A
|
POA
|
|
032
|
1038-AF
|
Nut, Nylock 3/8-24 Thread 1038
|
£3.48
|
Add
|
|
033
|
1509-38
|
BOLT(10-32 X 3/8 HEX HD.)
|
N/A
|
POA
|
|
034
|
1624-138
|
RETAINER
|
£3.59
|
Add
|
|
035
|
0323-000
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
036
|
428-AF
|
PINION GEAR - L.H. 0428-000 (OBSOLETE)
|
N/A
|
POA
|
|
037
|
AF-1650-21
|
RETAINING RING
|
£2.61
|
Add
|
|
038
|
1548-7-AF
|
ROLL PIN 1548-007
|
£3.90
|
Add
|
|
039
|
1540-118-AF
|
WASHER, FLAT 1-1/4x17/32x1/16 AF-1540-118
|
N/A
|
POA
|
|
040
|
1650-1
|
RETAINING RING
|
N/A
|
POA
|
|
041
|
2674-32-AF
|
Hub Cap 2674-32
|
N/A
|
POA
|
|
044
|
1534-8-AF
|
HEX LOCK NUT 10-32 PL AF-1534-8
|
£2.64
|
Add
|
|
046
|
44008-AF
|
WASHER
|
£3.24
|
Add
|
|
047
|
1631-51
|
AXLE
|
N/A
|
POA
|
|
048
|
1643-60
|
KNOB
|
N/A
|
POA
|
|
049
|
1622-50
|
DUST COVER
|
N/A
|
POA
|
|
050
|
44232-AF
|
BALL BEARING
|
£35.66
|
Add
|
|
051
|
142-AF
|
COTTER PIN(1/8 X 5/8)
|
N/A
|
POA
|
|
053
|
1629-28-AF
|
RETAINER 1629-028
|
N/A
|
POA
|
|
054
|
1530-20
|
RIVET, 3/16 DIA. X 13/32" LG.
|
N/A
|
POA
|
|
055
|
3135-36
|
21" REEL ASS'Y.
|
N/A
|
POA
|
|
056
|
44486-AF
|
SCREW, HEX HEAD AF-44486
|
£3.91
|
Add
|
|
057
|
3622-54
|
HANDLE PANEL
|
N/A
|
POA
|
|
059
|
3111-130
|
END PLATE ASS'Y.--R.H.
|
N/A
|
POA
|
|
060
|
2118-81
|
GEAR HOUSING ASS'Y. - L.H.
|
N/A
|
POA
|
|
061
|
1155-47
|
ASS'Y. SPRING
|
N/A
|
POA
|
|
062
|
1629-41
|
PINION HOUSING
|
N/A
|
POA
|
