FG321_2900

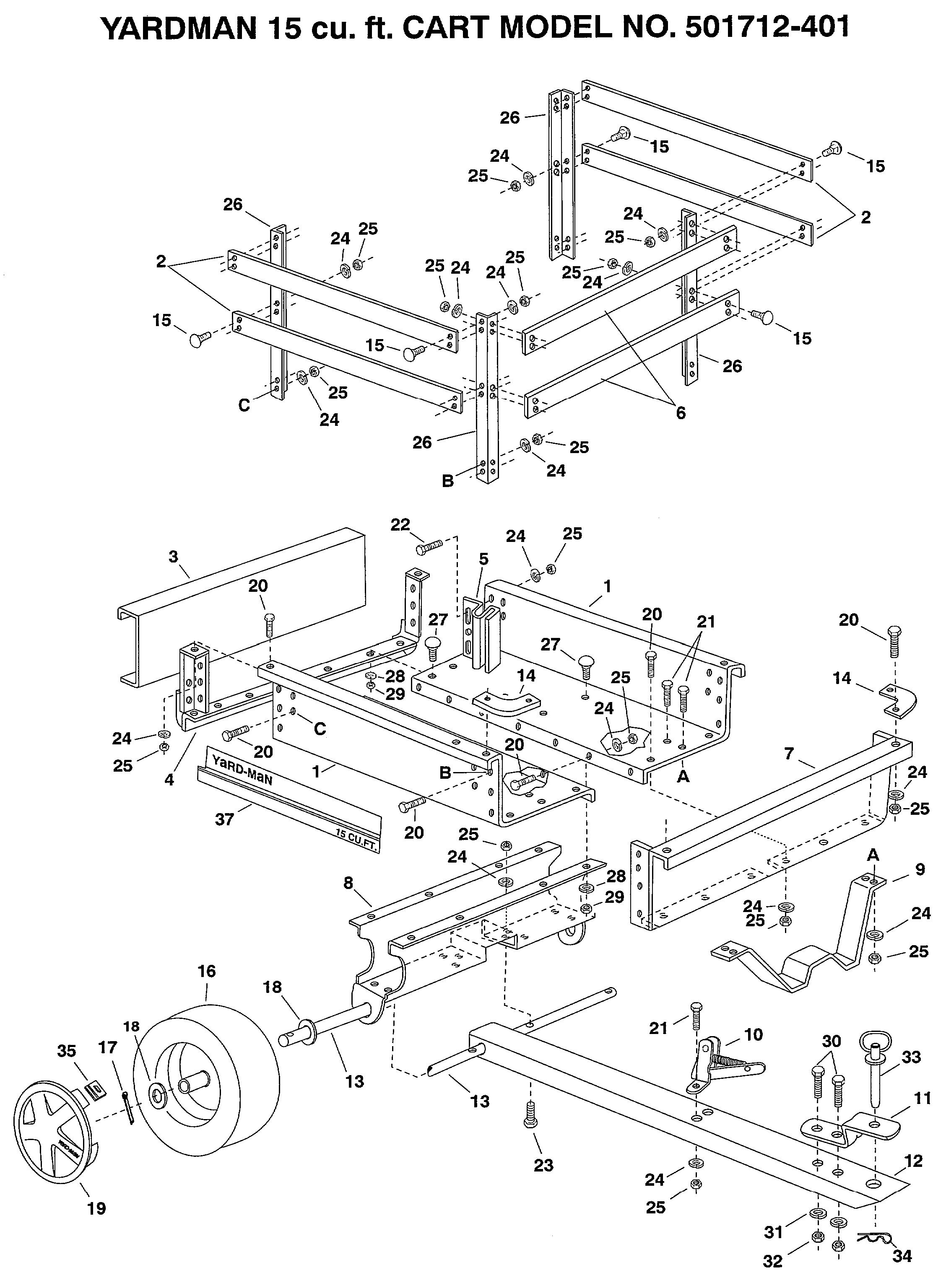

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG321_2900

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
46235-AF OWNER'S MANUAL N/A POA
001 23985-AF Cart Body £171.98 Add
002 23088-AF BOARD, SIDES 1X3X46-1/2" £56.28 Add
003 23502-AF Tailgate 23502 £107.96 Add
004 62458-AF Tailgate Reinforcement Bracket 62458 £98.48 Add
005 23548-AF Tailgate Guide 23548 £11.15 Add
006 23089-AF BOARD, FRONT 1X3X31-1/2" N/A POA
007 23492-AF Front Panel 23492 £96.74 Add
008 23507-AF Wheel Support 23507 £240.05 Add
009 23297-AF LATCH STAND BRACKET £56.74 Add
010 62455-AF ASS`Y, LATCH LOCK AF-62455 £53.63 Add
011 23014-AF HITCH BRACKET £31.67 Add
012 23988-AF DRAW BAR TONGUE (368) N/A POA
013 23299-AF WHEEL-AXLE 1" DIA. £125.11 Add
014 23484-AF Front Corner Cap 23484 £21.81 Add
015 43176-AF BOLT, CARRIAGE 1/4-20X1" N/A POA
016 46112-AF WHEEL, 16-6.5 X 8.00 N/A POA
017 43093-AF COTTER PIN £3.11 Add
018 43601-AF WASHER £8.99 Add
019 734-1788A HUBCAP:8"DIA:RADYELLOW W/SPRIG £27.30 Add
020 43175-AF Hex Bolt, 1/4-20 x 1/2" * 43175 £4.15 Add
021 43866-AF Bolt, Hex 1/4-20 x 5/8" Lg. Gr. 5 43866 £3.48 Add
022 43012-AF BOLT £3.32 Add
023 1509-69-AF HEX BOLT, 1/4-20 X 1-3/4" LG. £2.77 Add
024 43177-AF Washer, Lock 1/4" I.D.* 43177 £3.08 Add
025 43178-AF Hex Nut, 1/4-20 Thread £3.37 Add
026 23086-AF ANGLE. BRACKET-R.H. N/A POA
027 43814-AF SLOTTED TRUSS HEADBOLT(5/16-18x3/4) £3.11 Add
028 43086-AF Lock Washer, 5/16" 43086 £3.48 Add
029 43083-AF HEX NUT £3.32 Add
030 43001-AF HEX BOLT (RED) £3.49 Add
031 736-0169 L. WASHER £2.89 Add
032 712-0798 HEX. NUT £7.61 Add
033 43884-AF Hitch Pin 43884 £42.16 Add
034 43343-AF PIN COTTER £4.20 Add
035 727-0425A SPRING CLIP £2.98 Add
036 46109-AF LABEL, "YARDMAN" L.H. (NOT SHOWN) N/A POA
037 46110-AF LABEL, "YARDMAN" R.H. N/A POA
