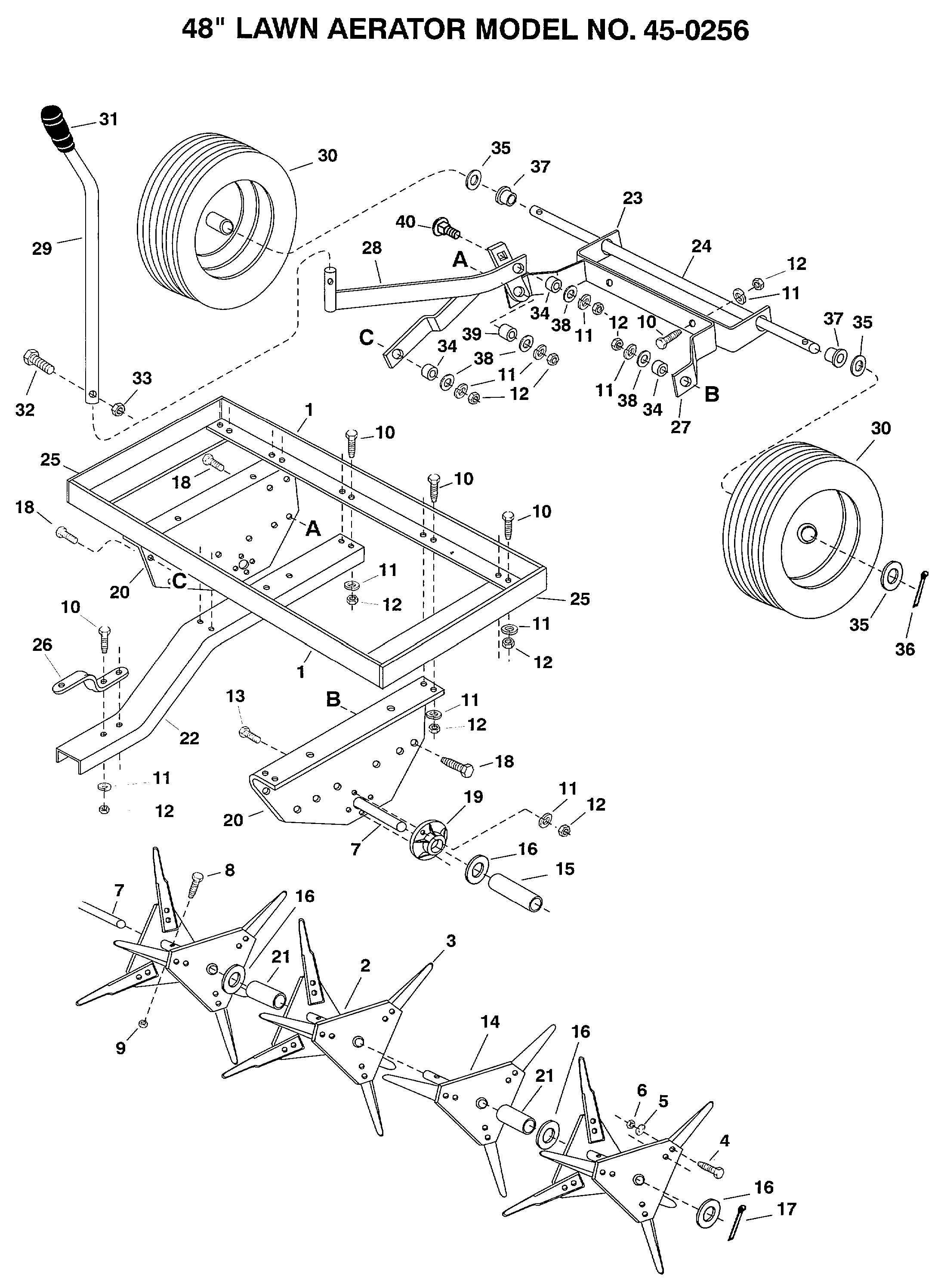

Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
46525-AF
|
OWNERS MANUAL
|
N/A
|
POA
|
|
001
|
24117-AF
|
FRAME ANGLE (LONG)
|
N/A
|
POA
|
|
002
|
63256-AF
|
ASS`Y, SPOOL AF-63256
|
N/A
|
POA
|
|
003
|
23084-AF
|
MESSERFLÜGEL 23084
|
£12.88
|
Add
|
|
004
|
43182-AF
|
Hex Bolt, 5/16" x 3/4" 43182
|
£4.31
|
Add
|
|
005
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
006
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
007
|
24118-AF
|
SHAFT
|
N/A
|
POA
|
|
008
|
1509-090
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
009
|
712-0291
|
LOCK-NUT
|
£2.77
|
Add
|
|
010
|
43001-AF
|
HEX BOLT (RED)
|
£3.49
|
Add
|
|
011
|
736-0169
|
L. WASHER
|
£2.89
|
Add
|
|
012
|
43082-AF
|
HEX LOCK NUT
|
£4.12
|
Add
|
|
013
|
43407-AF
|
Bolt, Hex 3/8-16 x 3/4" Lg. * 43407
|
£3.91
|
Add
|
|
014
|
63258-AF
|
ASS`Y, SPOOL COMPL. (SINGLE) AF-63258
|
£1.76
|
Add
|
|
015
|
46524-AF
|
SPACER, TUBE 3.13" LG.
|
N/A
|
POA
|
|
016
|
44008-AF
|
WASHER
|
£3.24
|
Add
|
|
017
|
43093-AF
|
COTTER PIN
|
£3.11
|
Add
|
|
018
|
43087-AF
|
Hex Bolt, 3/8-16 x 1-1/4" Long 43087
|
£4.58
|
Add
|
|
019
|
45148-AF
|
Hub, Spike Disk 45148
|
£7.23
|
Add
|
|
020
|
24102-AF
|
FRAME SIDE BRACKET
|
N/A
|
POA
|
|
021
|
46523-AF
|
Spacer
|
£6.58
|
Add
|
|
022
|
24103-AF
|
TONGUE
|
£41.74
|
Add
|
|
023
|
24121-AF
|
AXLE BRACKET (LOWER)
|
N/A
|
POA
|
|
024
|
24119-AF
|
AXLE
|
N/A
|
POA
|
|
025
|
23976-AF
|
RAHMEN KURZ 092.34.172
|
£18.72
|
Add
|
|
026
|
23687-AF
|
Hitch Bracket 23687
|
£33.95
|
Add
|
|
027
|
63268-AF
|
UPPER AXLE FRAME ASSEMBLY
|
N/A
|
POA
|
|
028
|
62442-AF
|
Lift arm 092.34.128
|
£126.05
|
Add
|
|
029
|
23458-AF
|
Lever 092.34.129
|
N/A
|
POA
|
|
030
|
43756-AF
|
Wheel assy. 092.34.130
|
£107.05
|
Add
|
|
031
|
43362-AF
|
HANDLE GRIP AF 43362
|
£4.50
|
Add
|
|
032
|
43840-AF
|
HEX BOLT
|
£3.49
|
Add
|
|
033
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
034
|
23519-AF
|
SLEEVE 092.34.133
|
£11.76
|
Add
|
|
035
|
43754-AF
|
WASHER 21 092.34.134
|
£4.02
|
Add
|
|
036
|
43010-AF
|
COTTER PIN
|
£3.49
|
Add
|
|
037
|
741-0249
|
BEARING
|
£8.44
|
Add
|
|
038
|
43070-AF
|
Washer, 3/8"
|
£3.91
|
Add
|
|
039
|
23537-AF
|
SPACER, 13/32 I.D. X 9/16" O.D. X 19/32" LG.
|
£9.90
|
Add
|
|
040
|
710-0431
|
SREW: M5X20-8.8:DIN 603 092.34.137
|
£14.89
|
Add
|
