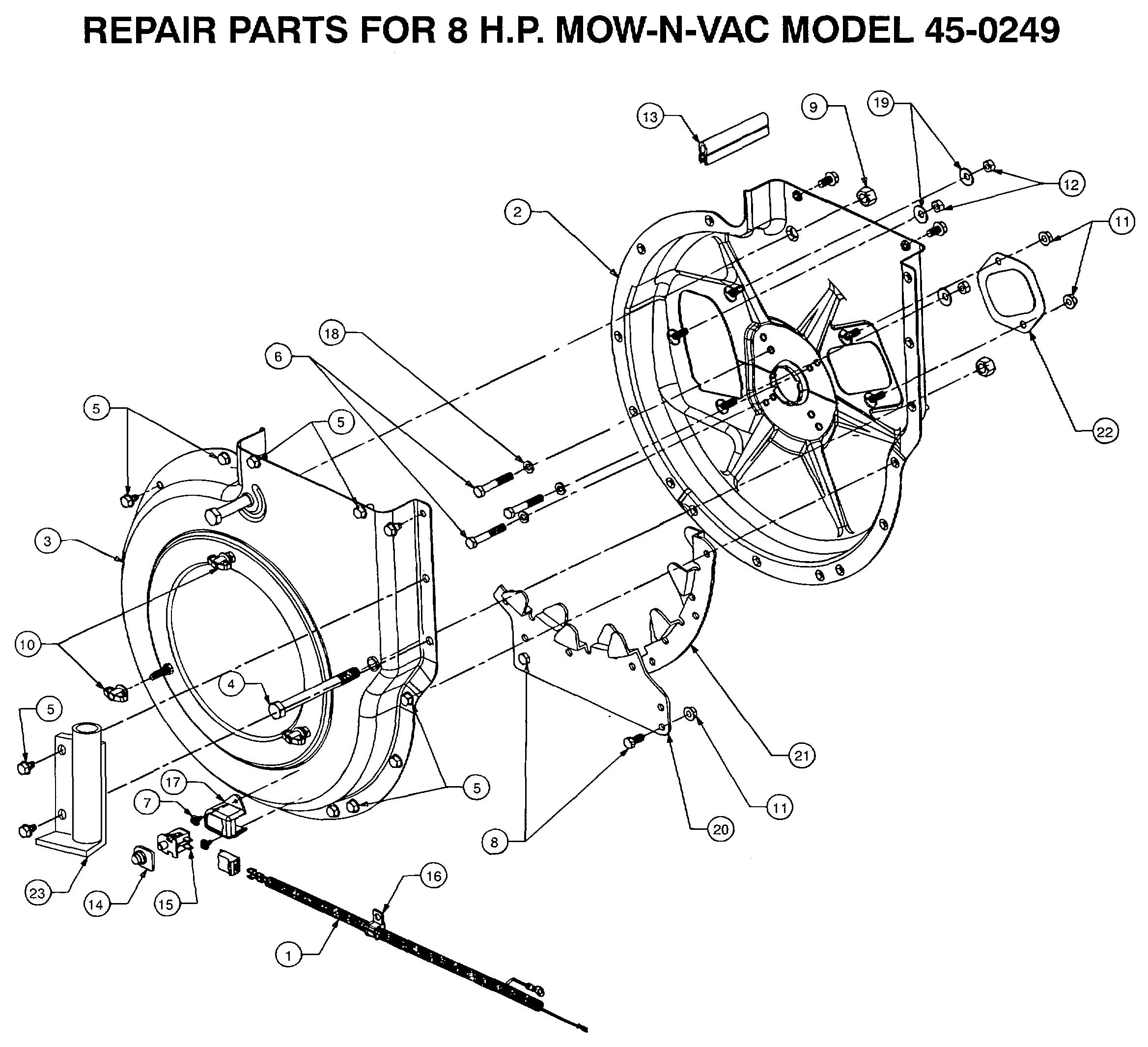

Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
001
|
629-0241
|
HARNESS, WIRE
|
£33.76
|
Add
|
|
002
|
681-0059
|
HOUSING ASS'Y. INNER
|
£158.12
|
Add
|
|
003
|
681-0060638
|
HOUSING ASS'Y. OUTER 681-0060
|
£236.59
|
Add
|
|
004
|
710-0382
|
HHCS:1/2-13:5.00 GR5:STD
|
£18.17
|
Add
|
|
005
|
46703-AF
|
SCREW, SELF TAP 5/16-18 X 3/4" (SEE ALSO ITEM #5 PAGE 38)
|
N/A
|
POA
|
|
006
|
710-0772
|
HEX BOLT
|
£11.63
|
Add
|
|
007
|
710-1268
|
SCREW HEX WASHER HD TAPP
|
£3.26
|
Add
|
|
008
|
43182-AF
|
Hex Bolt, 5/16" x 3/4" 43182
|
£4.31
|
Add
|
|
009
|
43262-AF
|
NUT 1/2-13 HEX LOCK
|
£6.20
|
Add
|
|
010
|
712-0421
|
KNOB
|
£6.43
|
Add
|
|
011
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
012
|
712-3010
|
NUT 5/16 x 18
|
£2.77
|
Add
|
|
013
|
723-0438
|
Seal, Rubber
|
£15.73
|
Add
|
|
014
|
725-1700
|
Switch Cover
|
£15.59
|
Add
|
|
015
|
725-3166
|
SWITCH SNAP MOUNT CLOSED/GREY
|
£15.69
|
Add
|
|
016
|
726-0272
|
Clamp
|
£2.98
|
Add
|
|
017
|
731-1613
|
Cover, Switch
|
£14.13
|
Add
|
|
018
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
019
|
736-0242
|
BELL WASHER
|
£3.72
|
Add
|
|
020
|
781-0598
|
BLADE, FLAIL HOUSING
|
£53.43
|
Add
|
|
021
|
781-0599
|
BLADE, FLAIL HOUSING
|
£65.76
|
Add
|
|
022
|
781-0627
|
Cover, Chipper
|
£6.84
|
Add
|
|
023
|
63226-AF
|
Hose Hanger Bracket Ass'y. (Ref. item #16 on page 22.)
|
N/A
|
POA
|
