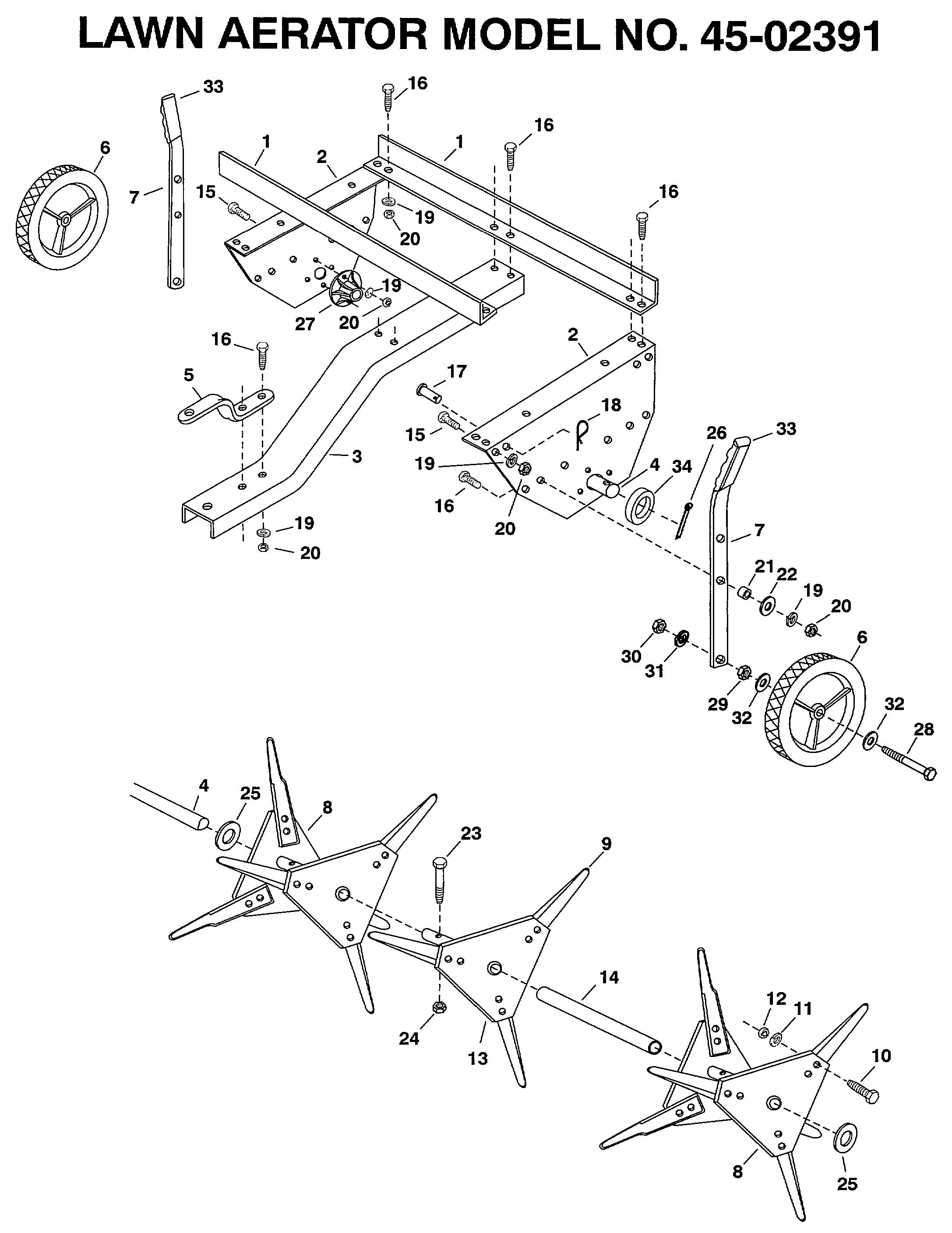

FG321_1800

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
	46755-AF	OWNERS MANUAL	N/A	POA
001	24109-AF	FRAME ANGLE	N/A	POA
002	24102-AF	FRAME SIDE BRACKET	N/A	POA
003	24103-AF	TONGUE	£41.74	Add
004	24169-AF	SHAFT - REPLACES #24107 SHAFT. REQUIRES (2) #46754 SPACERS WHEN USED TO REPLACE #24107 SHAFT. (SEE	N/A	POA
005	23687-AF	Hitch Bracket 23687	£33.95	Add
006	46254-AF	WHEEL (OBSOLETE) (OBSOLETE)	N/A	POA
007	24034-AF	TRANSPORT BAR	N/A	POA
008	63256-AF	ASS`Y, SPOOL AF-63256	N/A	POA
009	23084-AF	MESSERFLÜGEL 23084	£12.88	Add
010	43182-AF	Hex Bolt, 5/16" x 3/4" 43182	£4.31	Add
011	43086-AF	Lock Washer, 5/16" 43086	£3.48	Add
012	712-0158	NUT, HEX CENTER LOCK, 5/16-18	£9.35	Add
013	63258-AF	ASS`Y, SPOOL COMPL. (SINGLE) AF-63258	£1.76	Add
014	46500-AF	SPACER TUBE	N/A	POA
015	43407-AF	Bolt, Hex 3/8-16 x 3/4" Lg. * 43407	£3.91	Add
016	43001-AF	HEX BOLT (RED)	£3.49	Add
017	44044-AF	CLEVIS PIN 3/8" X 3/4" LG.	N/A	POA
018	43055-AF	COTTER PIN	£6.04	Add
019	736-0169	L. WASHER	£2.89	Add
020	43082-AF	HEX LOCK NUT	£4.12	Add
021	23519-AF	SLEEVE 092.34.133	£11.76	Add
022	43070-AF	Washer, 3/8"	£3.91	Add
023	1509-090	NO LONGER AVAILABLE	N/A	POA
024	712-0291	LOCK-NUT	£2.77	Add
025	44008-AF	WASHER	£3.24	Add
026	714-0121	PIN-COTTER	£10.72	Add
027	45148-AF	Hub, Spike Disk 45148	£7.23	Add
028	46286-AF	HEX BOLT, 1/2-13 X 3" LG.	N/A	POA
029	712-0206	NUT	£3.42	Add
030	43019-AF	Hex Jam Nut, 1/2-13 Thd. 43019	£4.58	Add
031	43353-AF	Lock Washer, 1/2" 43353	£3.08	Add
032	R19171616-AF	WASHER 17/32X1X16GA	£3.76	Add
033	44482-AF	Grip, Handle 44482	£7.23	Add
034	46754-AF	SPACER, 1"ID X .25" LG 46754	£9.82	Add
