Parts list

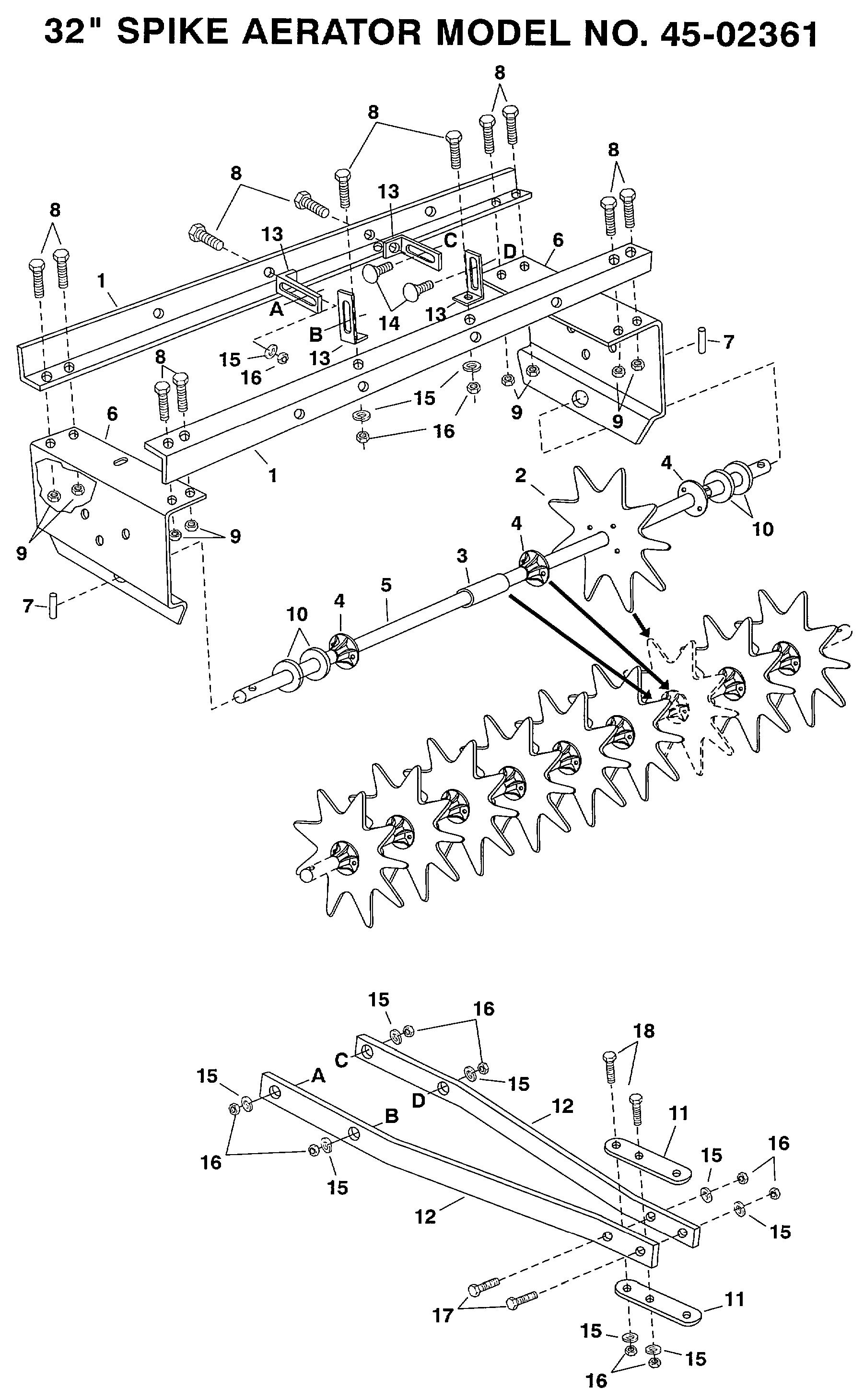

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
46498-AF
|
OWNER'S MANUAL
|
N/A
|
POA
|
|
001
|
24012-AF
|
ANGLE FRAME
|
N/A
|
POA
|
|
002
|
23900-AF
|
Disk, Spike 23900
|
£20.49
|
Add
|
|
003
|
46499-AF
|
SPACER, 2.50" LG. (SHORT)
|
£6.39
|
Add
|
|
004
|
45148-AF
|
Hub, Spike Disk 45148
|
£7.23
|
Add
|
|
005
|
24013-AF
|
AXLE
|
N/A
|
POA
|
|
006
|
23903-AF
|
COVER 23903
|
£27.94
|
Add
|
|
007
|
45187-AF
|
PIN-COTTER 45187
|
£4.31
|
Add
|
|
008
|
43182-AF
|
Hex Bolt, 5/16" x 3/4" 43182
|
£4.31
|
Add
|
|
009
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
010
|
1540-162-AF
|
Washer, Flat 1/2" 1540-162
|
£6.62
|
Add
|
|
011
|
23981-AF
|
HITCH BRACKET
|
£9.80
|
Add
|
|
012
|
23914-AF
|
Hitch Mount Arm 23914
|
£35.73
|
Add
|
|
013
|
23442-AF
|
BRACKET HITCH ARM MOUNT
|
£21.43
|
Add
|
|
014
|
44326-AF
|
BOLT, CARR 5/16-18x1" PLTD GR5 AF-44326
|
£3.49
|
Add
|
|
015
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
016
|
43083-AF
|
HEX NUT
|
£3.32
|
Add
|
|
017
|
43684-AF
|
BOLT, HEX 5/16-18 X 1-1/4
|
N/A
|
POA
|
|
018
|
44180-AF
|
BOLT HEX HEAD
|
£4.92
|
Add
|
