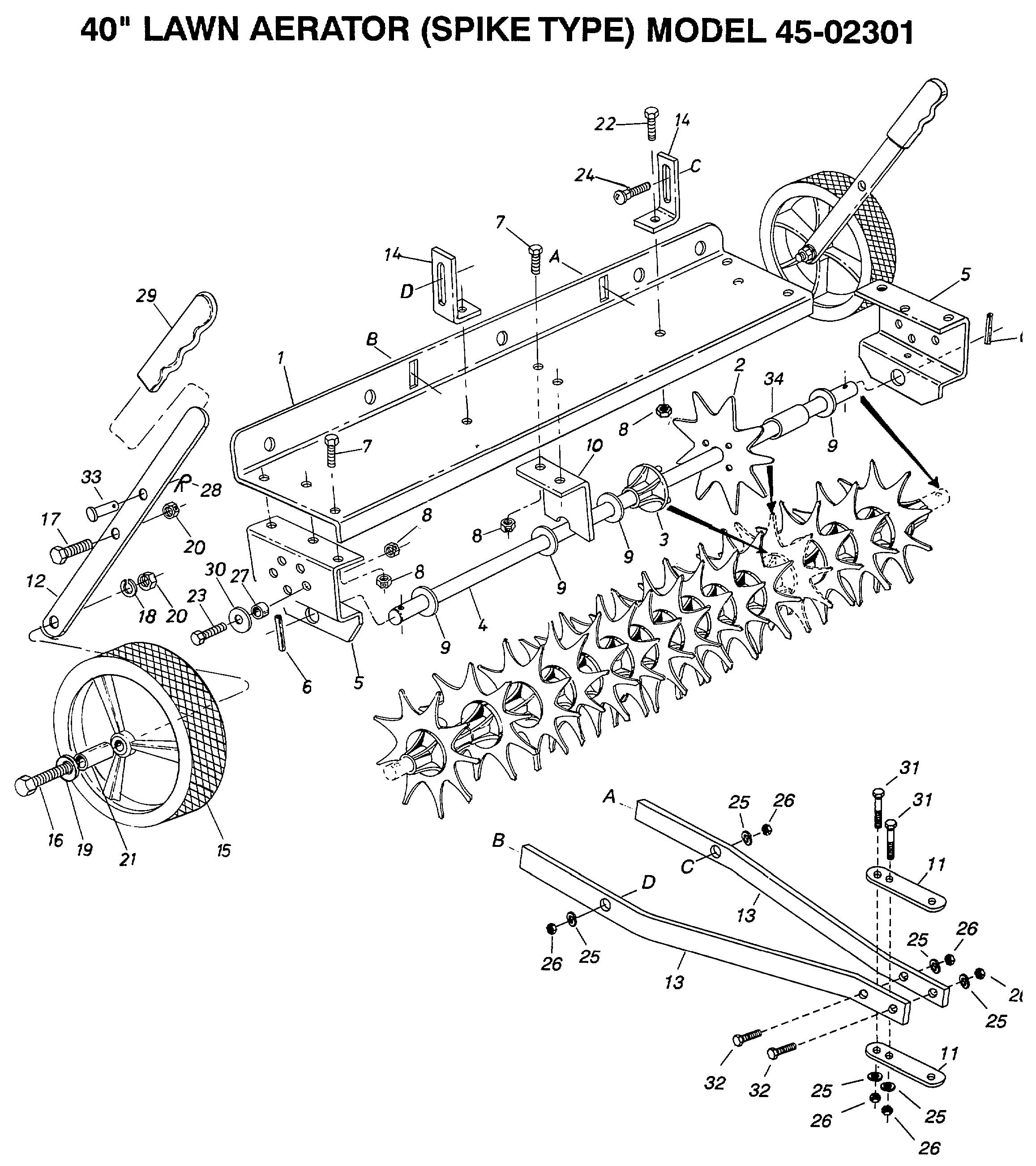

FG321_1300

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
	46490-AF	OWNERS MANUAL	N/A	POA
001	23901-AF	CAM ASSY. CONTROL 23901	N/A	POA
002	23900-AF	Disk, Spike 23900	£20.49	Add
003	45148-AF	Hub, Spike Disk 45148	£7.23	Add
004	23902-AF	AXLE, SPIKE AERATOR 23902	N/A	POA
005	23903-AF	COVER 23903	£27.94	Add
006	45187-AF	PIN-COTTER 45187	£4.31	Add
007	43182-AF	Hex Bolt, 5/16" x 3/4" 43182	£4.31	Add
008	712-0158	NUT, HEX CENTER LOCK, 5/16-18	£9.35	Add
009	43009-AF	WASHER1-5/8 INCH O D X 25/32 INCH ID	£5.26	Add
010	23904-AF	AXLE-EDGER 23904	N/A	POA
011	23981-AF	HITCH BRACKET	£9.80	Add
012	23905-AF	ARM, BAG MT LG 23905	£18.29	Add
013	23914-AF	Hitch Mount Arm 23914	£35.73	Add
014	23442-AF	BRACKET HITCH ARM MOUNT	£21.43	Add
015	44238-AF	WHEEL ASSY 44238	£41.00	Add
016	43432-AF	Bolt, Hex 3/8-16 x 2-1/2" Lg. 43432	£4.05	Add
017	43001-AF	HEX BOLT (RED)	£3.49	Add
018	736-0169	L. WASHER	£2.89	Add
019	43070-AF	Washer, 3/8"	£3.91	Add
020	43082-AF	HEX LOCK NUT	£4.12	Add
021	23906-AF	BEARING,JOURNAL 23906	£4.05	Add
022	43182-AF	Hex Bolt, 5/16" x 3/4" 43182	£4.31	Add
023	43063-AF	BOLT	£4.12	Add
024	44326-AF	BOLT, CARR 5/16-18x1" PLTD GR5 AF-44326	£3.49	Add
025	43086-AF	Lock Washer, 5/16" 43086	£3.48	Add
026	43083-AF	HEX NUT	£3.32	Add
027	23625-AF	Spacer, 1/4" Long 23625	£10.35	Add
028	43055-AF	COTTER PIN	£6.04	Add
029	43943-AF	Handle Grip 43943	£8.46	Add
030	43081-AF	FLAT WASHER	£3.49	Add
031	44180-AF	BOLT HEX HEAD	£4.92	Add
032	43684-AF	BOLT, HEX 5/16-18 X 1-1/4	N/A	POA
033	44044-AF	CLEVIS PIN 3/8" X 3/4" LG.	N/A	POA
034	46497-AF	Spacer, 1.2" Long 46497	£4.35	Add
