FG321_0700

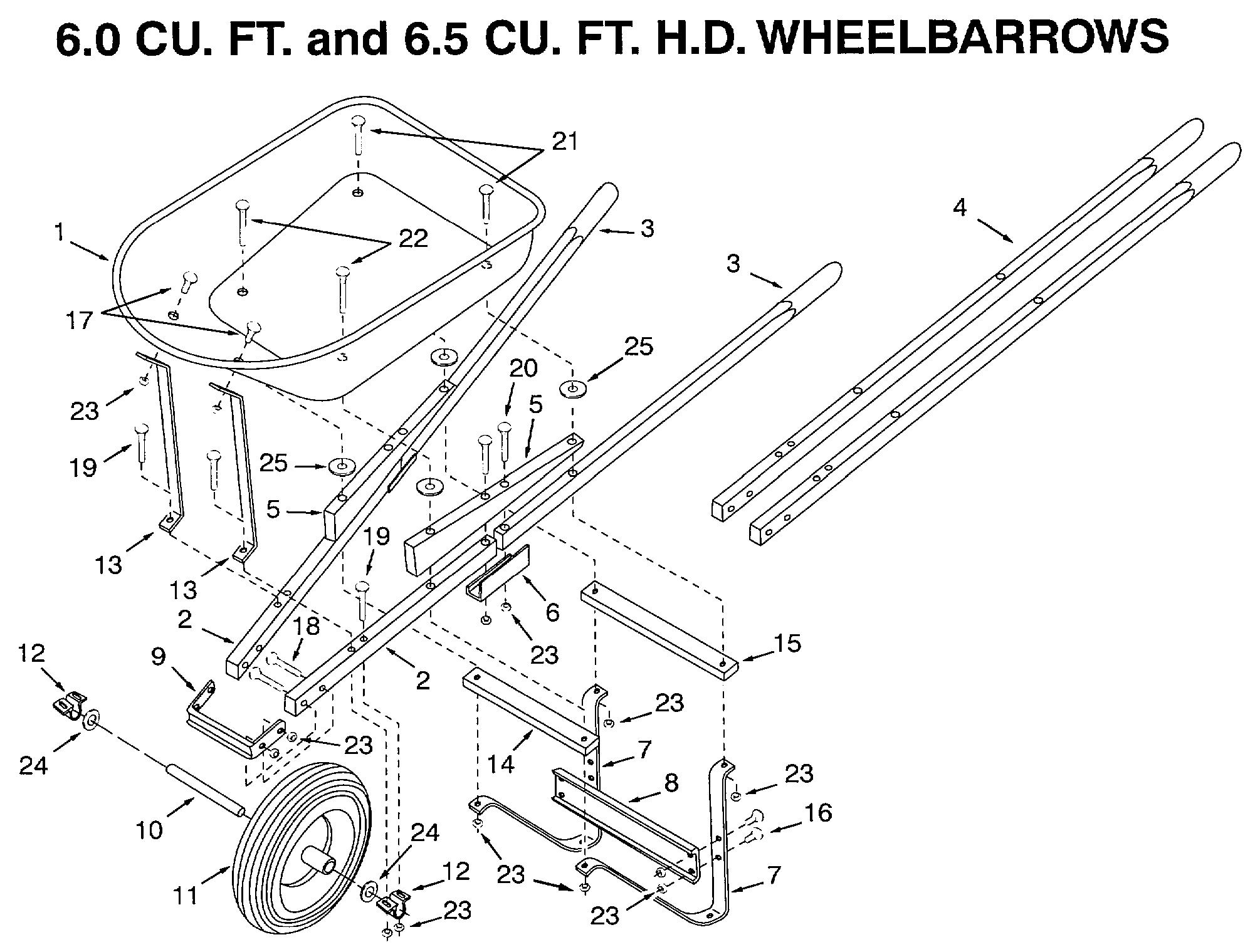

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	44966-AF	TRAY, POLY	N/A	POA
001	44188-AF	TRAY, STEEL	N/A	POA
001	44201-AF	TRAY, POLY	N/A	POA
002	132050	FRONT HANDLE	N/A	POA
003	132241	REAR HANDLE	N/A	POA
004	132266	HANDLE, ONE PIECE	N/A	POA
005	132753	WEDGE	N/A	POA
006	664417	HANDLE BRACKET	N/A	POA
007	664367	LEG	N/A	POA
008	813139	LEG BRACE	£10.03	Add
009	664383	NOSE BRACE	N/A	POA
010	102483	AXLE	N/A	POA
011	69599-AF	WHEEL ASSY	£257.23	Add
012	26179-AF	AXLE BRACKET	N/A	POA
013	813121	TRAY BRACE	N/A	POA
014	73379-AF	CROSS BRACE, FRONT	N/A	POA
015	73387-AF	CROSS BRACE, REAR	N/A	POA
016	46587-AF	BOLT, CARRIAGE 5/16-18 X 1/2" LG.	N/A	POA
017	43080-AF	CARRIAGE BOLT	£3.49	Add
018	46588-AF	BOLT, CARRIAGE 5/16-18 X 2-1/4" LG.	N/A	POA
019	46324-AF	LINSEN-SCHR. 5/16x2-1/2 46324	£3.91	Add
020	46589-AF	BOLT, CARRIAGE 5/16-18 X 3-1/4" LG.	N/A	POA
021	46590-AF	BOLT, CARRIAGE 5/16-18 X 3-3/4" LG.	N/A	POA
022	46591-AF	BOLT, CARRIAGE 5/16-18 X 6" LG.	N/A	POA
023	46584-AF	Nut, Whiz Lock 5/16-18 46584	£3.91	Add
023	46584-AF	Nut, Whiz Lock 5/16-18 46584	£3.91	Add
024	R19212113	Washer, 5/8" SAE	£5.92	Add
025	141-AF	Washer, Flat 1-1/2" x .375" x .062" 141	£3.91	Add
