Parts list

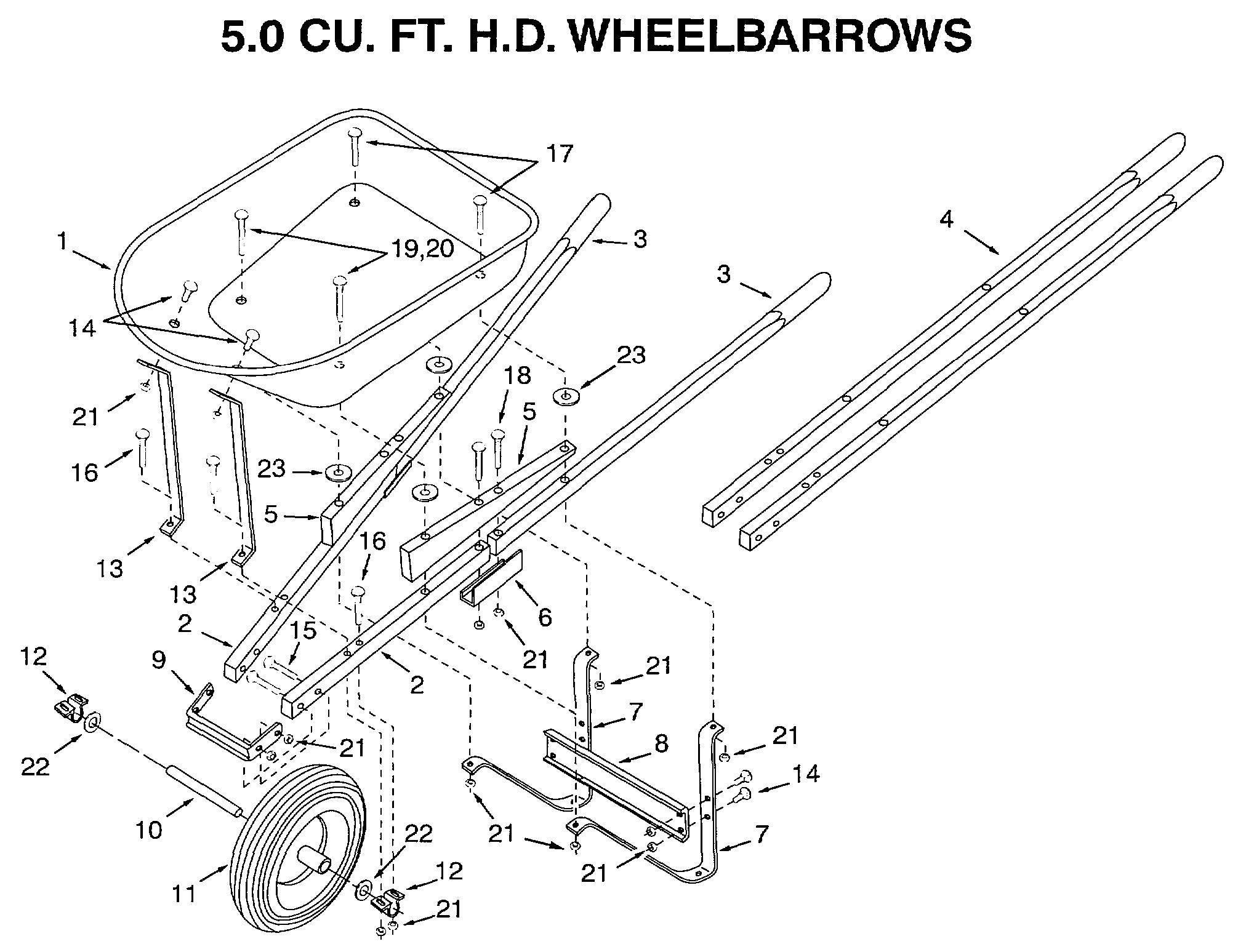

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
001
|
44965-AF
|
TRAY, POLY
|
N/A
|
POA
|
|
001
|
44184-AF
|
TRAY, STEEL
|
N/A
|
POA
|
|
002
|
132027
|
FRONT HANDLE
|
N/A
|
POA
|
|
003
|
132225
|
REAR HANDLE
|
N/A
|
POA
|
|
004
|
133330
|
HANDLE, ONE PIECE
|
N/A
|
POA
|
|
005
|
13271-AF
|
WEDGE
|
N/A
|
POA
|
|
006
|
664391
|
HANDLE BRACKET
|
N/A
|
POA
|
|
007
|
664367
|
LEG
|
N/A
|
POA
|
|
008
|
813139
|
LEG BRACE
|
£10.03
|
Add
|
|
009
|
664383
|
NOSE BRACE
|
N/A
|
POA
|
|
010
|
102483
|
AXLE
|
N/A
|
POA
|
|
011
|
41475-AF
|
WHEEL W/TIRE
|
N/A
|
POA
|
|
012
|
26179-AF
|
AXLE BRACKET
|
N/A
|
POA
|
|
013
|
24141-AF
|
TRAY BRACE
|
N/A
|
POA
|
|
014
|
46587-AF
|
BOLT, CARRIAGE 5/16-18 X 1/2" LG.
|
N/A
|
POA
|
|
014
|
46587-AF
|
BOLT, CARRIAGE 5/16-18 X 1/2" LG.
|
N/A
|
POA
|
|
015
|
44977-AF
|
CARRIAGE BOLT, 5/16-18 X 2" LONG
|
£4.05
|
Add
|
|
016
|
46588-AF
|
BOLT, CARRIAGE 5/16-18 X 2-1/4" LG.
|
N/A
|
POA
|
|
017
|
46594-AF
|
BOLT, CARRIAGE 5/16-18 X 2-3/4" LG.
|
N/A
|
POA
|
|
018
|
44217-AF
|
BOLT, CARRIAGE PLTD 5/16"-18 X 3" LONG
|
£2.91
|
Add
|
|
019
|
46595-AF
|
BOLT, CARRIAGE 5/16-18 X 4-1/2" LG.
|
N/A
|
POA
|
|
020
|
44198-AF
|
BOLT, CARRIAGE PLTD 5/16"-18 X 5" LONG
|
N/A
|
POA
|
|
021
|
46584-AF
|
Nut, Whiz Lock 5/16-18 46584
|
£3.91
|
Add
|
|
021
|
46584-AF
|
Nut, Whiz Lock 5/16-18 46584
|
£3.91
|
Add
|
|
021
|
46584-AF
|
Nut, Whiz Lock 5/16-18 46584
|
£3.91
|
Add
|
|
021
|
46584-AF
|
Nut, Whiz Lock 5/16-18 46584
|
£3.91
|
Add
|
|
022
|
R19212113
|
Washer, 5/8" SAE
|
£5.92
|
Add
|
|
023
|
141-AF
|
Washer, Flat 1-1/2" x .375" x .062" 141
|
£3.91
|
Add
|
