Parts list

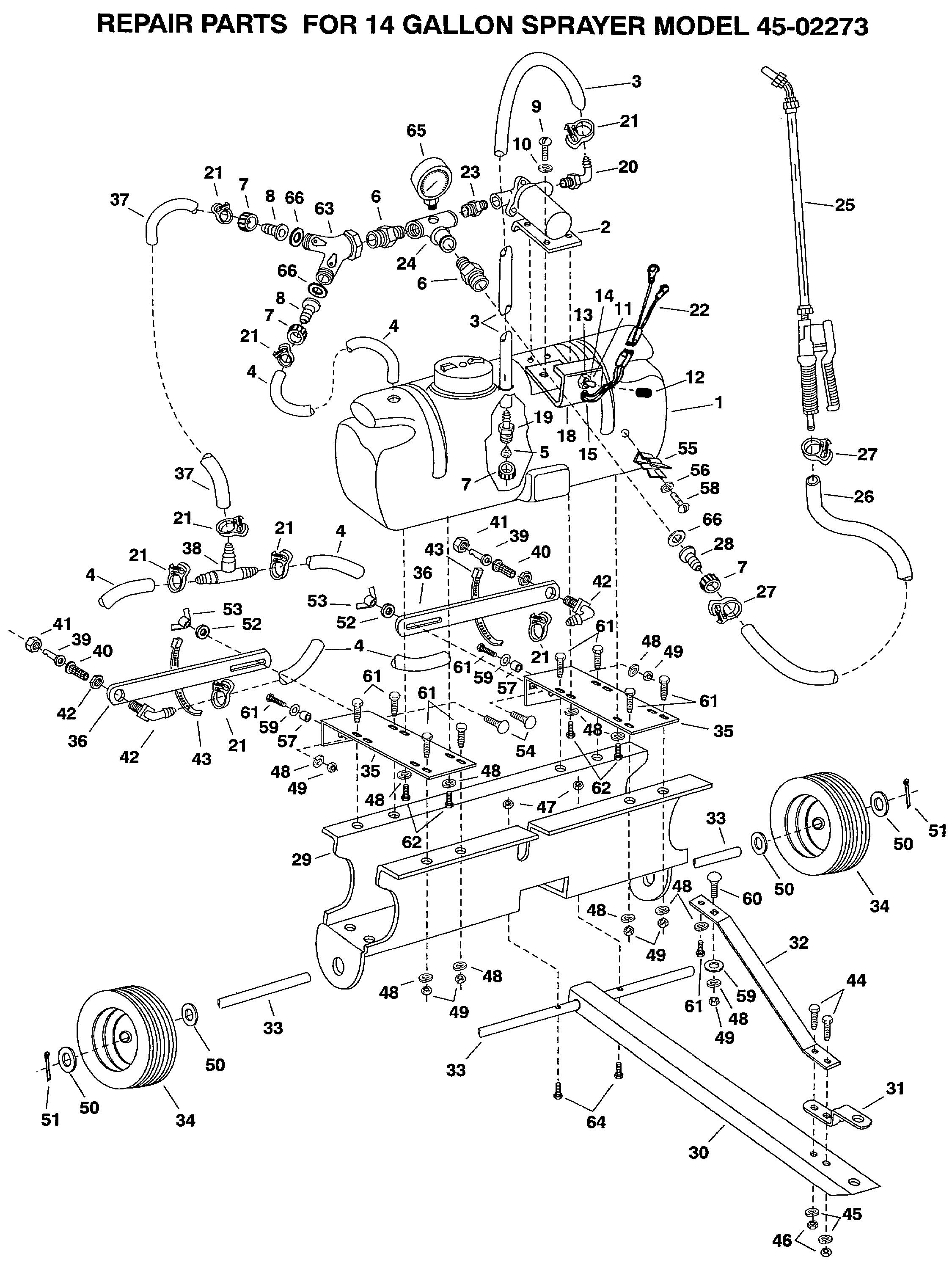

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
46281-AF
|
OWNERS MANUAL
|
N/A
|
POA
|
|
001
|
45014-AF
|
TANK (14 GAL.)
|
£293.07
|
Add
|
|
002
|
45015-AF
|
PUMP AND MOTOR
|
£421.85
|
Add
|
|
003
|
46278-AF
|
HOSE
|
£15.33
|
Add
|
|
004
|
45021-AF
|
HOSE
|
£12.61
|
Add
|
|
005
|
45024-AF
|
CAP STRAINER
|
£4.12
|
Add
|
|
006
|
45031-AF
|
ADAPTOR (RED)
|
£4.58
|
Add
|
|
007
|
45032-AF
|
NUT SWIVEL
|
£3.87
|
Add
|
|
008
|
45033-AF
|
HOSE BARB 1/2"
|
£3.62
|
Add
|
|
009
|
45069-AF
|
Screw, Ph. Pan Hd. 10-24 x 1" Lg. 45069
|
£4.05
|
Add
|
|
010
|
43910-AF
|
Washer, Flat #10 SAE 43910
|
£3.19
|
Add
|
|
011
|
45084-AF
|
Switch, On - Off 45084
|
£25.40
|
Add
|
|
012
|
45082-AF
|
Boot, Rubber Switch 45082
|
£13.83
|
Add
|
|
013
|
45080-AF
|
PLATE, ON - OFF SWITCH
|
£4.05
|
Add
|
|
014
|
45048-AF
|
Nut, Hex 15/32-32 Thd. 45048
|
£4.05
|
Add
|
|
015
|
45087-AF
|
Bushing, Strain Relief 45087
|
£4.05
|
Add
|
|
016
|
45085-AF
|
Terminal, .25 Male Tab (not shown) 45085
|
£5.68
|
Add
|
|
017
|
45086-AF
|
Terminal, .25 Female Tab (not shown) 45086
|
£6.20
|
Add
|
|
018
|
23889-AF
|
Bracket, Switch Mounting 23889
|
£19.19
|
Add
|
|
019
|
46276-AF
|
Adapter, 3/4" GH x 1/2" Barb 46276
|
£5.68
|
Add
|
|
020
|
46277-AF
|
Elbow, 3/8 NPT x 1/2" Barb 46277
|
£5.79
|
Add
|
|
021
|
45025-AF
|
CLAMP
|
£5.45
|
Add
|
|
022
|
45018-AF
|
CONNECTOR W/WIRE
|
£71.79
|
Add
|
|
023
|
45049-AF
|
NIPPLE
|
£4.74
|
Add
|
|
024
|
45050-AF
|
TEE,1/2 x 1/2 x 1/2 (1/4"PORT) AF-45050
|
£32.90
|
Add
|
|
025
|
45016-AF
|
ASSY SPRAY GUN 45016
|
£132.03
|
Add
|
|
026
|
45023-AF
|
HOSE, 3/8 ID (12'6" LG)
|
£68.26
|
Add
|
|
027
|
45026-AF
|
CLAMP (RED)
|
£5.85
|
Add
|
|
028
|
45034-AF
|
Hose Barb, 3/8" 45034
|
£4.05
|
Add
|
|
029
|
23506-AF
|
SUPPORT-AXLE-FR 23506
|
£131.29
|
Add
|
|
030
|
24040-AF
|
BODY 24040
|
£55.91
|
Add
|
|
031
|
23014-AF
|
HITCH BRACKET
|
£31.67
|
Add
|
|
032
|
24041-AF
|
ROD PARK BRAKE RETAINING 24041
|
£19.85
|
Add
|
|
033
|
23026-AF
|
Axle, 3/4" 23026
|
£104.98
|
Add
|
|
034
|
44456-AF
|
WHEEL ASSY (OBSOLETE)
|
N/A
|
POA
|
|
035
|
24039-AF
|
TANK MOUNT BRACKET
|
£25.05
|
Add
|
|
036
|
24038-AF
|
BOOM BAR
|
£8.16
|
Add
|
|
037
|
45022-AF
|
HOSE, 1/2 ID (14" LG.)
|
£10.89
|
Add
|
|
038
|
45027-AF
|
T-STÜCK PLASTIK 45027
|
N/A
|
POA
|
|
039
|
45028-AF
|
NOZZLE FLOODJET
|
£8.19
|
Add
|
|
040
|
45029-AF
|
STRAINER SCREEN
|
£11.35
|
Add
|
|
041
|
45037-AF
|
NUT
|
£5.96
|
Add
|
|
042
|
45030-AF
|
ELBOW PLASTIC
|
£10.89
|
Add
|
|
043
|
725-0157
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
044
|
43087-AF
|
Hex Bolt, 3/8-16 x 1-1/4" Long 43087
|
£4.58
|
Add
|
|
045
|
736-0169
|
L. WASHER
|
£2.89
|
Add
|
|
046
|
43082-AF
|
HEX LOCK NUT
|
£4.12
|
Add
|
|
047
|
712-0291
|
LOCK-NUT
|
£2.77
|
Add
|
|
048
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
049
|
43083-AF
|
HEX NUT
|
£3.32
|
Add
|
|
050
|
43009-AF
|
WASHER1-5/8 INCH O D X 25/32 INCH ID
|
£5.26
|
Add
|
|
051
|
43093-AF
|
COTTER PIN
|
£3.11
|
Add
|
|
052
|
43088-AF
|
FLAT WASHER
|
£3.11
|
Add
|
|
053
|
43193-AF
|
WING NUT 43193
|
£5.79
|
Add
|
|
054
|
44950-AF
|
BOLT
|
£3.62
|
Add
|
|
055
|
45180-AF
|
Clip (Small), Spray Gun 45180
|
£20.21
|
Add
|
|
056
|
736-0722
|
Lock Washer, #10
|
£3.20
|
Add
|
|
057
|
23625-AF
|
Spacer, 1/4" Long 23625
|
£10.35
|
Add
|
|
058
|
45040-AF
|
BOLT
|
£3.62
|
Add
|
|
059
|
43081-AF
|
FLAT WASHER
|
£3.49
|
Add
|
|
060
|
43080-AF
|
CARRIAGE BOLT
|
£3.49
|
Add
|
|
061
|
43182-AF
|
Hex Bolt, 5/16" x 3/4" 43182
|
£4.31
|
Add
|
|
062
|
44692-AF
|
Bolt, Hex 5/16-18 x 1/2" Lg. 44692
|
£4.05
|
Add
|
|
063
|
45017-AF
|
Y VALVE
|
£30.93
|
Add
|
|
064
|
43648-AF
|
Bolt, Hex 1/4-20 x 1-1/2" Lg.* 43648
|
£4.58
|
Add
|
|
065
|
45071-AF
|
Gauge, Pressure 2" 100 PSI 45071
|
£58.88
|
Add
|
|
066
|
45072-AF
|
GASKET
|
£3.70
|
Add
|
