FG320_0300

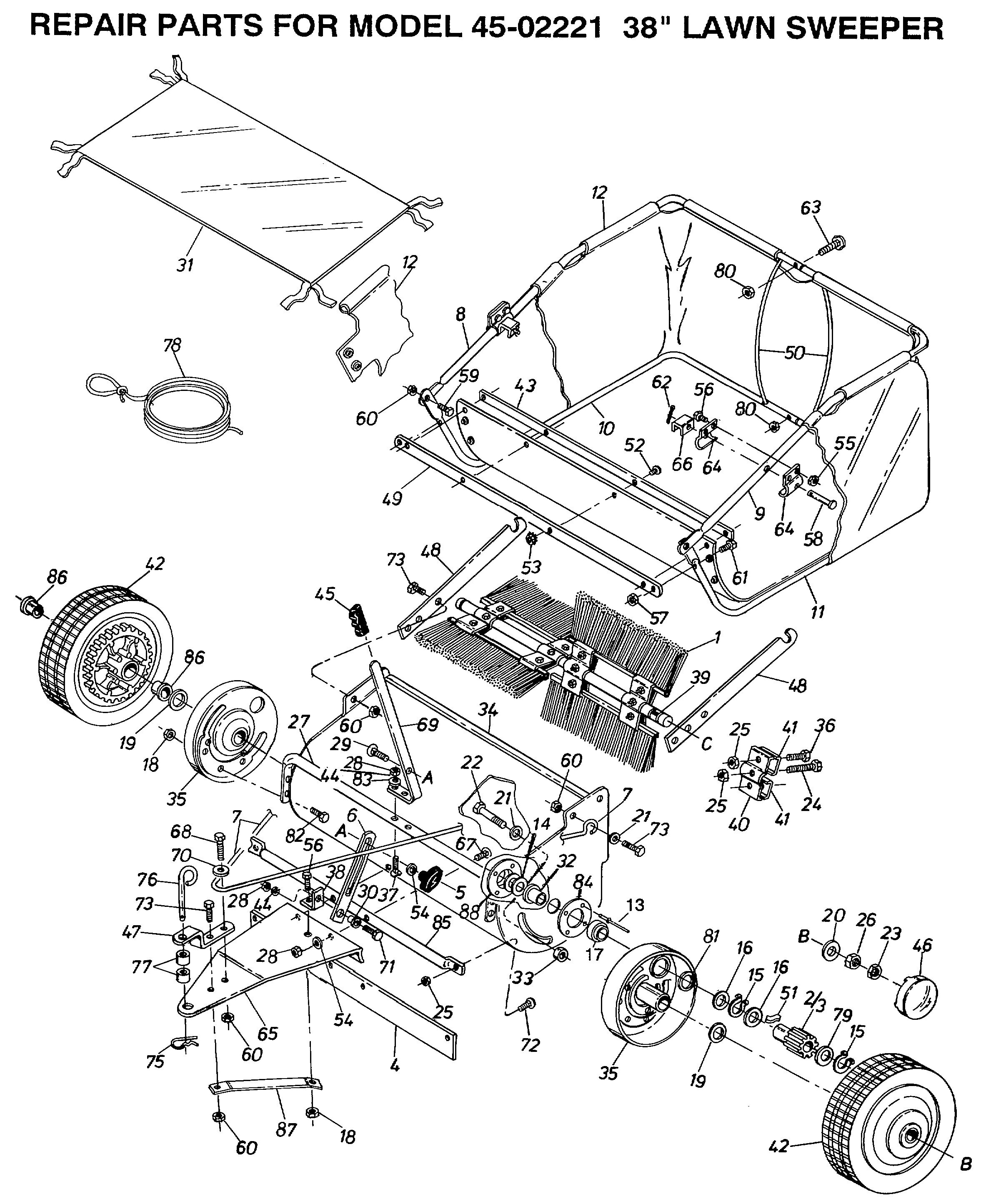

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG320_0300

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
46222-AF OWNERS MANUAL (OBSOLETE) N/A POA
001 47488-AF BRUSH £20.79 Add
002 2692-6-AF DRIVE PINION R.H. AF-2692-6 £25.10 Add
003 2692-7-AF DRIVE PINION LH AF-2692-7 £21.85 Add
004 44960-AF RUBBER PADDLE 44960 £25.88 Add
005 43720-AF KNOB (RED) £7.83 Add
006 23876-AF HEIGHT ADJUSTMENT STRAP £9.46 Add
007 43958-AF BRACE-VAR SP 43958 £22.35 Add
008 44968-AF UPPER HOPPER TUBE - R.H. £21.62 Add
009 44969-AF UPPER HOPPER TUBE - L.H. £20.30 Add
010 43968-AF LOWER HOPPER TUBE RH £42.13 Add
011 43969-AF LOWER HOPPER TUBE LH £44.74 Add
012 44971-AF HOPPER BAG £215.32 Add
013 C-9M5732 Pop Rivet (OBSOLETE) (OBSOLETE) (OBSOLETE) N/A POA
014 R19212016-AF WASHER 21/32X1-1/4X16 GA £3.87 Add
015 AF-1650-21 RETAINING RING £2.61 Add
016 40001-AF Washer, Shim 1-1/8" x .594" x .025" 44007-AF £3.58 Add
017 46219-AF SPACER £11.10 Add
018 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £9.35 Add
019 44008-AF WASHER £3.24 Add
020 0141-000 WASHER £3.39 Add
021 43070-AF Washer, 3/8" £3.91 Add
022 44961-AF Bolt, Hex 3/8-24 x 3-1/4" Lg. 44961 £4.31 Add
023 44684-AF Jam Nut, 3/8-24 Thread 44684 £4.05 Add
024 43661-AF HEX BOLT £3.11 Add
025 712-0291 LOCK-NUT £2.77 Add
026 1038-AF Nut, Nylock 3/8-24 Thread 1038 £3.48 Add
027 44908-AF HEIGHT ADJ. TUBE £35.75 Add
028 43083-AF HEX NUT £3.32 Add
029 43080-AF CARRIAGE BOLT £3.49 Add
030 23400-AF SPACER £5.85 Add
031 43687-AF BAG WIND SHIELD 38 IN AF-43687 £30.39 Add
032 44910-AF BUSHING BRUSH SHAFT (RED) £8.31 Add
033 44911-AF SPACER £4.12 Add
034 62864-AF SWEEPER HOUSING ASSY £180.86 Add
035 63027-AF ASS`Y, DUST COVER 63027 £73.32 Add
036 43012-AF BOLT £3.32 Add
037 44947-AF Bolt, Curved Head 5/16-18 x 1-5/8" 44947 £4.05 Add
038 23869-AF BRACKET, GATE SLIDE ANGLE 23869 £4.05 Add
039 23852-AF SHAFT 23852 £97.61 Add
040 23580-AF BRUSH RETAINER 42-0197 £9.24 Add
041 23581-AF BRUSH RETAINER 42-0197 £5.45 Add
042 44985-AF WHEEL ASSY. FOR 38" SWEEPER £116.26 Add
043 23343-AF PLATE-SHAVE 23343 £19.62 Add
044 43086-AF Lock Washer, 5/16" 43086 £3.48 Add
045 43943-AF Handle Grip 43943 £8.46 Add
046 2674-32-AF Hub Cap 2674-32 N/A POA
047 23014-AF HITCH BRACKET £31.67 Add
048 23595-AF ARM, BAG MT LG 23595 £28.19 Add
049 23352-AF Strap, Bag Frame 23352 £28.38 Add
050 43926-AF HOPPER SUPPORT ROD £8.99 Add
051 1671-1-AF PAWL MOD 60 1671-1 £11.82 Add
052 43346-AF Truss Head Bolt, #10- 32 x 5/8" 43346 £3.48 Add
053 43662-AF Lock Nut, 10-32 43662 £3.73 Add
054 43081-AF FLAT WASHER £3.49 Add
055 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £9.35 Add
056 43182-AF Hex Bolt, 5/16" x 3/4" 43182 £4.31 Add
057 712-0291 LOCK-NUT £2.77 Add
058 43513-AF CLEVIS PIN (RED) £8.53 Add
059 43407-AF Bolt, Hex 3/8-16 x 3/4" Lg. * 43407 £3.91 Add
060 43082-AF HEX LOCK NUT £4.12 Add
061 1509-090 NO LONGER AVAILABLE N/A POA
062 714-0474 PIN (RED) £3.20 Add
063 43978-AF Bolt, Curved 1.4-20 x 1" 43978 £4.05 Add
064 23331-AF THROTTLE CABLE CLIP 23331 £12.01 Add
065 23874-AF TONGUE, HITCH N/A POA
066 23354-AF BAIL 23354 £11.94 Add
067 44215-AF Bolt, Carriage 5/16-18 x 1-3/4" 44215 £3.48 Add
068 43062-AF BOLT 3/8-16 X 1-1/2 HEX HEAD 43062 £4.99 Add
069 23850-AF Handle, Height Adjustment 23850 £28.31 Add
070 R19172410-AF WASHER-FLAT AF-R19172410 N/A POA
071 43814-AF SLOTTED TRUSS HEADBOLT(5/16-18x3/4) £3.11 Add
072 44950-AF BOLT £3.62 Add
073 43087-AF Hex Bolt, 3/8-16 x 1-1/4" Long 43087 £4.58 Add
075 43343-AF PIN COTTER £4.20 Add
076 23353-AF HITCH PIN £19.20 Add
077 23368-AF Tube, Hitch Spacer 23368 £8.18 Add
078 43737-AF Hopper Rope 43737 £5.99 Add
079 44006-AF WASHER £5.01 Add
080 712-0291 LOCK-NUT £2.77 Add
081 43601-AF WASHER £8.99 Add
082 44692-AF Bolt, Hex 5/16-18 x 1/2" Lg. 44692 £4.05 Add
083 44695-AF Washer, Bowed 44695 £4.05 Add
084 23336-AF Washer, Special 23336 £4.88 Add
085 44904-AF STRAP:LIFT HANDLE SUPPORT 44904 £36.59 Add
086 45088-AF WHEEL BEARING £12.03 Add
087 23875-AF TONGUE BRACKET £9.04 Add
088 AF-1629-56 Retainer, Dust Cover 1629-56 £26.36 Add
