Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items

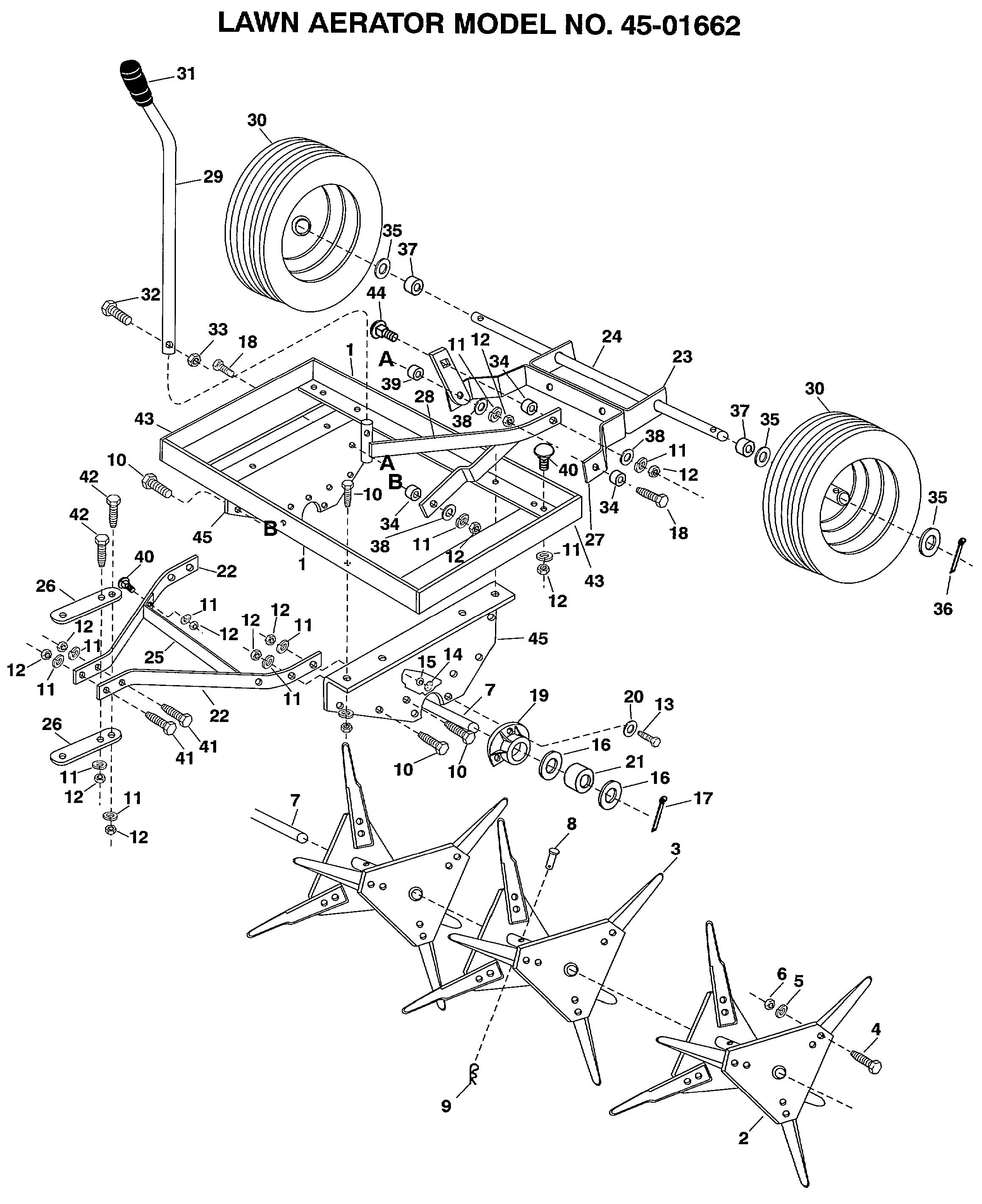

Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
46290-AF
|
OWNERS MANUAL
|
N/A
|
POA
|
|
001
|
23229-AF
|
FRAME ANGLE (LONG)
|
N/A
|
POA
|
|
002
|
62096-AF
|
Spool 092.34.112
|
£209.55
|
Add
|
|
003
|
23084-AF
|
MESSERFLÜGEL 23084
|
£12.88
|
Add
|
|
004
|
43182-AF
|
Hex Bolt, 5/16" x 3/4" 43182
|
£4.31
|
Add
|
|
005
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
006
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
007
|
24042-AF
|
SHAFT
|
£97.82
|
Add
|
|
008
|
43023-AF
|
CLEVIS PIN 092.34.115
|
£12.69
|
Add
|
|
009
|
43055-AF
|
COTTER PIN
|
£6.04
|
Add
|
|
010
|
43001-AF
|
HEX BOLT (RED)
|
£3.49
|
Add
|
|
011
|
736-0169
|
L. WASHER
|
£2.89
|
Add
|
|
012
|
43082-AF
|
HEX LOCK NUT
|
£4.12
|
Add
|
|
013
|
43012-AF
|
BOLT
|
£3.32
|
Add
|
|
014
|
43177-AF
|
Washer, Lock 1/4" I.D.* 43177
|
£3.08
|
Add
|
|
015
|
712-0291
|
LOCK-NUT
|
£2.77
|
Add
|
|
016
|
43601-AF
|
WASHER
|
£8.99
|
Add
|
|
017
|
43093-AF
|
COTTER PIN
|
£3.11
|
Add
|
|
018
|
43087-AF
|
Hex Bolt, 3/8-16 x 1-1/4" Long 43087
|
£4.58
|
Add
|
|
019
|
46069-AF
|
BEARING 092.34.163
|
N/A
|
POA
|
|
020
|
43088-AF
|
FLAT WASHER
|
£3.11
|
Add
|
|
021
|
46289-AF
|
SPACER, 1" I.D. X 1-3/16" LG.
|
£5.68
|
Add
|
|
022
|
23977-AF
|
BRACKET-MTG 092.34.164
|
£31.52
|
Add
|
|
023
|
23980-AF
|
AXLE BRACKET (LOWER)
|
£22.01
|
Add
|
|
024
|
23454-AF
|
AXLE
|
£20.30
|
Add
|
|
025
|
23978-AF
|
QUERVERSTEIFUNG 092.34.167
|
£10.59
|
Add
|
|
026
|
23981-AF
|
HITCH BRACKET
|
£9.80
|
Add
|
|
027
|
62978-AF
|
AXLE SUSPENSION 092.34.169
|
£78.17
|
Add
|
|
028
|
62442-AF
|
Lift arm 092.34.128
|
£126.05
|
Add
|
|
029
|
23458-AF
|
Lever 092.34.129
|
N/A
|
POA
|
|
030
|
43756-AF
|
Wheel assy. 092.34.130
|
£107.05
|
Add
|
|
031
|
43362-AF
|
HANDLE GRIP AF 43362
|
£4.50
|
Add
|
|
032
|
43840-AF
|
HEX BOLT
|
£3.49
|
Add
|
|
033
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
034
|
23519-AF
|
SLEEVE 092.34.133
|
£11.76
|
Add
|
|
035
|
43754-AF
|
WASHER 21 092.34.134
|
£4.02
|
Add
|
|
036
|
43010-AF
|
COTTER PIN
|
£3.49
|
Add
|
|
037
|
20520-AF
|
SPACER, 1-1/2" OD X 5/8" ID
|
N/A
|
POA
|
|
038
|
43070-AF
|
Washer, 3/8"
|
£3.91
|
Add
|
|
039
|
23537-AF
|
SPACER, 13/32 I.D. X 9/16" O.D. X 19/32" LG.
|
£9.90
|
Add
|
|
040
|
43350-AF
|
Bolt, Carriage 3/8-16 x 1" Lg. 43350
|
£3.73
|
Add
|
|
041
|
43062-AF
|
BOLT 3/8-16 X 1-1/2 HEX HEAD 43062
|
£4.99
|
Add
|
|
042
|
43432-AF
|
Bolt, Hex 3/8-16 x 2-1/2" Lg. 43432
|
£4.05
|
Add
|
|
043
|
23976-AF
|
RAHMEN KURZ 092.34.172
|
£18.72
|
Add
|
|
044
|
710-0431
|
SREW: M5X20-8.8:DIN 603 092.34.137
|
£14.89
|
Add
|
|
045
|
23494-AF
|
BRACKET, FRAME SIDE
|
£74.73
|
Add
|
