FG319_1200

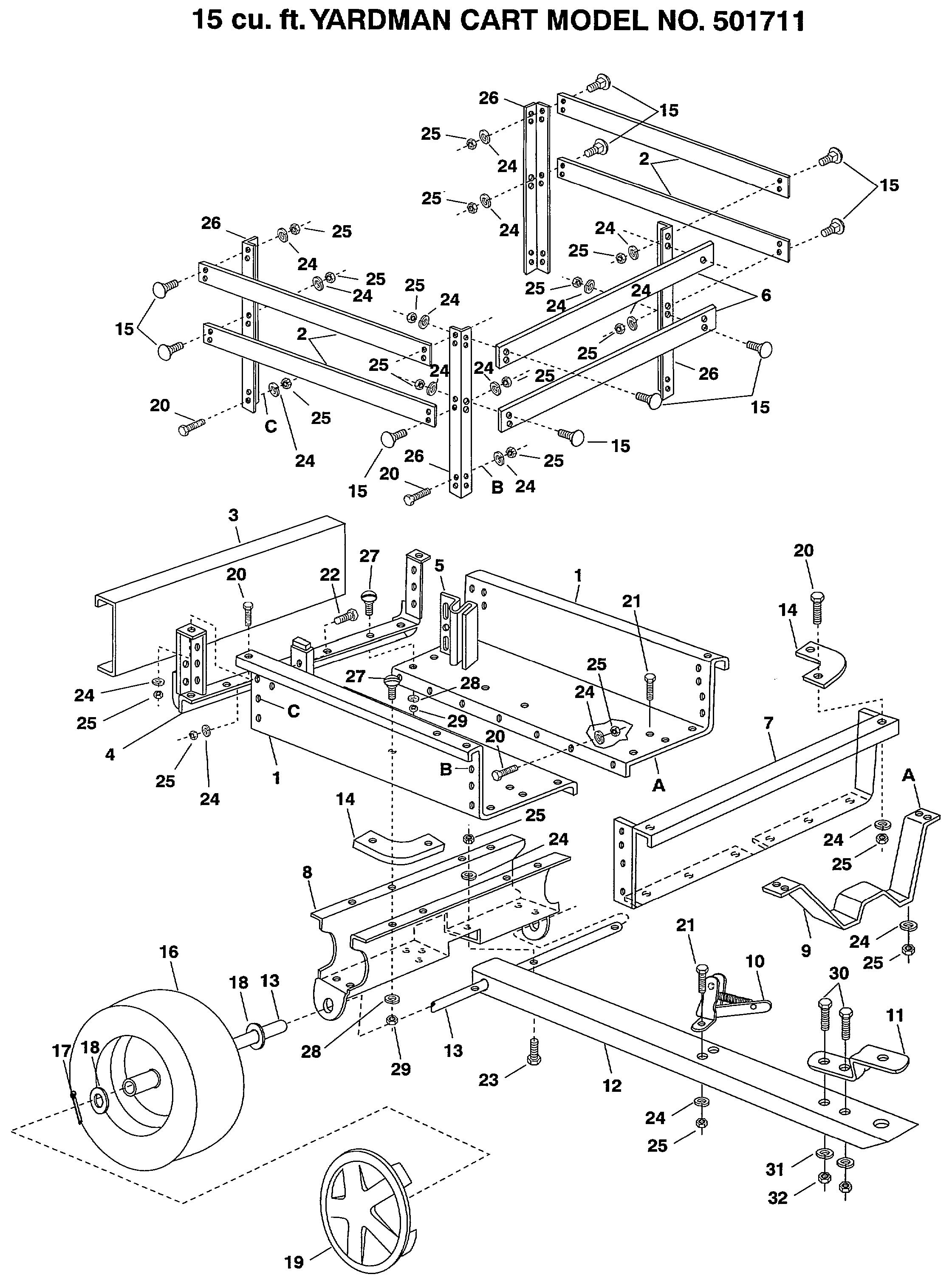

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
	46235-AF	OWNER'S MANUAL	N/A	POA
001	23987-AF	CART BODY	£125.73	Add
002	23088-AF	BOARD, SIDES 1X3X46-1/2"	£56.28	Add
003	23503-AF	TAILGATE	£74.21	Add
004	62458-AF	Tailgate Reinforcement Bracket 62458	£98.48	Add
005	23548-AF	Tailgate Guide 23548	£11.15	Add
006	23089-AF	BOARD, FRONT 1X3X31-1/2"	N/A	POA
007	23493-AF	FRONT PANEL	£72.11	Add
008	23507-AF	Wheel Support 23507	£240.05	Add
009	23297-AF	LATCH STAND BRACKET	£56.74	Add
010	62455-AF	ASS`Y, LATCH LOCK AF-62455	£53.63	Add
011	23014-AF	HITCH BRACKET	£31.67	Add
012	23988-AF	DRAW BAR TONGUE (368)	N/A	POA
013	23299-AF	WHEEL-AXLE 1" DIA.	£125.11	Add
014	23484-AF	Front Corner Cap 23484	£21.81	Add
015	43176-AF	BOLT, CARRIAGE 1/4-20X1"	N/A	POA
016	46112-AF	WHEEL, 16-6.5 X 8.00	N/A	POA
017	43093-AF	COTTER PIN	£3.11	Add
018	43601-AF	WASHER	£8.99	Add
019	731-0484A	HUB CAP	£5.05	Add
020	43175-AF	Hex Bolt, 1/4-20 x 1/2" * 43175	£4.15	Add
021	43866-AF	Bolt, Hex 1/4-20 x 5/8" Lg. Gr. 5 43866	£3.48	Add
022	43012-AF	BOLT	£3.32	Add
023	1509-69-AF	HEX BOLT, 1/4-20 X 1-3/4" LG.	£2.77	Add
024	43177-AF	Washer, Lock 1/4" I.D.* 43177	£3.08	Add
025	43178-AF	Hex Nut, 1/4-20 Thread	£3.37	Add
026	23086-AF	ANGLE. BRACKET-R.H.	N/A	POA
027	43814-AF	SLOTTED TRUSS HEADBOLT(5/16-18x3/4)	£3.11	Add
028	43086-AF	Lock Washer, 5/16" 43086	£3.48	Add
029	43083-AF	HEX NUT	£3.32	Add
030	43001-AF	HEX BOLT (RED)	£3.49	Add
031	736-0169	L. WASHER	£2.89	Add
032	712-0798	HEX. NUT	£7.61	Add
