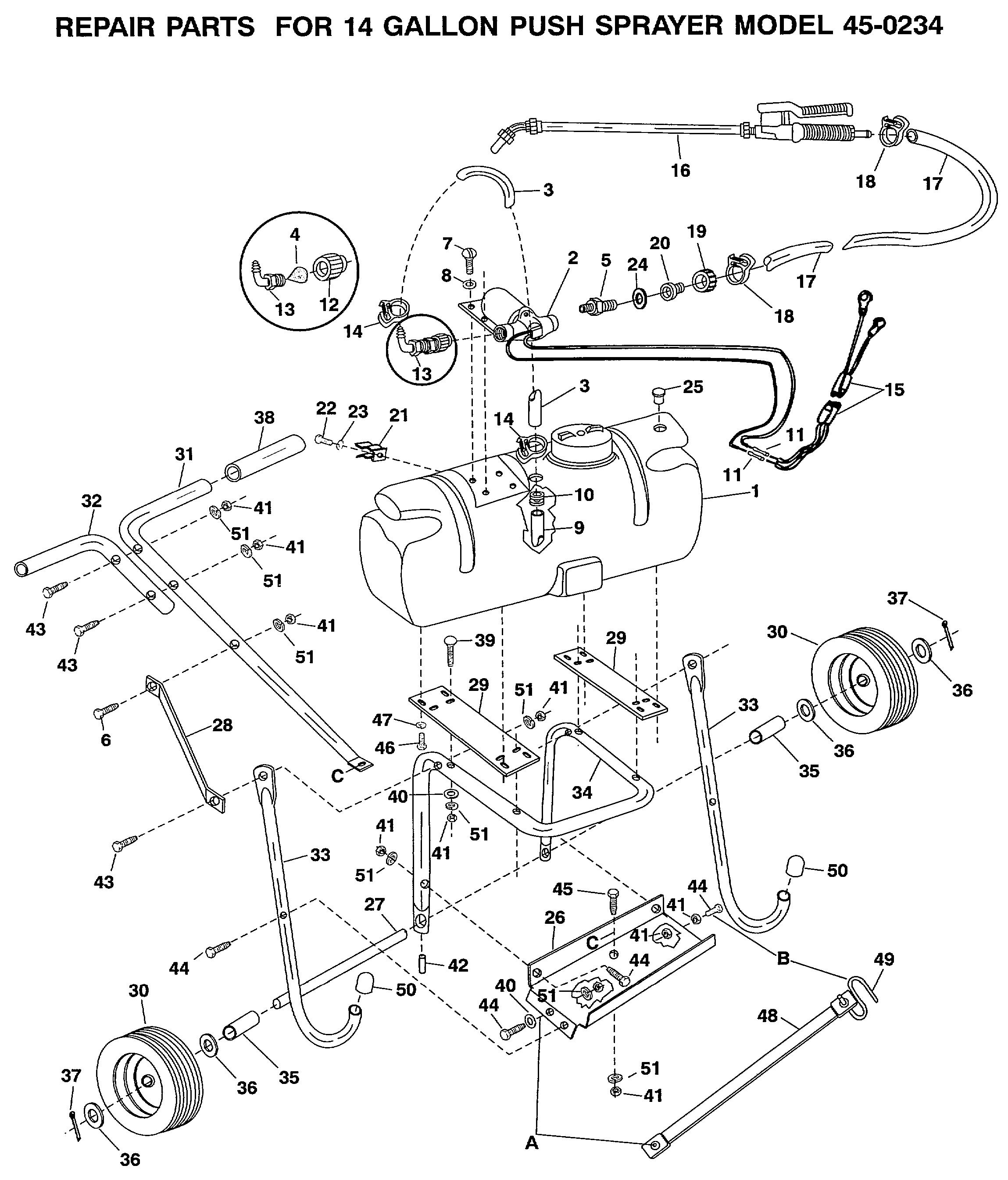

Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
001
|
45014-AF
|
TANK (14 GAL.)
|
£293.07
|
Add
|
|
002
|
46072-AF
|
PUMP AND MOTOR
|
N/A
|
POA
|
|
003
|
45022-AF
|
HOSE, 1/2 ID (14" LG.)
|
£10.89
|
Add
|
|
004
|
45024-AF
|
CAP STRAINER
|
£4.12
|
Add
|
|
005
|
45179-AF
|
ADAPTER, 3/8" NPT X HOSE
|
N/A
|
POA
|
|
006
|
1509-69-AF
|
HEX BOLT, 1/4-20 X 1-3/4" LG.
|
£2.77
|
Add
|
|
007
|
45069-AF
|
Screw, Ph. Pan Hd. 10-24 x 1" Lg. 45069
|
£4.05
|
Add
|
|
008
|
43910-AF
|
Washer, Flat #10 SAE 43910
|
£3.19
|
Add
|
|
009
|
45035-AF
|
SUCTION TUBE, PLASTIC 13" LG.
|
£23.67
|
Add
|
|
010
|
45036-AF
|
GROMMET, 1/2" ID RUBBER
|
£6.20
|
Add
|
|
011
|
46075-AF
|
TERMINAL
|
£6.51
|
Add
|
|
012
|
45081-AF
|
SWIVEL FITTING, 3/8 NPT X 3/4 GH
|
£8.93
|
Add
|
|
013
|
45083-AF
|
ELBOW, 3/4 GH X 1/2 HOSE BARB
|
£4.83
|
Add
|
|
014
|
45025-AF
|
CLAMP
|
£5.45
|
Add
|
|
015
|
46073-AF
|
CONNECTOR WITH WIRE
|
N/A
|
POA
|
|
016
|
45016-AF
|
ASSY SPRAY GUN 45016
|
£132.03
|
Add
|
|
017
|
45023-AF
|
HOSE, 3/8 ID (12'6" LG)
|
£68.26
|
Add
|
|
018
|
45026-AF
|
CLAMP (RED)
|
£5.85
|
Add
|
|
019
|
45032-AF
|
NUT SWIVEL
|
£3.87
|
Add
|
|
020
|
45034-AF
|
Hose Barb, 3/8" 45034
|
£4.05
|
Add
|
|
021
|
45180-AF
|
Clip (Small), Spray Gun 45180
|
£20.21
|
Add
|
|
022
|
45040-AF
|
BOLT
|
£3.62
|
Add
|
|
023
|
736-0722
|
Lock Washer, #10
|
£3.20
|
Add
|
|
024
|
45072-AF
|
GASKET
|
£3.70
|
Add
|
|
025
|
45181-AF
|
PLUG
|
N/A
|
POA
|
|
026
|
23982-AF
|
TRAY, BATTERY
|
N/A
|
POA
|
|
027
|
23886-AF
|
SHAFT, AXLE
|
£59.89
|
Add
|
|
028
|
23525-AF
|
Brace, Hitch 23525
|
£38.89
|
Add
|
|
029
|
23983-AF
|
BRACKET, TANK MOUNT
|
N/A
|
POA
|
|
030
|
44456-AF
|
WHEEL ASSY (OBSOLETE)
|
N/A
|
POA
|
|
031
|
44590-AF
|
Tube, Handle (Long)
|
£52.25
|
Add
|
|
032
|
44589-AF
|
Tube, Handle (Short)
|
£19.65
|
Add
|
|
033
|
46076-AF
|
TUBE, LEG STAND
|
N/A
|
POA
|
|
034
|
44588-AF
|
Tube, Frame 44588
|
£89.24
|
Add
|
|
035
|
45151-AF
|
SPACER
|
£11.00
|
Add
|
|
036
|
43009-AF
|
WASHER1-5/8 INCH O D X 25/32 INCH ID
|
£5.26
|
Add
|
|
037
|
43093-AF
|
COTTER PIN
|
£3.11
|
Add
|
|
038
|
44482-AF
|
Grip, Handle 44482
|
£7.23
|
Add
|
|
039
|
45039-AF
|
BOLT, CARR 5/16-18x2" LG AF-45039
|
£4.05
|
Add
|
|
040
|
43088-AF
|
FLAT WASHER
|
£3.11
|
Add
|
|
041
|
43178-AF
|
Hex Nut, 1/4-20 Thread
|
£3.37
|
Add
|
|
042
|
43851-AF
|
ROLL PIN
|
£13.84
|
Add
|
|
043
|
43648-AF
|
Bolt, Hex 1/4-20 x 1-1/2" Lg.* 43648
|
£4.58
|
Add
|
|
044
|
1509-090
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
045
|
43866-AF
|
Bolt, Hex 1/4-20 x 5/8" Lg. Gr. 5 43866
|
£3.48
|
Add
|
|
046
|
43182-AF
|
Hex Bolt, 5/16" x 3/4" 43182
|
£4.31
|
Add
|
|
047
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
048
|
46077-AF
|
STRAP, TIE 25" LONG
|
N/A
|
POA
|
|
049
|
44849-AF
|
"S" Hook, #32
|
N/A
|
POA
|
|
050
|
44688-AF
|
Cap, Plastic 44688
|
£4.05
|
Add
|
|
051
|
43177-AF
|
Washer, Lock 1/4" I.D.* 43177
|
£3.08
|
Add
|
|
052
|
46074-AF
|
OWNER'S MANUAL
|
N/A
|
POA
|
