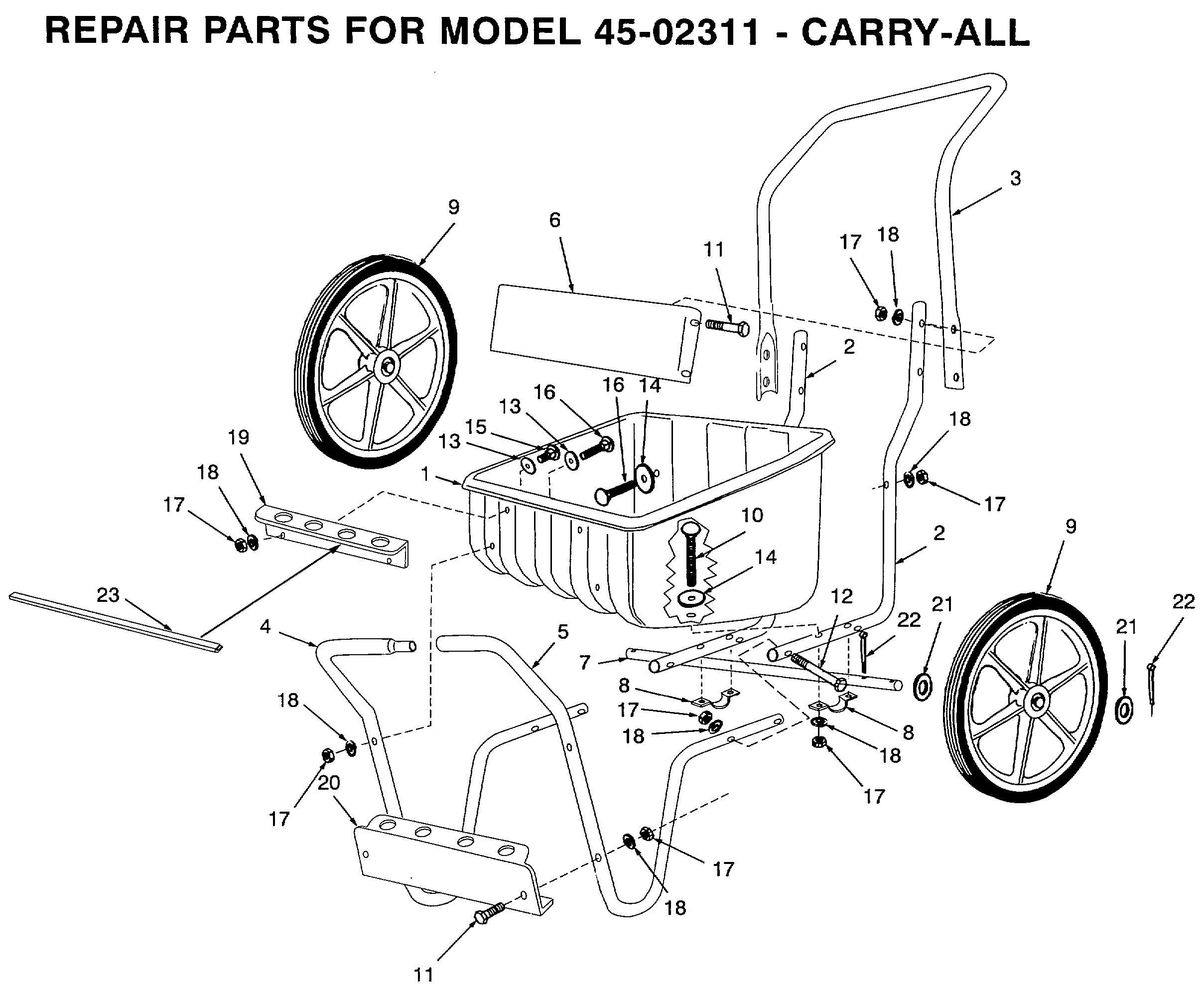

Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
46226-AF
|
OWNER'S MANUAL
|
N/A
|
POA
|
|
001
|
45161-AF
|
TRAY
|
£286.25
|
Add
|
|
002
|
45158-AF
|
TUBE, LOWER HANDLE
|
£33.08
|
Add
|
|
003
|
45159-AF
|
TUBE, UPPER HANDLE
|
£50.54
|
Add
|
|
004
|
46228-AF
|
TUBE, LEG (RH)
|
£51.67
|
Add
|
|
005
|
46229-AF
|
TUBE, LEG (LH)
|
£47.47
|
Add
|
|
006
|
23915-AF
|
BRACE, CROSS
|
£70.35
|
Add
|
|
007
|
23916-AF
|
AXLE
|
£46.08
|
Add
|
|
008
|
23917-AF
|
Clamp, 3/4" Axle 23917
|
£4.05
|
Add
|
|
009
|
67219-AF
|
20" SPOKED WHEEL 44975-AF
|
N/A
|
POA
|
|
010
|
45039-AF
|
BOLT, CARR 5/16-18x2" LG AF-45039
|
£4.05
|
Add
|
|
011
|
43648-AF
|
Bolt, Hex 1/4-20 x 1-1/2" Lg.* 43648
|
£4.58
|
Add
|
|
012
|
45164-AF
|
Bolt AF-45164
|
£4.05
|
Add
|
|
013
|
1543-69-AF
|
Washer, Nylon 1543-069
|
N/A
|
POA
|
|
014
|
43553-AF
|
WASHER,NYLON1-1/2ODx5/16IDx1/8 AF-43553
|
£3.55
|
Add
|
|
015
|
44950-AF
|
BOLT
|
£3.62
|
Add
|
|
016
|
46000-AF
|
CARRIAGE BOLT AF-46000
|
£4.05
|
Add
|
|
017
|
43178-AF
|
Hex Nut, 1/4-20 Thread
|
£3.37
|
Add
|
|
018
|
43177-AF
|
Washer, Lock 1/4" I.D.* 43177
|
£3.08
|
Add
|
|
019
|
23918-AF
|
BRACKET-CABLE AF-23918
|
£34.92
|
Add
|
|
020
|
24022-AF
|
TOOL HOLDER BRKT (LOWER)
|
N/A
|
POA
|
|
021
|
43009-AF
|
WASHER1-5/8 INCH O D X 25/32 INCH ID
|
£5.26
|
Add
|
|
022
|
43010-AF
|
COTTER PIN
|
£3.49
|
Add
|
|
023
|
46138-AF
|
EDGE MOLDING
|
N/A
|
POA
|
