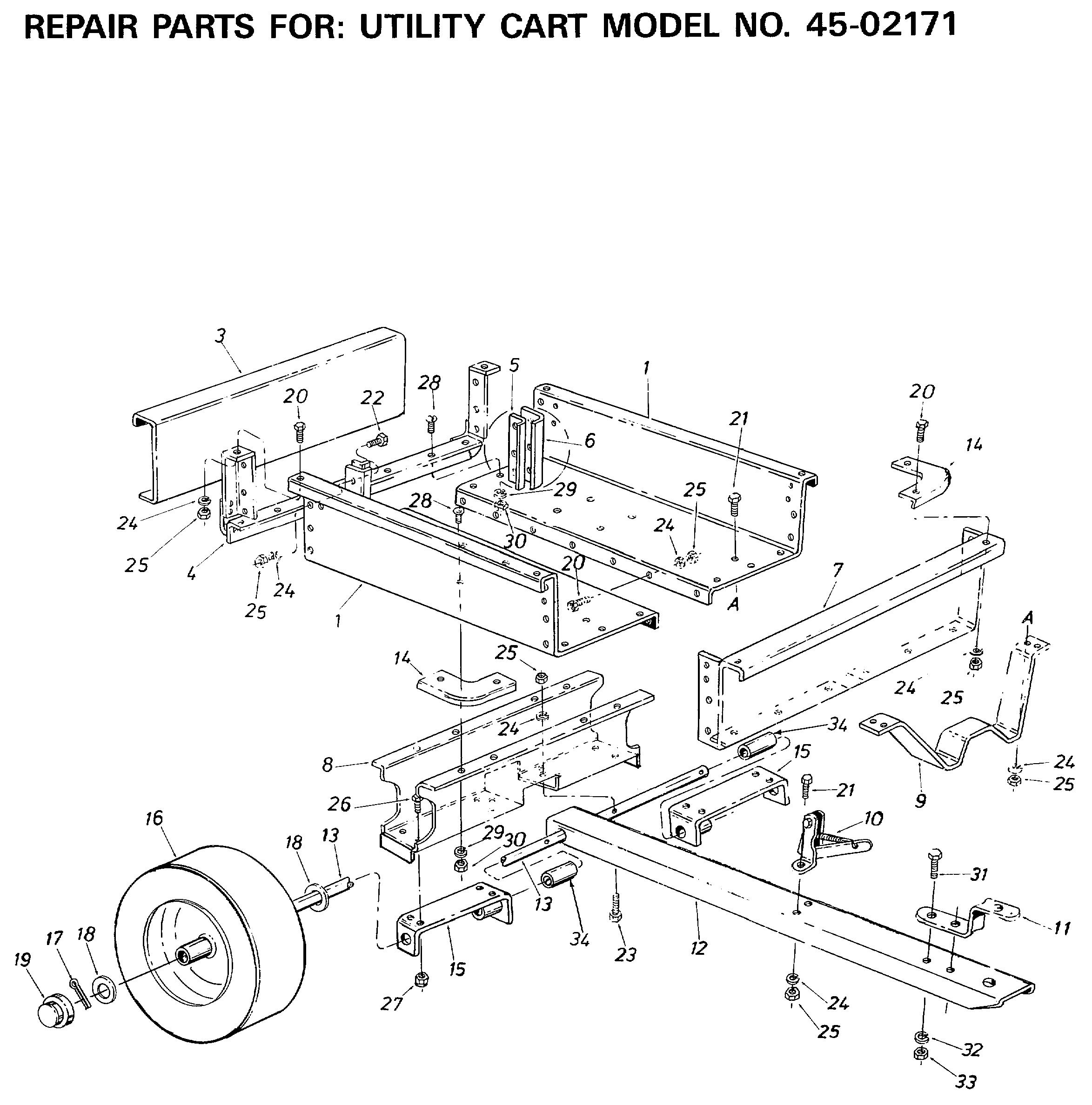

FG319_0500

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
	46085-AF	OWNER'S MANUAL	N/A	POA
001	23984-AF	CART BODY (425)	£321.52	Add
003	23504-AF	Tailgate 23504	£127.46	Add
004	62457-AF	Tailgate Reinforcement Bracket 62457	£103.07	Add
005	23549-AF	GUIDE, TAILGATE -- INSIDE	£13.08	Add
006	23548-AF	Tailgate Guide 23548	£11.15	Add
007	23490-AF	Front Panel 23490	£172.00	Add
008	23821-AF	WHEEL SUPPORT	£197.23	Add
009	23363-AF	LATCH STAND BRACKET	£66.44	Add
010	62455-AF	ASS`Y, LATCH LOCK AF-62455	£53.63	Add
011	23014-AF	HITCH BRACKET	£31.67	Add
012	23989-AF	TUBE-TONGUE AF-23989	£87.21	Add
013	23820-AF	WHEEL AXLE 1" DIA.	£94.21	Add
014	23484-AF	Front Corner Cap 23484	£21.81	Add
015	62359-AF	AXLE EXTENSION ASS'Y.	£76.61	Add
016	43649-AF	WHEEL ASS'Y. COMP.-20 X 10-8	£279.15	Add
017	43093-AF	COTTER PIN	£3.11	Add
018	43601-AF	WASHER	£8.99	Add
019	731-0484A	HUB CAP	£5.05	Add
020	43175-AF	Hex Bolt, 1/4-20 x 1/2" * 43175	£4.15	Add
021	43866-AF	Bolt, Hex 1/4-20 x 5/8" Lg. Gr. 5 43866	£3.48	Add
022	43012-AF	BOLT	£3.32	Add
023	1509-69-AF	HEX BOLT, 1/4-20 X 1-3/4" LG.	£2.77	Add
024	43177-AF	Washer, Lock 1/4" I.D.* 43177	£3.08	Add
025	43178-AF	Hex Nut, 1/4-20 Thread	£3.37	Add
026	43182-AF	Hex Bolt, 5/16" x 3/4" 43182	£4.31	Add
027	712-0158	NUT, HEX CENTER LOCK, 5/16-18	£9.35	Add
028	43814-AF	SLOTTED TRUSS HEADBOLT(5/16-18x3/4)	£3.11	Add
029	43086-AF	Lock Washer, 5/16" 43086	£3.48	Add
030	43083-AF	HEX NUT	£3.32	Add
031	43001-AF	HEX BOLT (RED)	£3.49	Add
032	736-0169	L. WASHER	£2.89	Add
033	712-0798	HEX. NUT	£7.61	Add
034	44678-AF	Spacer (45-0351) 44678	£14.07	Add
