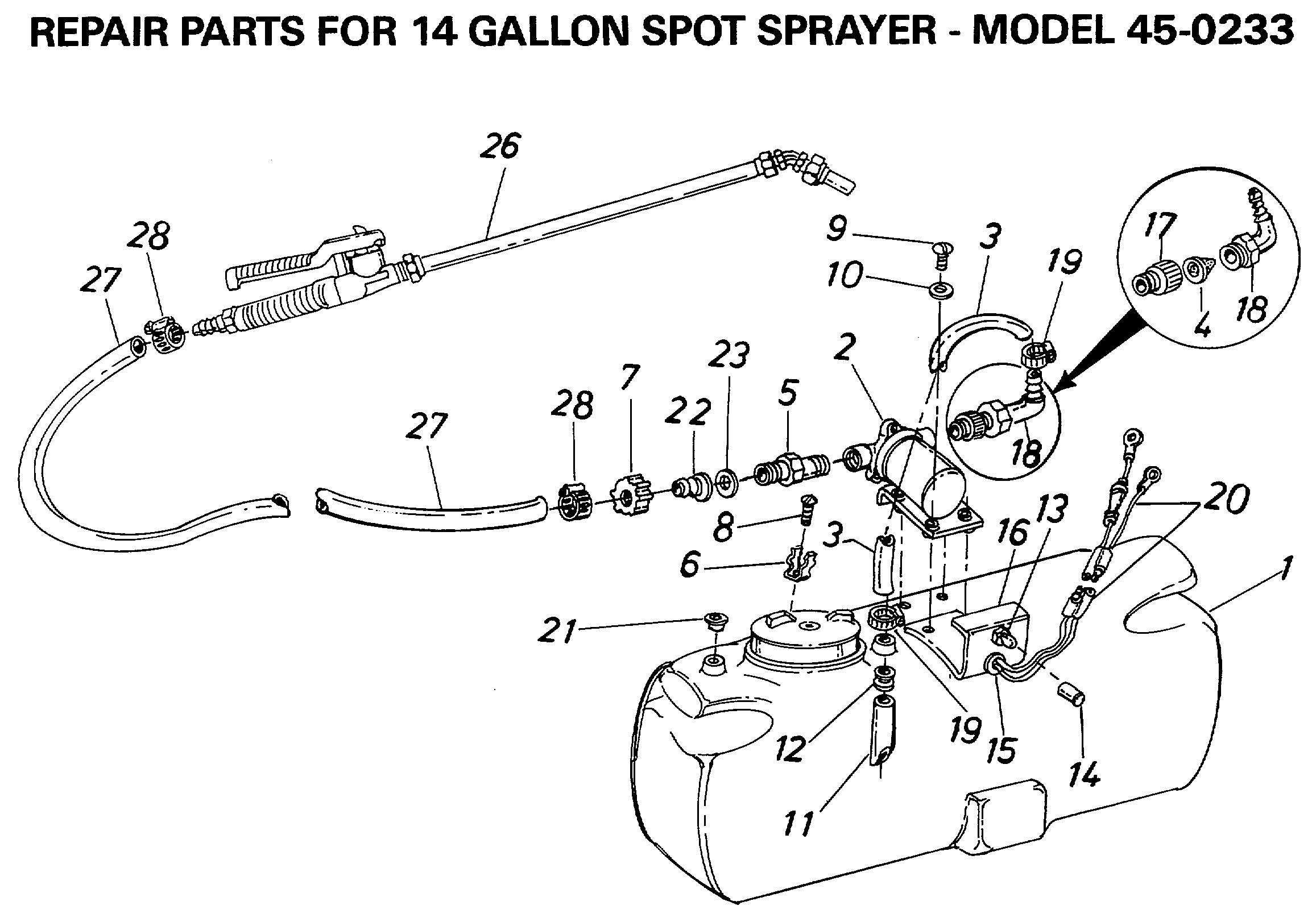

Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
45183-AF
|
OWNERS MANUAL
|
N/A
|
POA
|
|
001
|
45014-AF
|
TANK (14 GAL.)
|
£293.07
|
Add
|
|
002
|
45015-AF
|
PUMP AND MOTOR
|
£421.85
|
Add
|
|
003
|
45022-AF
|
HOSE, 1/2 ID (14" LG.)
|
£10.89
|
Add
|
|
004
|
45024-AF
|
CAP STRAINER
|
£4.12
|
Add
|
|
005
|
45179-AF
|
ADAPTER, 3/8" NPT X HOSE
|
N/A
|
POA
|
|
006
|
45180-AF
|
Clip (Small), Spray Gun 45180
|
£20.21
|
Add
|
|
007
|
45032-AF
|
NUT SWIVEL
|
£3.87
|
Add
|
|
008
|
44291-AF
|
PAN HD. SCR. #8 X .75 LG.
|
N/A
|
POA
|
|
009
|
45069-AF
|
Screw, Ph. Pan Hd. 10-24 x 1" Lg. 45069
|
£4.05
|
Add
|
|
010
|
43910-AF
|
Washer, Flat #10 SAE 43910
|
£3.19
|
Add
|
|
011
|
45035-AF
|
SUCTION TUBE, PLASTIC 13" LG.
|
£23.67
|
Add
|
|
012
|
45036-AF
|
GROMMET, 1/2" ID RUBBER
|
£6.20
|
Add
|
|
013
|
45084-AF
|
Switch, On - Off 45084
|
£25.40
|
Add
|
|
014
|
45082-AF
|
Boot, Rubber Switch 45082
|
£13.83
|
Add
|
|
015
|
45087-AF
|
Bushing, Strain Relief 45087
|
£4.05
|
Add
|
|
016
|
23889-AF
|
Bracket, Switch Mounting 23889
|
£19.19
|
Add
|
|
017
|
45081-AF
|
SWIVEL FITTING, 3/8 NPT X 3/4 GH
|
£8.93
|
Add
|
|
018
|
45083-AF
|
ELBOW, 3/4 GH X 1/2 HOSE BARB
|
£4.83
|
Add
|
|
019
|
45025-AF
|
CLAMP
|
£5.45
|
Add
|
|
020
|
45013-AF
|
CONNECTOR WITH WIRE
|
N/A
|
POA
|
|
021
|
45181-AF
|
PLUG
|
N/A
|
POA
|
|
022
|
45034-AF
|
Hose Barb, 3/8" 45034
|
£4.05
|
Add
|
|
023
|
45072-AF
|
GASKET
|
£3.70
|
Add
|
|
024
|
45085-AF
|
Terminal, .25 Male Tab (not shown) 45085
|
£5.68
|
Add
|
|
025
|
45086-AF
|
Terminal, .25 Female Tab (not shown) 45086
|
£6.20
|
Add
|
|
026
|
45016-AF
|
ASSY SPRAY GUN 45016
|
£132.03
|
Add
|
|
027
|
45023-AF
|
HOSE, 3/8 ID (12'6" LG)
|
£68.26
|
Add
|
|
028
|
45026-AF
|
CLAMP (RED)
|
£5.85
|
Add
|
