FG318_4300

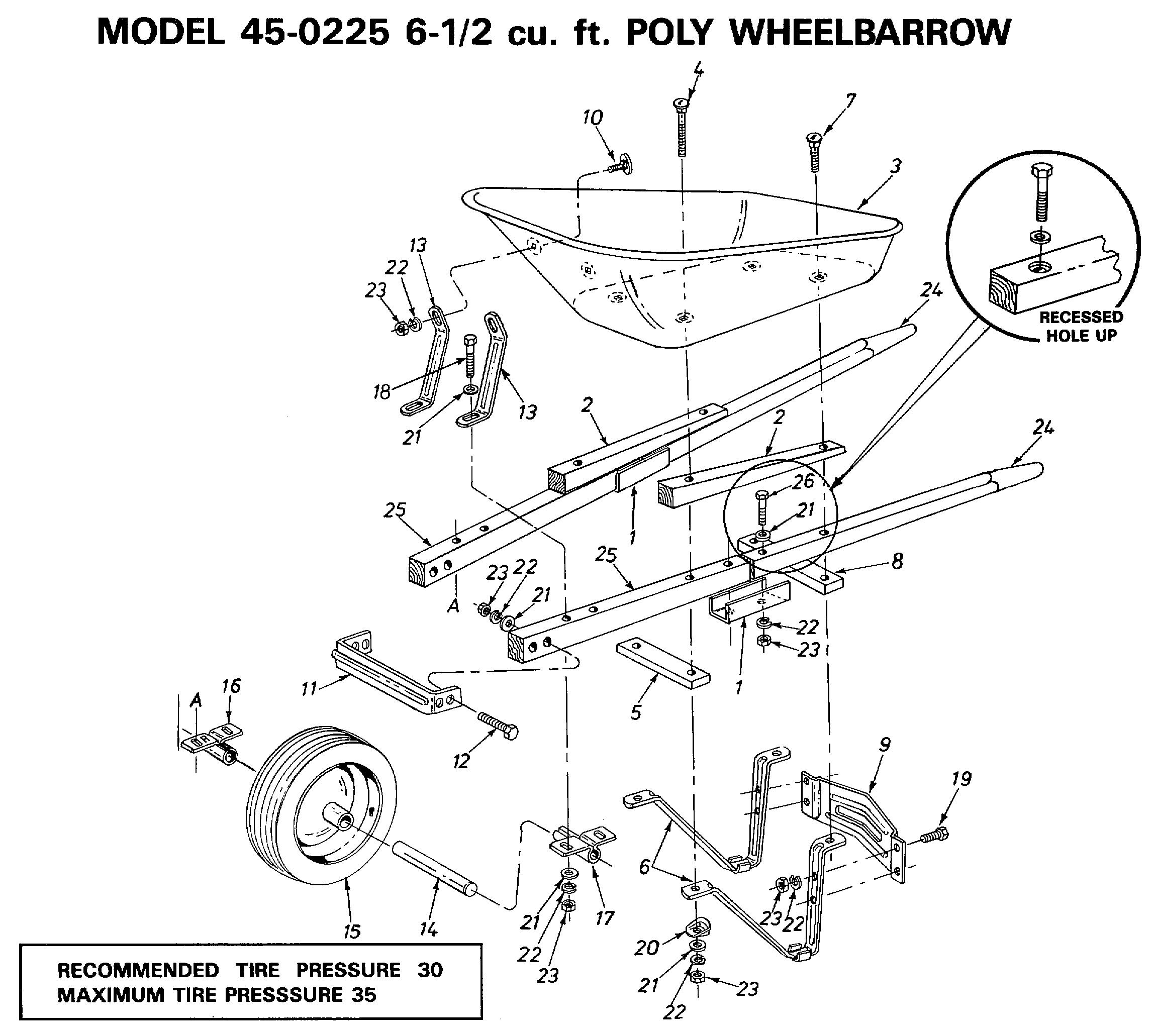

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
	44996-AF	OWNERS MANUAL	N/A	POA
001	44881-AF	HANDLE BRACE	N/A	POA
002	44923-AF	WEDGE, WOOD	N/A	POA
003	44201-AF	TRAY, POLY	N/A	POA
004	44198-AF	BOLT, CARRIAGE PLTD 5/16"-18 X 5" LONG	N/A	POA
005	44991-AF	SHORT STAY	N/A	POA
006	44192-AF	LEG, CHANNEL	N/A	POA
007	44199-AF	BOLT, CARRIAGE 5/16"-18X4"	N/A	POA
008	44990-AF	LONG STAY	N/A	POA
009	44194-AF	LEG BRACE	N/A	POA
010	44202-AF	BOLT, ELEVATOR HEAD	N/A	POA
011	44195-AF	WHEEL GUARD BRACKET	N/A	POA
012	44180-AF	BOLT HEX HEAD	£4.92	Add
013	44186-AF	TRAY BRACE	N/A	POA
014	44196-AF	AXLE, 5/8"	N/A	POA
015	44197-AF	WHEEL AND TIRE ASS'Y.	N/A	POA
016	44205-AF	AXLE BRACKET, R.H.	N/A	POA
017	44223-AF	AXLE BRACKET, L.H.	N/A	POA
018	44179-AF	BOLT, HEX 5/16-18 X 2-1/2" LG.	N/A	POA
019	43182-AF	Hex Bolt, 5/16" x 3/4" 43182	£4.31	Add
020	44204-AF	SPACER, SPECIAL SQUARE WEDGE	N/A	POA
021	43081-AF	FLAT WASHER	£3.49	Add
022	43086-AF	Lock Washer, 5/16" 43086	£3.48	Add
023	43083-AF	HEX NUT	£3.32	Add
024	44921-AF	HANDLE, (GRIP)	N/A	POA
025	44922-AF	HANDLE, (FRONT)	N/A	POA
026	43224-AF	BOLT	£5.85	Add
