FG318_3800

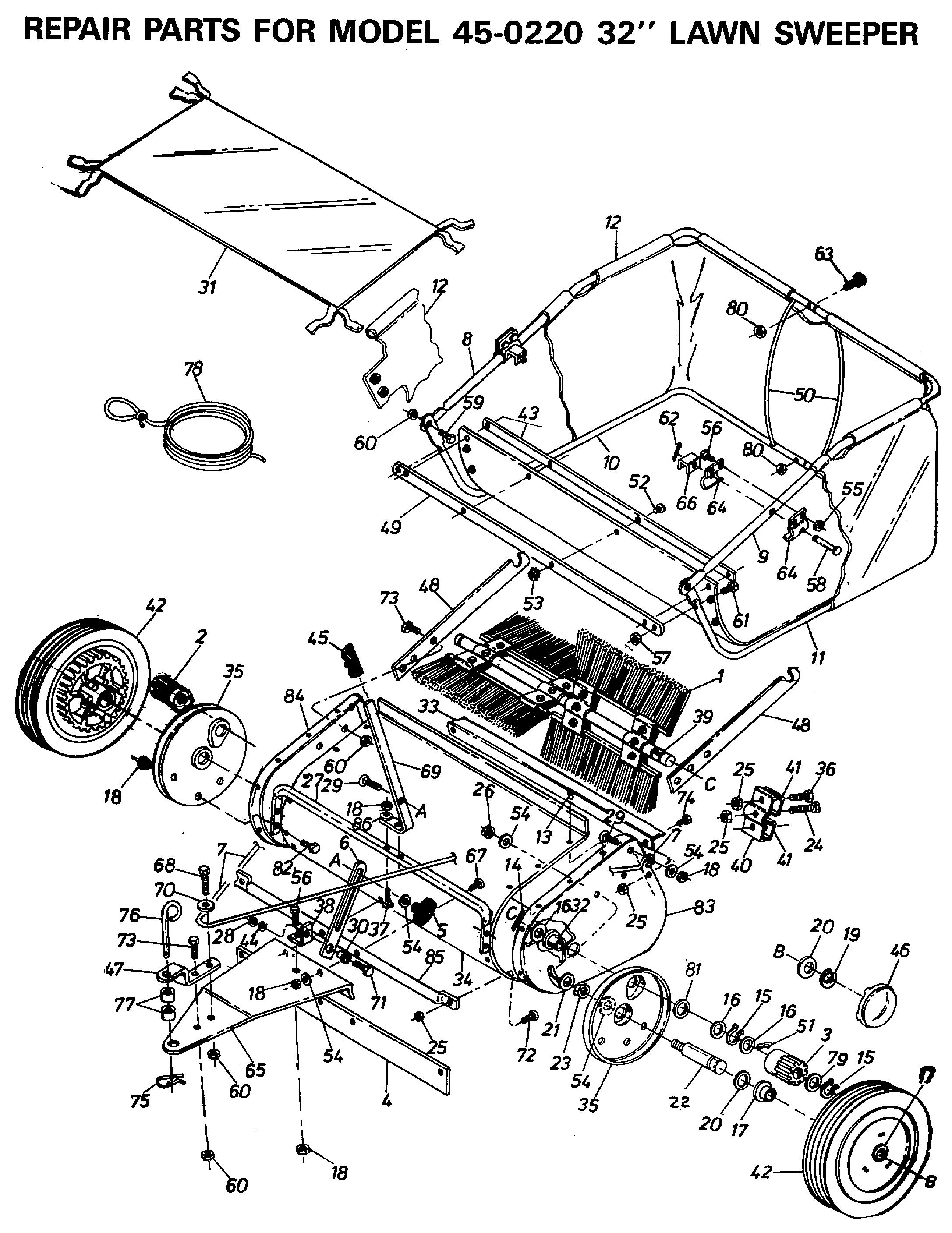

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
	44952-AF	OWNER'S MANUAL	N/A	POA
001	43903-AF	BRUSH, 32 IN SWEEP 43903	£23.03	Add
002	43886-AF	Gear, Pinion R.H. (not shown) 43886	£23.48	Add
003	43885-AF	PINION LH 11TEETH	£21.85	Add
004	44951-AF	SCHUTZLEISTE VINYL 44951	£22.22	Add
005	43720-AF	KNOB (RED)	£7.83	Add
006	23851-AF	STELLSCHIENE 23851	£11.94	Add
007	44964-AF	STRAP:LIFT HANDLE SUPPORT 44964	£19.44	Add
008	43928-AF	RAHMENROHR OBEN RE. 43928	£44.42	Add
009	43927-AF	RAHMENROHR OBEN LI. 43927	£47.13	Add
010	43930-AF	TUBE, HOPPER LOWER R.H. 32" AF-43930	£43.76	Add
011	43929-AF	LOWER HOPPER TUBE RIGHT AF-43929	£46.50	Add
012	43650-AF	ASSY HOPPER BAG 43650	£218.41	Add
013	C-9M5732	Pop Rivet (OBSOLETE) (OBSOLETE) (OBSOLETE)	N/A	POA
014	43659-AF	PIN, SPRING 3/16x1 AF-43659	£3.48	Add
015	AF-1650-21	RETAINING RING	£2.61	Add
016	40001-AF	Washer, Shim 1-1/8" x .594" x .025" 44007-AF	£3.58	Add
017	741-0249	BEARING	£8.44	Add
018	712-0158	NUT, HEX CENTER LOCK, 5/16-18	£9.35	Add
019	716-0106-	"E"-RING 5/8"	N/A	POA
020	44125-AF	Washer, Flat .62" x 1.00" 44125	£4.05	Add
021	736-0101	WASH:FLAT:.406 X 1.00 X .030	£12.63	Add
022	44598-AF	Axle 44598	£11.94	Add
023	44684-AF	Jam Nut, 3/8-24 Thread 44684	£4.05	Add
024	43661-AF	HEX BOLT	£3.11	Add
025	712-0291	LOCK-NUT	£2.77	Add
026	1038-AF	Nut, Nylock 3/8-24 Thread 1038	£3.48	Add
027	44906-AF	ADJUSTING BAIL 44906	£40.31	Add
028	43083-AF	HEX NUT	£3.32	Add
029	43080-AF	CARRIAGE BOLT	£3.49	Add
030	23400-AF	SPACER	£5.85	Add
031	43686-AF	BAG 43686	£29.60	Add
032	44909-AF	BRUSH SHAFT	£6.85	Add
033	23853-AF	BRACKET, GATE SLIDE ANGLE 23853	£18.25	Add
034	23848-AF	WRAPPER	£126.34	Add
035	25102-AF	Dust Cover	£13.50	Add
036	43012-AF	BOLT	£3.32	Add
037	44947-AF	Bolt, Curved Head 5/16-18 x 1-5/8" 44947	£4.05	Add
038	23869-AF	BRACKET, GATE SLIDE ANGLE 23869	£4.05	Add
039	23871-AF	SHAFT, BRUSH 32 IN SWEEP 23871	£87.00	Add
040	23580-AF	BRUSH RETAINER 42-0197	£9.24	Add
041	23581-AF	BRUSH RETAINER 42-0197	£5.45	Add
042	44930-AF	WHEEL ASSY 38" SWEEPER	£70.41	Add
043	23345-AF	RUBBER STRIP AF-23345	£18.60	Add
044	43086-AF	Lock Washer, 5/16" 43086	£3.48	Add
045	43943-AF	Handle Grip 43943	£8.46	Add
046	2674-32-AF	Hub Cap 2674-32	N/A	POA
047	23014-AF	HITCH BRACKET	£31.67	Add
048	23812-AF	ARM, BAG MT LG 23812	£25.40	Add
049	23351-AF	STRAP, BAG FRAME 32 IN AF-23351	£25.88	Add
050	43926-AF	HOPPER SUPPORT ROD	£8.99	Add
051	1671-1-AF	PAWL MOD 60 1671-1	£11.82	Add
052	43346-AF	Truss Head Bolt, #10- 32 x 5/8" 43346	£3.48	Add
053	43662-AF	Lock Nut, 10-32 43662	£3.73	Add
054	43081-AF	FLAT WASHER	£3.49	Add
055	712-0158	NUT, HEX CENTER LOCK, 5/16-18	£9.35	Add
056	43182-AF	Hex Bolt, 5/16" x 3/4" 43182	£4.31	Add
057	712-0291	LOCK-NUT	£2.77	Add
058	43513-AF	CLEVIS PIN (RED)	£8.53	Add
059	43407-AF	Bolt, Hex 3/8-16 x 3/4" Lg. * 43407	£3.91	Add
060	43082-AF	HEX LOCK NUT	£4.12	Add
061	1509-090	NO LONGER AVAILABLE	N/A	POA
062	714-0474	PIN (RED)	£3.20	Add
063	43978-AF	Bolt, Curved 1.4-20 x 1" 43978	£4.05	Add
064	23331-AF	THROTTLE CABLE CLIP 23331	£12.01	Add
065	23868-AF	TONGUE, HITCH 23868	£116.34	Add
066	23354-AF	BAIL 23354	£11.94	Add
067	43681-AF	Bolt, Carriage 5/16-18 x 1-1/2" 43681	£3.48	Add
068	43062-AF	BOLT 3/8-16 X 1-1/2 HEX HEAD 43062	£4.99	Add
069	23850-AF	Handle, Height Adjustment 23850	£28.31	Add
070	R19172410-AF	WASHER-FLAT AF-R19172410	N/A	POA
071	43814-AF	SLOTTED TRUSS HEADBOLT(5/16-18x3/4)	£3.11	Add
072	44950-AF	BOLT	£3.62	Add
073	43407-AF	Bolt, Hex 3/8-16 x 3/4" Lg. * 43407	£3.91	Add
074	43175-AF	Hex Bolt, 1/4-20 x 1/2" * 43175	£4.15	Add
075	43343-AF	PIN COTTER	£4.20	Add
076	23353-AF	HITCH PIN	£19.20	Add
077	23368-AF	Tube, Hitch Spacer 23368	£8.18	Add
078	43737-AF	Hopper Rope 43737	£5.99	Add
079	44006-AF	WASHER	£5.01	Add
080	44013-AF	END PLATE 44013	£48.64	Add
081	736-0287	FLAT WASHER .78" X 1.25" X .062"	£7.92	Add
082	44692-AF	Bolt, Hex 5/16-18 x 1/2" Lg. 44692	£4.05	Add
083	23845-AF	PANEL-LH SIDE CUB BEIGE 23845	£23.39	Add
084	23846-AF	SIDE PANEL CART EXTENSION RH 23846	£55.92	Add
085	44903-AF	HITCH TUBE	N/A	POA
086	44695-AF	Washer, Bowed 44695	£4.05	Add
