FG318_2100

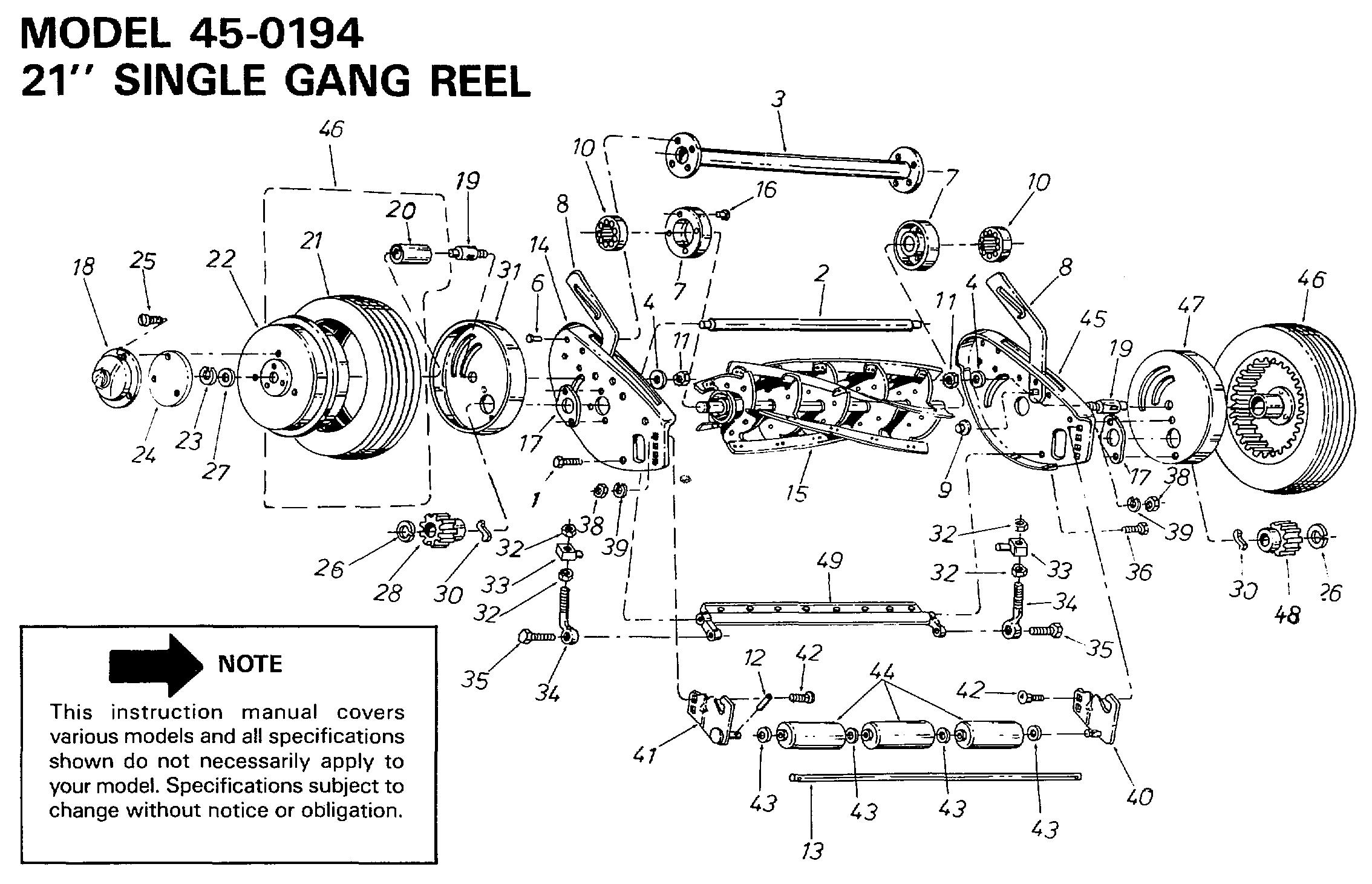

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG318_2100

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 710-0942 NO LONGER AVAILABLE N/A POA
002 2624-110-AF SPACER END PLATE 2624-110 N/A POA
003 1112-015 SPACER TUBE ASS 21 INCH £48.76 Add
004 1657-19 STEP BUSHING N/A POA
006 44060-AF RIVET 3/16 X 3/8 PLTD £3.28 Add
007 1629-28-AF RETAINER 1629-028 N/A POA
008 1609-217 TRANSPORT BRKT. N/A POA
009 44166-AF NUT-1/2" CAP PUSH £6.88 Add
010 44232-AF BALL BEARING £35.66 Add
011 44738-AF Nut, Hex Lock 5/16-24 "Unitork" 44738 £3.91 Add
012 1548-7-AF ROLL PIN 1548-007 £3.90 Add
013 AF-1632-84 ROLLER SHAFT £73.26 Add
014 1129-180 END PLATE TRUNNION £146.50 Add
015 62592-AF REEL ASS'Y. - 21" 3135-036 N/A POA
016 9-0-AF RIVET 3/16 X 13/32 RD. HD. N/A POA
017 1629-009 BEARING RETAINER £4.64 Add
018 2674-27-AF HUB CAP 2674-027 N/A POA
019 1631-51-AF AXLE 1631-051 N/A POA
020 AF-1652-52 bush 1652-052 N/A POA
021 2619-34-AF TIRE 2619-034 N/A POA
022 1110-30-AF DRIVE WHEEL - LESS TIRE 1110-030 N/A POA
023 716-0104 RETAINING RING 1650-001 £3.58 Add
024 2718-3-AF WHEEL WEIGHT 2718-003 N/A POA
025 1511-029 SCREW £3.61 Add
026 AF-1650-21 RETAINING RING £2.61 Add
027 1540-118-AF WASHER, FLAT 1-1/4x17/32x1/16 AF-1540-118 N/A POA
028 428-AF PINION GEAR - L.H. 0428-000 (OBSOLETE) N/A POA
030 0323-000 NO LONGER AVAILABLE N/A POA
031 1118-14-AF GEARING HOUSING - L.H. 1118-014 N/A POA
032 712-0241 HEX NUT 3/8-24 £2.79 Add
033 0011-000 TRUNNION (DNR) £36.40 Add
034 0451-000 NO LONGER AVAILABLE N/A POA
035 0453-000 SCREW REAR £13.99 Add
036 AF-455 SCREW £17.75 Add
038 43083-AF HEX NUT £3.32 Add
039 43086-AF Lock Washer, 5/16" 43086 £3.48 Add
040 AF-2132-45 ROLLER BRKT RH £44.36 Add
041 2132-44-AF ROLLER BRKT. - L.H. 2132-044 N/A POA
042 43079-AF CARR, BOLT 5/16-18 X 1 £3.22 Add
043 R19171616-AF WASHER 17/32X1X16GA £3.76 Add
044 1658-012 ROLLER - 3 REQUIRED £54.15 Add
045 1129-181 END PLATE RH £10.90 Add
046 AF-1108-95 NO LONGER AVAILABLE N/A POA
047 1118-013 GEAR HOUSING RH £66.11 Add
048 0425-000 NO LONGER AVAILABLE N/A POA
049 AF-3134-24 NO LONGER AVAILABLE N/A POA
