Parts list

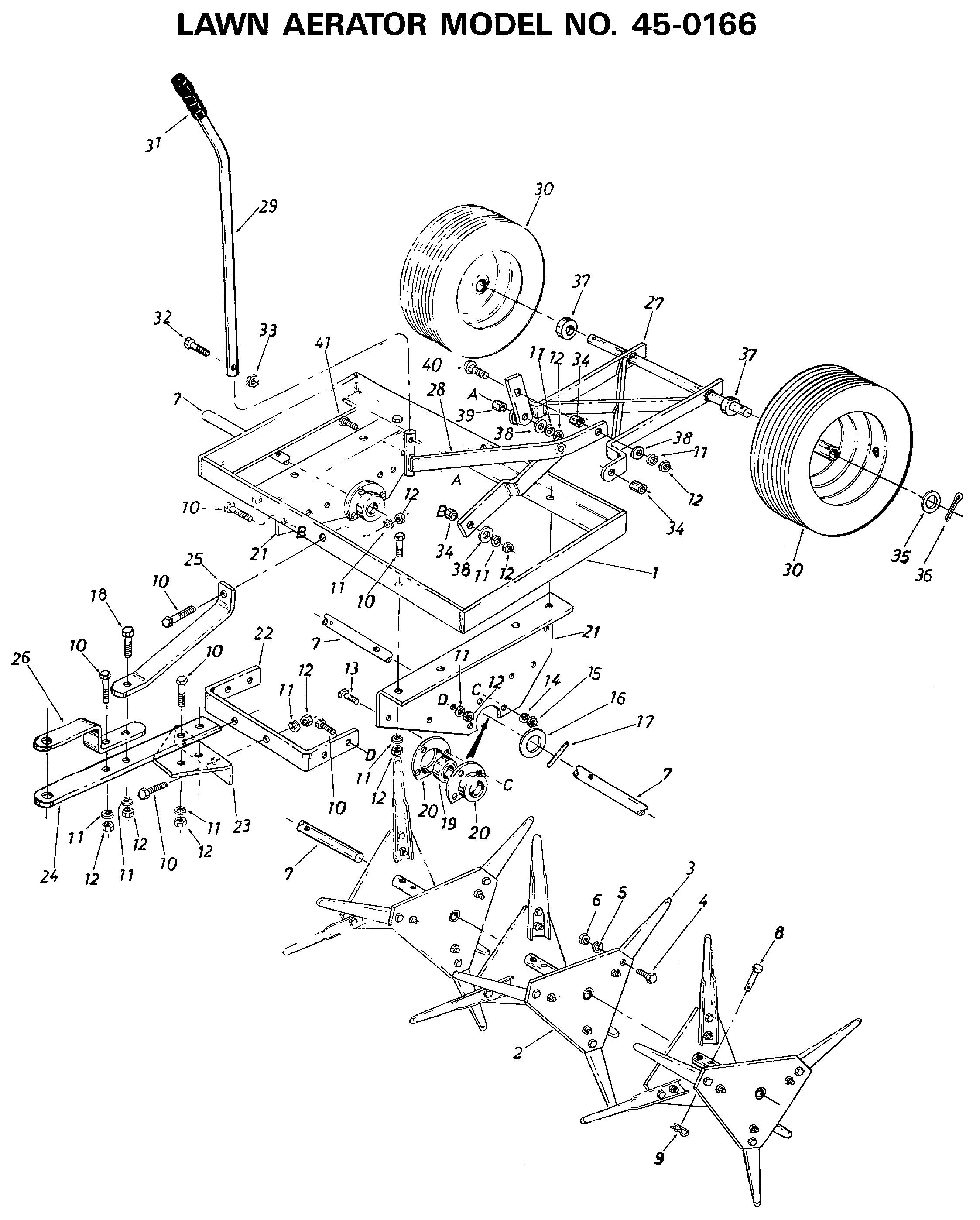

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
001
|
62289-AF
|
FRAME ASSEMBLY
|
N/A
|
POA
|
|
002
|
62096-AF
|
Spool 092.34.112
|
£209.55
|
Add
|
|
003
|
23084-AF
|
MESSERFLÜGEL 23084
|
£12.88
|
Add
|
|
004
|
43182-AF
|
Hex Bolt, 5/16" x 3/4" 43182
|
£4.31
|
Add
|
|
005
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
006
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
007
|
23226-AF
|
Shaft 092.34.114
|
£65.74
|
Add
|
|
008
|
43023-AF
|
CLEVIS PIN 092.34.115
|
£12.69
|
Add
|
|
009
|
43055-AF
|
COTTER PIN
|
£6.04
|
Add
|
|
010
|
43001-AF
|
HEX BOLT (RED)
|
£3.49
|
Add
|
|
011
|
736-0169
|
L. WASHER
|
£2.89
|
Add
|
|
012
|
43082-AF
|
HEX LOCK NUT
|
£4.12
|
Add
|
|
013
|
43012-AF
|
BOLT
|
£3.32
|
Add
|
|
014
|
43177-AF
|
Washer, Lock 1/4" I.D.* 43177
|
£3.08
|
Add
|
|
015
|
712-0291
|
LOCK-NUT
|
£2.77
|
Add
|
|
016
|
43025-AF
|
Washer 092.34.117
|
£4.50
|
Add
|
|
017
|
43488-AF
|
PIN, ROLL 3/16x1-5/8 092.34.118
|
£4.39
|
Add
|
|
018
|
43087-AF
|
Hex Bolt, 3/8-16 x 1-1/4" Long 43087
|
£4.58
|
Add
|
|
019
|
44673-AF
|
BEARING, BALL
|
N/A
|
POA
|
|
020
|
05794-AF
|
FLANGED BEARING HOUSING
|
N/A
|
POA
|
|
021
|
23494-AF
|
BRACKET, FRAME SIDE
|
£74.73
|
Add
|
|
022
|
23446-AF
|
YOKE, HITCH MOUNT
|
£46.65
|
Add
|
|
023
|
23447-AF
|
PLATE, HITCH BAR MOUNT
|
£32.06
|
Add
|
|
024
|
23448-AF
|
BAR, HITCH
|
£33.01
|
Add
|
|
025
|
23449-AF
|
BRACE, HITCH
|
£27.59
|
Add
|
|
026
|
23014-AF
|
HITCH BRACKET
|
£31.67
|
Add
|
|
027
|
62441-AF
|
Wheel axle frame 092.34.127
|
£265.88
|
Add
|
|
028
|
62442-AF
|
Lift arm 092.34.128
|
£126.05
|
Add
|
|
029
|
23458-AF
|
Lever 092.34.129
|
N/A
|
POA
|
|
030
|
43756-AF
|
Wheel assy. 092.34.130
|
£107.05
|
Add
|
|
031
|
43362-AF
|
HANDLE GRIP AF 43362
|
£4.50
|
Add
|
|
032
|
43840-AF
|
HEX BOLT
|
£3.49
|
Add
|
|
033
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
034
|
23519-AF
|
SLEEVE 092.34.133
|
£11.76
|
Add
|
|
035
|
43754-AF
|
WASHER 21 092.34.134
|
£4.02
|
Add
|
|
036
|
43010-AF
|
COTTER PIN
|
£3.49
|
Add
|
|
037
|
23520-AF
|
SPACER, WHEEL
|
£19.36
|
Add
|
|
038
|
43070-AF
|
Washer, 3/8"
|
£3.91
|
Add
|
|
039
|
23537-AF
|
SPACER, 13/32 I.D. X 9/16" O.D. X 19/32" LG.
|
£9.90
|
Add
|
|
040
|
710-0431
|
SREW: M5X20-8.8:DIN 603 092.34.137
|
£14.89
|
Add
|
|
041
|
43062-AF
|
BOLT 3/8-16 X 1-1/2 HEX HEAD 43062
|
£4.99
|
Add
|
