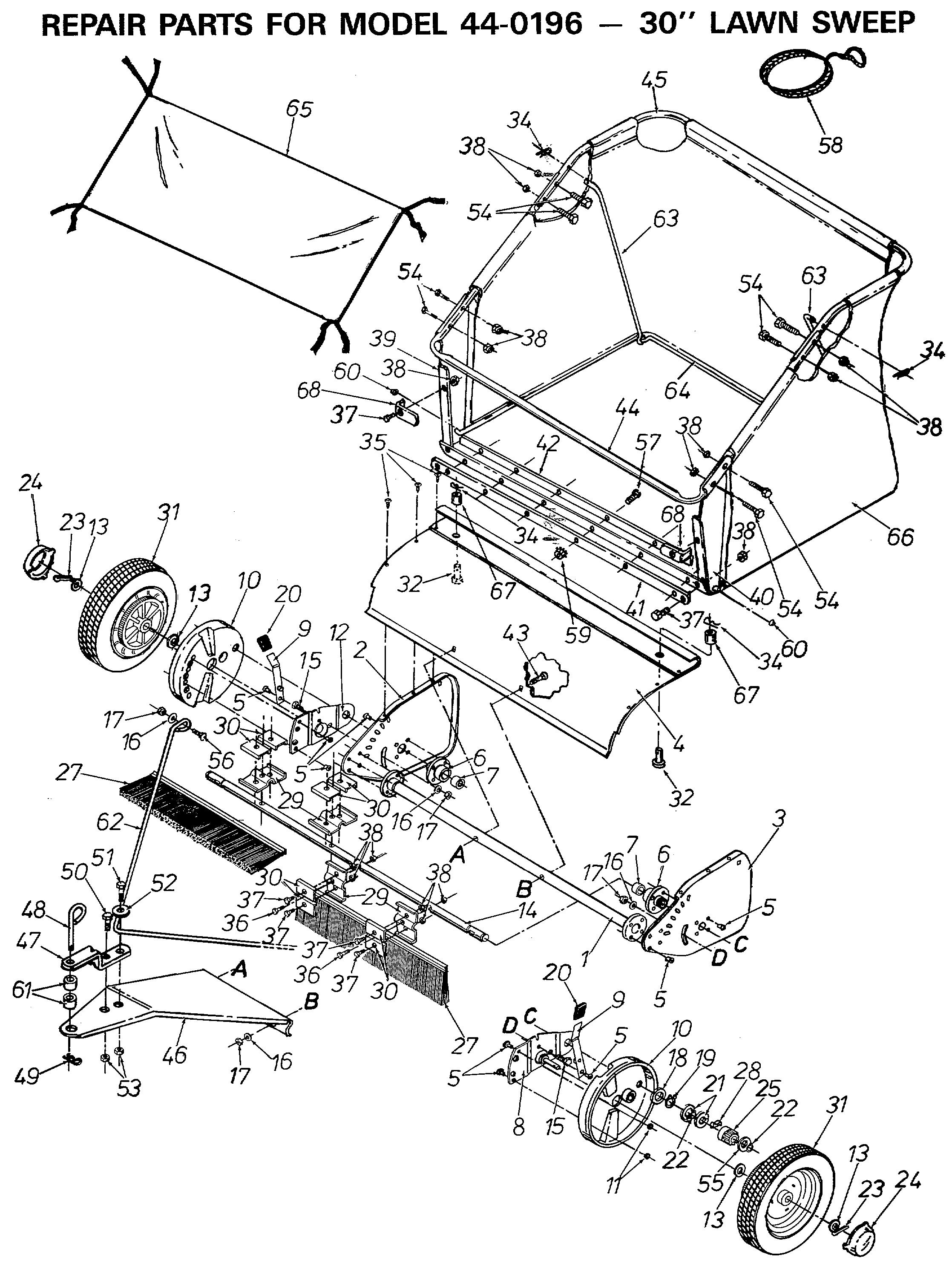

Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
44328-AF
|
OWNER'S MANUAL
|
N/A
|
POA
|
|
001
|
62493-AF
|
SUB-ASS'Y. HITCH TUBE & FLANGES
|
£59.15
|
Add
|
|
002
|
23562-AF
|
END PLATE, R.H.
|
£35.35
|
Add
|
|
003
|
23563-AF
|
END PLATE, L.H.
|
£37.54
|
Add
|
|
004
|
23578-AF
|
WRAPPER, SWEEPER HOUSING
|
£74.70
|
Add
|
|
005
|
C-9M5732
|
Pop Rivet (OBSOLETE) (OBSOLETE) (OBSOLETE)
|
N/A
|
POA
|
|
006
|
62488-AF
|
ASS'Y. BRUSH BUSHING WLDM.
|
£47.32
|
Add
|
|
007
|
1652-1-AF
|
BUSHING BRONZE
|
N/A
|
POA
|
|
008
|
62495-AF
|
RADACHSE LI. 62495
|
£44.77
|
Add
|
|
009
|
1155-47
|
ASS'Y. SPRING
|
N/A
|
POA
|
|
010
|
43900-AF
|
COVER-HARD TOP 43900
|
£27.59
|
Add
|
|
011
|
43910-AF
|
Washer, Flat #10 SAE 43910
|
£3.19
|
Add
|
|
012
|
62494-AF
|
RADACHSE RE. 62494
|
£44.77
|
Add
|
|
013
|
44137-AF
|
Washer, Flat 1/2" I.D. 44137
|
£2.60
|
Add
|
|
014
|
23567-AF
|
Brush Shaft 23567
|
£168.59
|
Add
|
|
015
|
43182-AF
|
Hex Bolt, 5/16" x 3/4" 43182
|
£4.31
|
Add
|
|
016
|
43081-AF
|
FLAT WASHER
|
£3.49
|
Add
|
|
017
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
018
|
44008-AF
|
WASHER
|
£3.24
|
Add
|
|
019
|
43655-AF
|
SPANNRING.75" 43655
|
£4.15
|
Add
|
|
020
|
1643-60
|
KNOB
|
N/A
|
POA
|
|
021
|
40001-AF
|
Washer, Shim 1-1/8" x .594" x .025" 44007-AF
|
£3.58
|
Add
|
|
022
|
AF-1650-21
|
RETAINING RING
|
£2.61
|
Add
|
|
023
|
714-0474
|
PIN (RED)
|
£3.20
|
Add
|
|
024
|
2674-32-AF
|
Hub Cap 2674-32
|
N/A
|
POA
|
|
025
|
43885-AF
|
PINION LH 11TEETH
|
£21.85
|
Add
|
|
026
|
43886-AF
|
Gear, Pinion R.H. (not shown) 43886
|
£23.48
|
Add
|
|
027
|
43902-AF
|
BRUSH
|
£20.16
|
Add
|
|
028
|
1671-1-AF
|
PAWL MOD 60 1671-1
|
£11.82
|
Add
|
|
029
|
23580-AF
|
BRUSH RETAINER 42-0197
|
£9.24
|
Add
|
|
030
|
23581-AF
|
BRUSH RETAINER 42-0197
|
£5.45
|
Add
|
|
031
|
43987-AF
|
WHEEL RIM, GEAR & TIRE 1-3/4"
|
£60.67
|
Add
|
|
032
|
43982-AF
|
PIN, CLEVIS 1/4" X 5/8" 43982
|
£4.58
|
Add
|
|
034
|
43055-AF
|
COTTER PIN
|
£6.04
|
Add
|
|
035
|
1522-1-AF
|
SCREW(10-12 X 5/8 SHEET METAL)
|
N/A
|
POA
|
|
036
|
43661-AF
|
HEX BOLT
|
£3.11
|
Add
|
|
037
|
43012-AF
|
BOLT
|
£3.32
|
Add
|
|
038
|
712-0291
|
LOCK-NUT
|
£2.77
|
Add
|
|
039
|
23582-AF
|
BRACKET, HOPPER L.H.
|
N/A
|
POA
|
|
040
|
23583-AF
|
BRACKET, HOPPER L.H.
|
N/A
|
POA
|
|
041
|
23584-AF
|
STRAP, HOPPER
|
£20.54
|
Add
|
|
042
|
23725-AF
|
RETAINER, HOPPER STRAP
|
£20.28
|
Add
|
|
043
|
43681-AF
|
Bolt, Carriage 5/16-18 x 1-1/2" 43681
|
£3.48
|
Add
|
|
044
|
43906-AF
|
TUBE, HOPPER (LOWER)
|
£57.35
|
Add
|
|
045
|
43907-AF
|
TUBE, HOPPER (UPPER)
|
£49.76
|
Add
|
|
046
|
23586-AF
|
TONGUE, HITCH
|
£47.12
|
Add
|
|
047
|
23014-AF
|
HITCH BRACKET
|
£31.67
|
Add
|
|
048
|
23353-AF
|
HITCH PIN
|
£19.20
|
Add
|
|
049
|
43343-AF
|
PIN COTTER
|
£4.20
|
Add
|
|
050
|
43001-AF
|
HEX BOLT (RED)
|
£3.49
|
Add
|
|
051
|
43087-AF
|
Hex Bolt, 3/8-16 x 1-1/4" Long 43087
|
£4.58
|
Add
|
|
052
|
R19172410-AF
|
WASHER-FLAT AF-R19172410
|
N/A
|
POA
|
|
053
|
43082-AF
|
HEX LOCK NUT
|
£4.12
|
Add
|
|
054
|
43661-AF
|
HEX BOLT
|
£3.11
|
Add
|
|
055
|
44006-AF
|
WASHER
|
£5.01
|
Add
|
|
056
|
43080-AF
|
CARRIAGE BOLT
|
£3.49
|
Add
|
|
057
|
43346-AF
|
Truss Head Bolt, #10- 32 x 5/8" 43346
|
£3.48
|
Add
|
|
058
|
43737-AF
|
Hopper Rope 43737
|
£5.99
|
Add
|
|
059
|
43662-AF
|
Lock Nut, 10-32 43662
|
£3.73
|
Add
|
|
060
|
726-0106
|
CAP SPEED NUT
|
£3.33
|
Add
|
|
061
|
23368-AF
|
Tube, Hitch Spacer 23368
|
£8.18
|
Add
|
|
062
|
43979-AF
|
STRAP:LIFT HANDLE SUPPORT 43979
|
£21.81
|
Add
|
|
063
|
43954-AF
|
ROD, HOPPER SUPPORT
|
£26.99
|
Add
|
|
064
|
43955-AF
|
ROD, HOPPER FRAME (BOTTOM)
|
N/A
|
POA
|
|
065
|
43686-AF
|
BAG 43686
|
£29.60
|
Add
|
|
066
|
44327-AF
|
BAG, HOPPER 30"
|
£185.26
|
Add
|
|
067
|
23727-AF
|
Spacer 23727
|
£7.12
|
Add
|
|
068
|
23726-AF
|
HOPPER BAG STOP BRACKET
|
N/A
|
POA
|
