Parts list

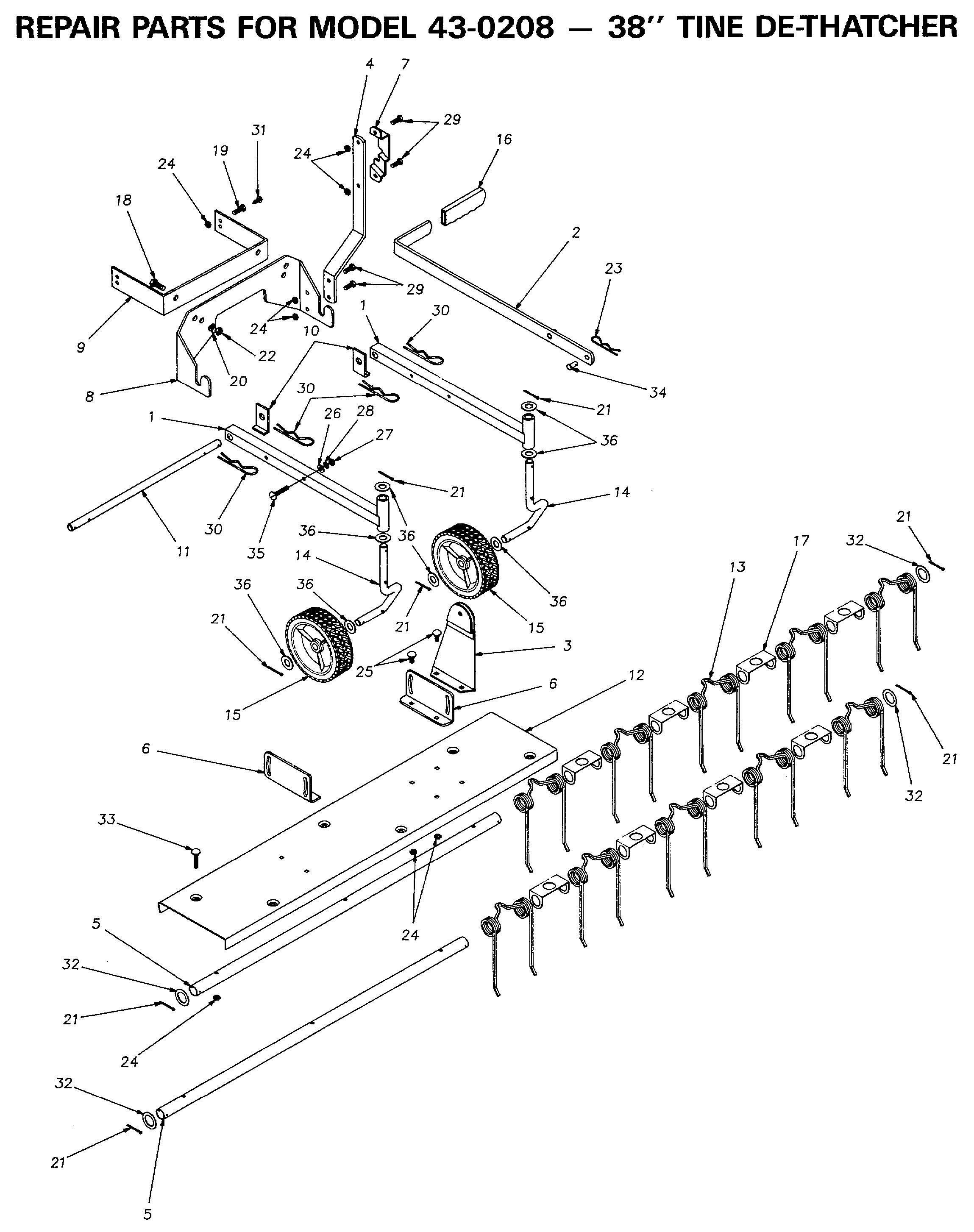

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
Ref |
No |
Description |
Price |
|
|
44252-AF
|
OWNERS MANUAL
|
N/A
|
POA
|
001
|
62599-AF
|
ASS'Y. MOUNTING ARM
|
N/A
|
POA
|
002
|
62600-AF
|
ASS'Y. LIFT HANDLE
|
N/A
|
POA
|
003
|
62601-AF
|
ASS'Y. LIFT HANDLE BRACKET
|
N/A
|
POA
|
004
|
23674-AF
|
ARM, LIFT HANDLE
|
N/A
|
POA
|
005
|
23665-AF
|
TUBE, SPRING MOUNTING
|
N/A
|
POA
|
006
|
23666-AF
|
BRACKET, ANGLE MOUNTING
|
N/A
|
POA
|
007
|
23673-AF
|
BRACKET, HANDLE LOCK
|
£12.88
|
Add
|
008
|
23675-AF
|
BRACKET, HITCH
|
N/A
|
POA
|
009
|
23698-AF
|
BRACKET, HITCH EXTENSION
|
N/A
|
POA
|
010
|
23676-AF
|
KEEPER, PLATE
|
N/A
|
POA
|
011
|
23677-AF
|
SHAFT, MOUNTING
|
N/A
|
POA
|
012
|
23678-AF
|
SHIELD, SPRING MOUNTING
|
N/A
|
POA
|
013
|
43783-AF
|
SPRING TINE
|
£14.01
|
Add
|
014
|
44148-AF
|
AXLE
|
N/A
|
POA
|
015
|
44238-AF
|
WHEEL ASSY 44238
|
£41.00
|
Add
|
016
|
43943-AF
|
Handle Grip 43943
|
£8.46
|
Add
|
017
|
44207-AF
|
BRACKET, SPRING
|
N/A
|
POA
|
018
|
43001-AF
|
HEX BOLT (RED)
|
£3.49
|
Add
|
019
|
43063-AF
|
BOLT
|
£4.12
|
Add
|
020
|
736-0169
|
L. WASHER
|
£2.89
|
Add
|
021
|
43010-AF
|
COTTER PIN
|
£3.49
|
Add
|
022
|
712-0798
|
HEX. NUT
|
£7.61
|
Add
|
023
|
43055-AF
|
COTTER PIN
|
£6.04
|
Add
|
024
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
025
|
43080-AF
|
CARRIAGE BOLT
|
£3.49
|
Add
|
026
|
43081-AF
|
FLAT WASHER
|
£3.49
|
Add
|
027
|
43083-AF
|
HEX NUT
|
£3.32
|
Add
|
028
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
029
|
43182-AF
|
Hex Bolt, 5/16" x 3/4" 43182
|
£4.31
|
Add
|
030
|
43343-AF
|
PIN COTTER
|
£4.20
|
Add
|
031
|
44057-AF
|
SCREW, THREAD FORMING 5/16" X 1.0" LG.
|
N/A
|
POA
|
032
|
43601-AF
|
WASHER
|
£8.99
|
Add
|
033
|
43681-AF
|
Bolt, Carriage 5/16-18 x 1-1/2" 43681
|
£3.48
|
Add
|
034
|
44044-AF
|
CLEVIS PIN 3/8" X 3/4" LG.
|
N/A
|
POA
|
035
|
44125-AF
|
Washer, Flat .62" x 1.00" 44125
|
£4.05
|
Add
|
036
|
R19212113
|
Washer, 5/8" SAE
|
£5.92
|
Add
|
