FG317_7600

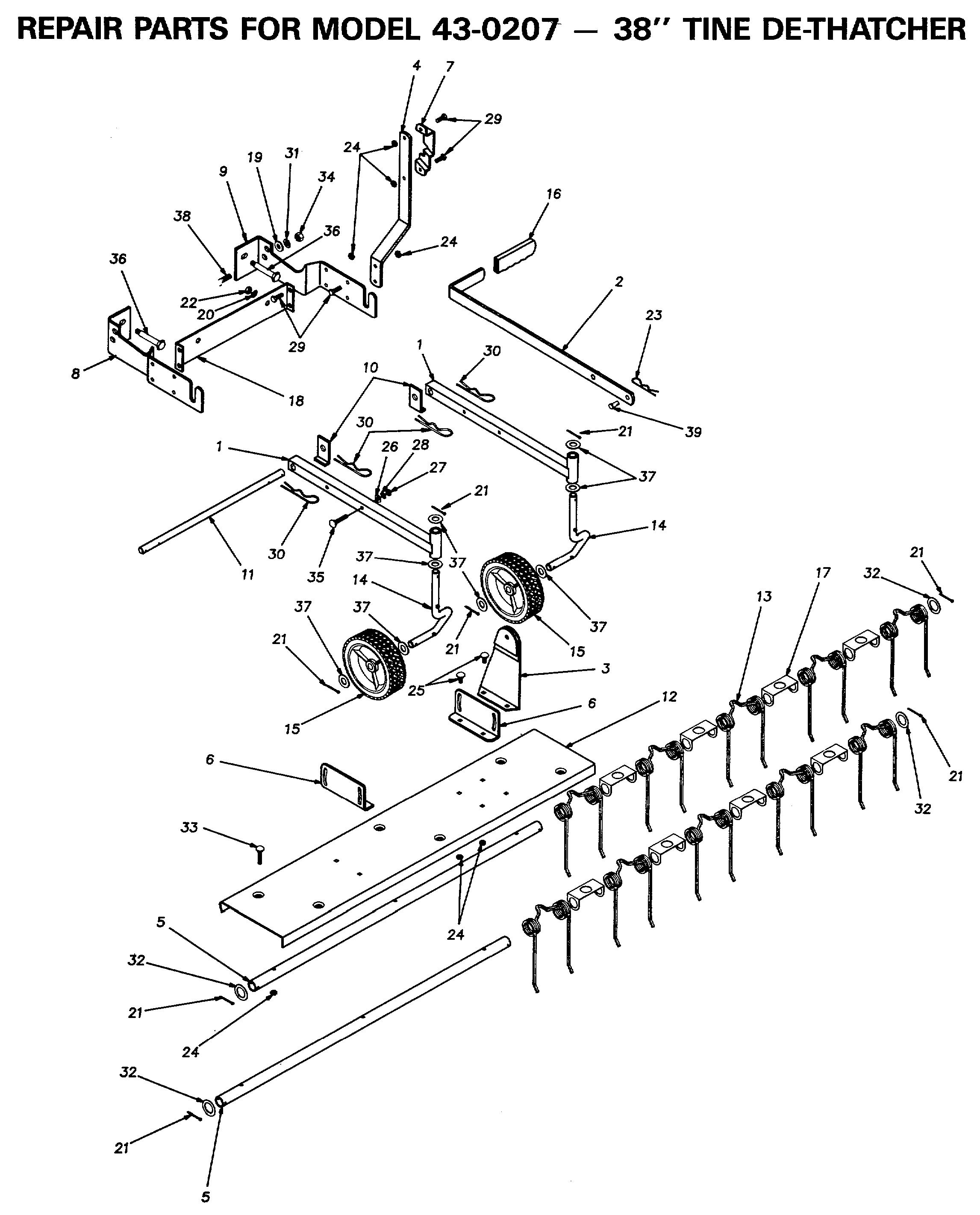

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG317_7600

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
44241-AF OWNERS MANUAL N/A POA
001 62599-AF ASS'Y. MOUNTING ARM N/A POA
002 62600-AF ASS'Y. LIFT HANDLE N/A POA
003 62601-AF ASS'Y. LIFT HANDLE BRACKET N/A POA
004 23674-AF ARM, LIFT HANDLE N/A POA
005 23665-AF TUBE, SPRING MOUNTING N/A POA
006 23666-AF BRACKET, ANGLE MOUNTING N/A POA
007 23673-AF BRACKET, HANDLE LOCK £12.88 Add
008 23686-AF BRACKET, HITCH R.H. N/A POA
009 23685-AF BRACKET, HITCH L.H. N/A POA
010 23676-AF KEEPER, PLATE N/A POA
011 23677-AF SHAFT, MOUNTING N/A POA
012 23678-AF SHIELD, SPRING MOUNTING N/A POA
013 43783-AF SPRING TINE £14.01 Add
014 44148-AF AXLE N/A POA
015 44238-AF WHEEL ASSY 44238 £41.00 Add
016 43943-AF Handle Grip 43943 £8.46 Add
017 44207-AF BRACKET, SPRING N/A POA
018 23688-AF BRACKET, WEIGHT MOUNT N/A POA
019 43070-AF Washer, 3/8" £3.91 Add
020 736-0169 L. WASHER £2.89 Add
021 43010-AF COTTER PIN £3.49 Add
022 712-0798 HEX. NUT £7.61 Add
023 43055-AF COTTER PIN £6.04 Add
024 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £9.35 Add
025 43080-AF CARRIAGE BOLT £3.49 Add
026 43081-AF FLAT WASHER £3.49 Add
027 43083-AF HEX NUT £3.32 Add
028 43086-AF Lock Washer, 5/16" 43086 £3.48 Add
029 43182-AF Hex Bolt, 5/16" x 3/4" 43182 £4.31 Add
030 43343-AF PIN COTTER £4.20 Add
031 43555-AF WASHER 7/16" LOCK N/A POA
032 43601-AF WASHER £8.99 Add
033 43681-AF Bolt, Carriage 5/16-18 x 1-1/2" 43681 £3.48 Add
034 R73220700 Nut, 7/16-14 N/A POA
035 44215-AF Bolt, Carriage 5/16-18 x 1-3/4" 44215 £3.48 Add
036 44237-AF BOLT, SHOULDER 3/8"-16 W/1/2-2-1/4 N/A POA
037 R19212113 Washer, 5/8" SAE £5.92 Add
038 R74760716 BOLT, HEX 7/16"-14 X 1.0" LG. N/A POA
039 44044-AF CLEVIS PIN 3/8" X 3/4" LG. N/A POA
