FG317_6200

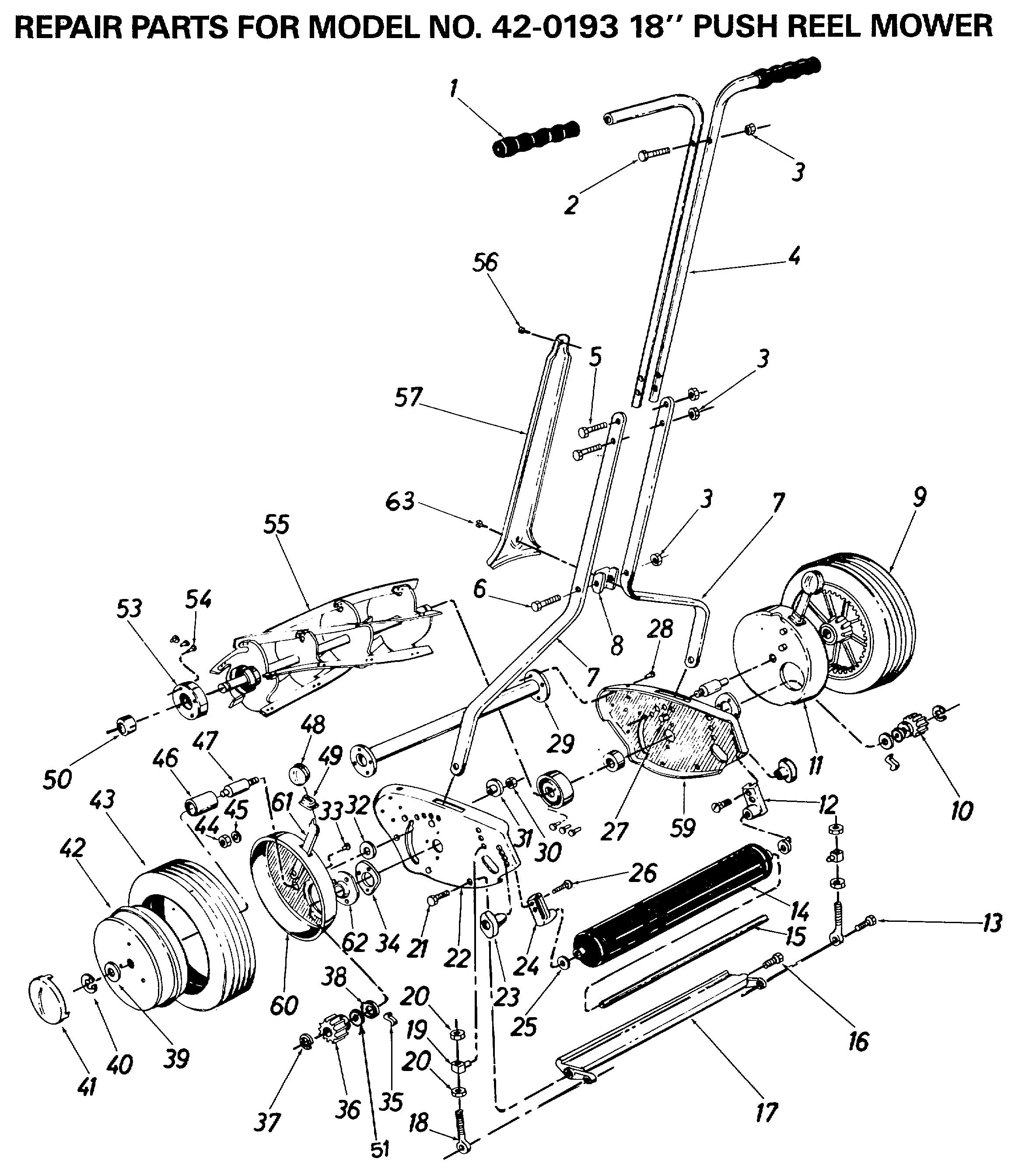

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
	44289-AF	OWNERS MANUAL	N/A	POA
001	07071-AF	GRIP, HANDLE (BLACK)	N/A	POA
002	43084-AF	BOLT	£2.56	Add
003	712-0158	NUT, HEX CENTER LOCK, 5/16-18	£9.35	Add
004	749-0301	UPPER HANDLE	N/A	POA
005	43224-AF	BOLT	£5.85	Add
006	44292-AF	Bolt, Hex 5/16-18 x 2-1/2" Lg. 44179	£4.05	Add
007	3603-043--312	HANDLE BRACE	N/A	POA
008	2624-018	SPACER	N/A	POA
009	1108-080	WHEEL ASSY COMP	£116.61	Add
010	0425-000	NO LONGER AVAILABLE	N/A	POA
011	2118-082	GEAR HOUSING ASS'Y.--R.H.	£92.70	Add
012	1609-708-AF	ROLLER BRKT.--R.H. 1609-708	N/A	POA
013	0453-000	SCREW REAR	£13.99	Add
014	2658-24	18" ROLLER	N/A	POA
015	1632-144	ROLLER SHAFT	N/A	POA
016	710-0942	NO LONGER AVAILABLE	N/A	POA
017	2134-14	CUTTER BAR ASSEMBLY	N/A	POA
018	0451-000	NO LONGER AVAILABLE	N/A	POA
019	0011-000	TRUNNION (DNR)	£36.40	Add
020	712-0241	HEX NUT 3/8-24	£2.79	Add
021	AF-455	SCREW	£17.75	Add
022	3111-131	END PLATE ASS'Y.--L.H.	N/A	POA
023	1643-023	ROLLER ADJ. KNOB	£23.45	Add
024	1609-707-AF	ROLLER BRKT.--L.H. 1609-707	N/A	POA
025	0757-000	FL-WASH. .312" I.D. X .75" O.D.	N/A	POA
026	43682-AF	BOLT, CARRIAGE	£3.11	Add
027	0010-000	TRUNNION (DNR)	£3.59	Add
028	C-9M5732	Pop Rivet (OBSOLETE) (OBSOLETE) (OBSOLETE)	N/A	POA
029	1112-029	SPACER TUBE ASS'Y.	N/A	POA
030	44282-AF	HEX L-NUT 5/16-24 THD.	N/A	POA
031	1657-19-AF	BUSHING 1657-019	N/A	POA
032	736-0195	WASHER 1540-043	£2.93	Add
033	1509-038	HEX SCR (DNR)	£2.72	Add
034	1624-138	RETAINER	£3.59	Add
035	0323-000	NO LONGER AVAILABLE	N/A	POA
036	428-AF	PINION GEAR - L.H. 0428-000 (OBSOLETE)	N/A	POA
037	AF-1650-21	RETAINING RING	£2.61	Add
038	0109-000	FELT WASHER	£6.15	Add
039	1540-118-AF	WASHER, FLAT 1-1/4x17/32x1/16 AF-1540-118	N/A	POA
040	716-0104	RETAINING RING 1650-001	£3.58	Add
041	2674-033	HUB CAP	£7.89	Add
042	1110-027	WHEEL ASS'Y.	N/A	POA
043	2619-025	TIRE	£44.44	Add
044	712-0102	HEX LOCK NUT (AF) 1534-8	£6.39	Add
045	1540-055	WASHER	£2.72	Add
046	AF-1652-52	bush 1652-052	N/A	POA
047	1631-51-AF	AXLE 1631-051	N/A	POA
048	1643-060	KNOB--WHEEL ADJ.	£5.21	Add
049	1622-050	DUST COVER	£3.74	Add
050	HG-44232P	BALL BEARING	£70.26	Add
051	40001-AF	Washer, Shim 1-1/8" x .594" x .025" 44007-AF	£3.58	Add
053	1629-28-AF	RETAINER 1629-028	N/A	POA
054	1530-020	RIVET (DNR)	£2.50	Add
055	2135-046	18" REEL ASS'Y.	N/A	POA
056	1523-003	PAN HD. SCR. #10 X .38 LG.	N/A	POA
057	3622-54	HANDLE PANEL	N/A	POA
059	3111-130	END PLATE ASS'Y.--R.H.	N/A	POA
060	2118-081	GEAR HOUSING ASS'Y.	£92.70	Add
061	1155-47-AF	SPRING AND TRUNNION ASS'Y. 1155-047	N/A	POA
062	1629-041	PINION HOUSING	£4.02	Add
063	44291-AF	PAN HD. SCR. #8 X .75 LG.	N/A	POA
