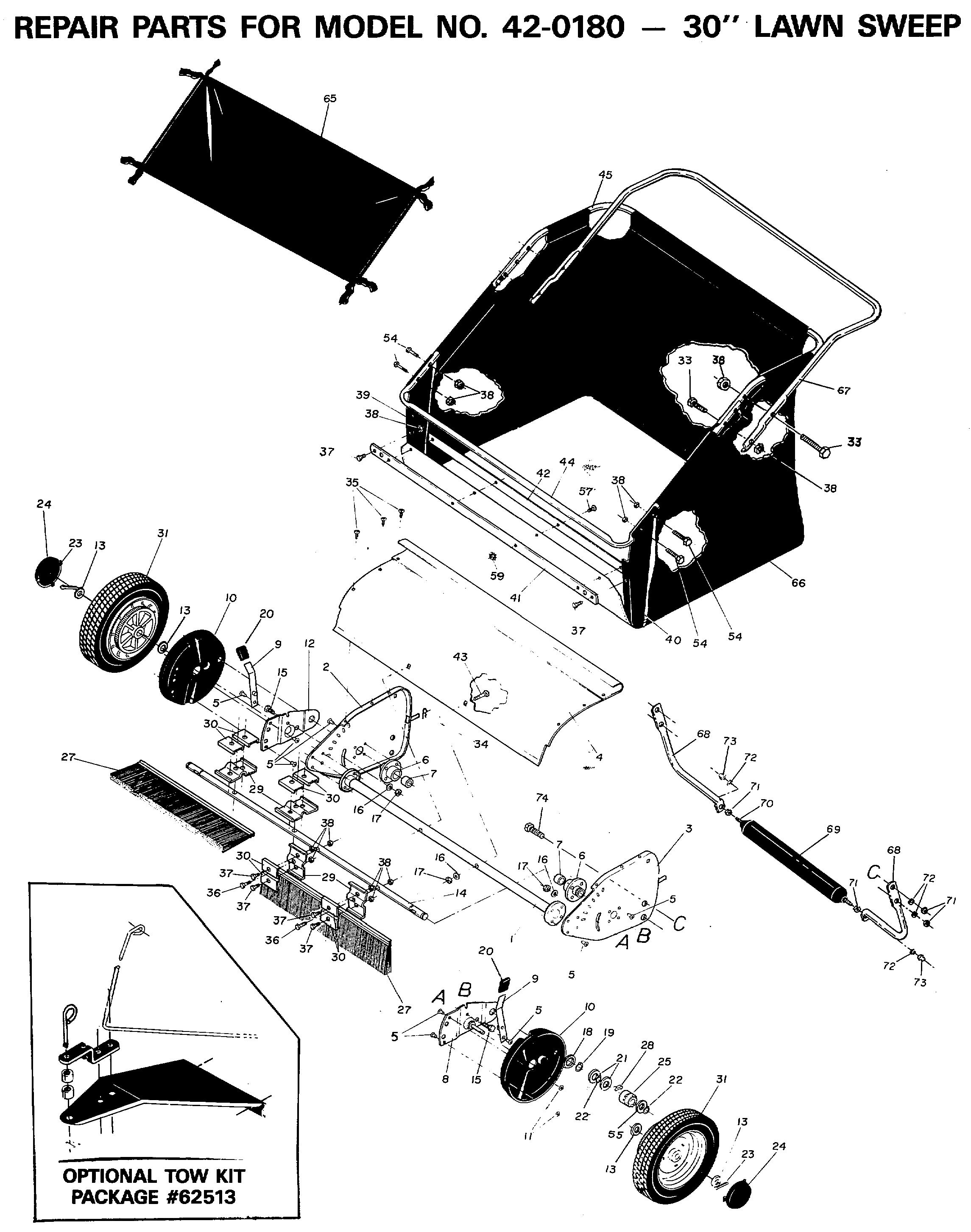

Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
43995-AF
|
OWNER'S MANUAL
|
N/A
|
POA
|
|
001
|
62493-AF
|
SUB-ASS'Y. HITCH TUBE & FLANGES
|
£59.15
|
Add
|
|
002
|
62574-AF
|
END PLATE ASS'Y. R.H.
|
N/A
|
POA
|
|
003
|
62573-AF
|
END PLATE ASS'Y. L.H.
|
N/A
|
POA
|
|
004
|
23578-AF
|
WRAPPER, SWEEPER HOUSING
|
£74.70
|
Add
|
|
005
|
C-9M5732
|
Pop Rivet (OBSOLETE) (OBSOLETE) (OBSOLETE)
|
N/A
|
POA
|
|
006
|
62488-AF
|
ASS'Y. BRUSH BUSHING WLDM.
|
£47.32
|
Add
|
|
007
|
1652-1-AF
|
BUSHING BRONZE
|
N/A
|
POA
|
|
008
|
62495-AF
|
RADACHSE LI. 62495
|
£44.77
|
Add
|
|
009
|
1155-47
|
ASS'Y. SPRING
|
N/A
|
POA
|
|
010
|
43900-AF
|
COVER-HARD TOP 43900
|
£27.59
|
Add
|
|
011
|
43910-AF
|
Washer, Flat #10 SAE 43910
|
£3.19
|
Add
|
|
012
|
62494-AF
|
RADACHSE RE. 62494
|
£44.77
|
Add
|
|
013
|
44137-AF
|
Washer, Flat 1/2" I.D. 44137
|
£2.60
|
Add
|
|
014
|
23567-AF
|
Brush Shaft 23567
|
£168.59
|
Add
|
|
015
|
43182-AF
|
Hex Bolt, 5/16" x 3/4" 43182
|
£4.31
|
Add
|
|
016
|
43081-AF
|
FLAT WASHER
|
£3.49
|
Add
|
|
017
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
018
|
44008-AF
|
WASHER
|
£3.24
|
Add
|
|
019
|
43655-AF
|
SPANNRING.75" 43655
|
£4.15
|
Add
|
|
020
|
1643-60
|
KNOB
|
N/A
|
POA
|
|
021
|
40001-AF
|
Washer, Shim 1-1/8" x .594" x .025" 44007-AF
|
£3.58
|
Add
|
|
022
|
AF-1650-21
|
RETAINING RING
|
£2.61
|
Add
|
|
023
|
714-0474
|
PIN (RED)
|
£3.20
|
Add
|
|
024
|
2674-32-AF
|
Hub Cap 2674-32
|
N/A
|
POA
|
|
025
|
43885-AF
|
PINION LH 11TEETH
|
£21.85
|
Add
|
|
026
|
43886-AF
|
Gear, Pinion R.H. (not shown) 43886
|
£23.48
|
Add
|
|
027
|
43902-AF
|
BRUSH
|
£20.16
|
Add
|
|
028
|
1671-1-AF
|
PAWL MOD 60 1671-1
|
£11.82
|
Add
|
|
029
|
23580-AF
|
BRUSH RETAINER 42-0197
|
£9.24
|
Add
|
|
030
|
23581-AF
|
BRUSH RETAINER 42-0197
|
£5.45
|
Add
|
|
031
|
43985-AF
|
ASS'Y, WHT WHEEL W/10x2.5 TIRE 43985
|
N/A
|
POA
|
|
033
|
1509-090
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
034
|
43055-AF
|
COTTER PIN
|
£6.04
|
Add
|
|
035
|
1522-1-AF
|
SCREW(10-12 X 5/8 SHEET METAL)
|
N/A
|
POA
|
|
036
|
43661-AF
|
HEX BOLT
|
£3.11
|
Add
|
|
037
|
43012-AF
|
BOLT
|
£3.32
|
Add
|
|
038
|
712-0291
|
LOCK-NUT
|
£2.77
|
Add
|
|
039
|
23582-AF
|
BRACKET, HOPPER L.H.
|
N/A
|
POA
|
|
040
|
23583-AF
|
BRACKET, HOPPER L.H.
|
N/A
|
POA
|
|
041
|
23584-AF
|
STRAP, HOPPER
|
£20.54
|
Add
|
|
042
|
23585-AF
|
RETAINER, HOPPER STRAP
|
£21.20
|
Add
|
|
043
|
43681-AF
|
Bolt, Carriage 5/16-18 x 1-1/2" 43681
|
£3.48
|
Add
|
|
044
|
43906-AF
|
TUBE, HOPPER (LOWER)
|
£57.35
|
Add
|
|
045
|
43907-AF
|
TUBE, HOPPER (UPPER)
|
£49.76
|
Add
|
|
054
|
43661-AF
|
HEX BOLT
|
£3.11
|
Add
|
|
055
|
44006-AF
|
WASHER
|
£5.01
|
Add
|
|
057
|
43346-AF
|
Truss Head Bolt, #10- 32 x 5/8" 43346
|
£3.48
|
Add
|
|
059
|
43662-AF
|
Lock Nut, 10-32 43662
|
£3.73
|
Add
|
|
065
|
43686-AF
|
BAG 43686
|
£29.60
|
Add
|
|
066
|
43988-AF
|
BAG, HOPPER 30"
|
N/A
|
POA
|
|
067
|
43984-AF
|
TUBE, UPPER HANDLE
|
N/A
|
POA
|
|
068
|
43702-AF
|
TUBE, ROLLER MOUNTING
|
N/A
|
POA
|
|
069
|
43716-AF
|
ROLLER, PLASTIC
|
N/A
|
POA
|
|
070
|
23399-AF
|
ROD, ROLLER
|
N/A
|
POA
|
|
071
|
43083-AF
|
HEX NUT
|
£3.32
|
Add
|
|
072
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
073
|
43742-AF
|
NUT, CAP 5/16-18 THD.
|
N/A
|
POA
|
|
074
|
43182-AF
|
Hex Bolt, 5/16" x 3/4" 43182
|
£4.31
|
Add
|
