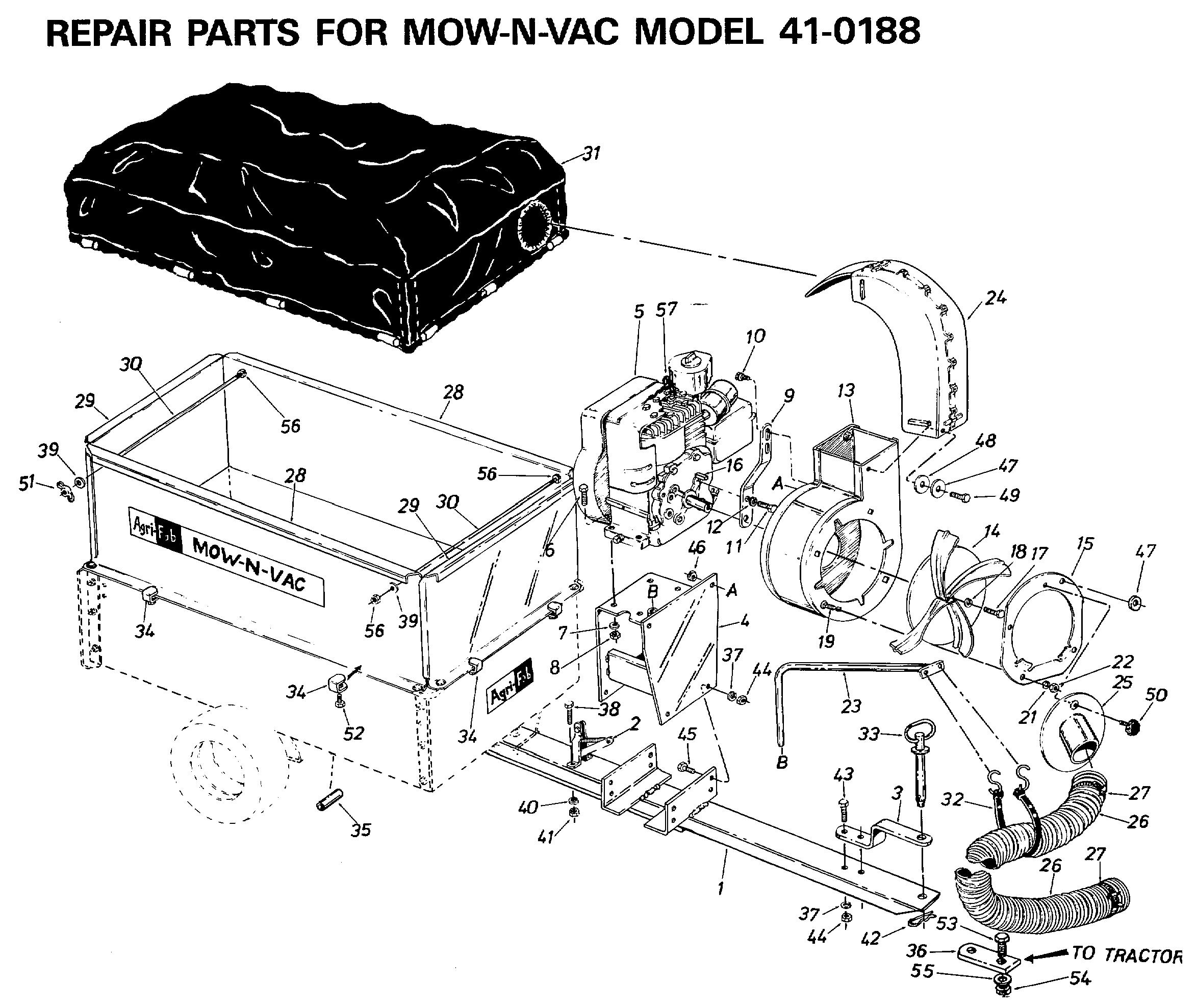

Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
001
|
62449-AF
|
TONGUE (DRAW BAR ASSEMBLY)
|
£301.22
|
Add
|
|
002
|
62455-AF
|
ASS`Y, LATCH LOCK AF-62455
|
£53.63
|
Add
|
|
003
|
23475-AF
|
HITCH BRACKET HD
|
£33.80
|
Add
|
|
004
|
62450-AF
|
ENGINE MOUNTING PLATE AF-62450
|
£264.71
|
Add
|
|
005
|
---------------
|
5 H.P. B & S ENGINE (130212-1731-01)
|
N/A
|
POA
|
|
006
|
43085-AF
|
Bolt, Hex 5/16-18 x 1-1/2"
|
£4.15
|
Add
|
|
007
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
008
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
009
|
23474-AF
|
BRACKET, ENG. TO BLOWER (MTG.) AF-23474
|
£33.01
|
Add
|
|
010
|
43749-AF
|
BOLT, HEX 5/16 x 3/4 TD CUT AF-43749
|
£3.85
|
Add
|
|
011
|
710-0627
|
HEX SCREW
|
£3.32
|
Add
|
|
012
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
013
|
62486-AF
|
Deck Adapter Kit 62486
|
£280.80
|
Add
|
|
014
|
14536-AF
|
ASS´Y, VANE PLATE (PUSH TYPE) AF-14536
|
£271.11
|
Add
|
|
015
|
AF-14563
|
ASSY, NOZZLE PLATE
|
£63.40
|
Add
|
|
016
|
23477-AF
|
Key, 1/4" Sq. 2" Long 23477
|
£9.28
|
Add
|
|
017
|
43795-AF
|
BOLT, HEX HD 3/8-24x1-1/4 GR 5 AF-43795
|
£3.28
|
Add
|
|
018
|
736-0169
|
L. WASHER
|
£2.89
|
Add
|
|
019
|
43080-AF
|
CARRIAGE BOLT
|
£3.49
|
Add
|
|
021
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
022
|
43083-AF
|
HEX NUT
|
£3.32
|
Add
|
|
023
|
62451-AF
|
BRACKET AF-62451
|
£97.86
|
Add
|
|
024
|
43788-AF
|
ELBOW WITH DEFLECTOR (PLASTIC) AF-43788
|
£328.03
|
Add
|
|
025
|
43791-AF
|
Hose Adapter 43791
|
£30.61
|
Add
|
|
026
|
43792-AF
|
Hose 43792
|
£340.87
|
Add
|
|
027
|
43793-AF
|
Hose Clamp 43793
|
£18.87
|
Add
|
|
028
|
23464-AF
|
SIDE PANEL, CART EXT.
|
N/A
|
POA
|
|
029
|
23465-AF
|
END PANEL, CART EXT.
|
N/A
|
POA
|
|
030
|
23476-AF
|
TIE ROD, CART EXT.
|
£27.74
|
Add
|
|
031
|
43789-AF
|
COVER, CART EXT.
|
£322.71
|
Add
|
|
032
|
43790-AF
|
Tarp Strap, 25" 43790
|
£28.31
|
Add
|
|
033
|
43884-AF
|
Hitch Pin 43884
|
£42.16
|
Add
|
|
034
|
23478-AF
|
CLIP-BODY AF-23478
|
£21.76
|
Add
|
|
035
|
23539-AF
|
TUBE SLEEVE 3/4" I.D.
|
£27.86
|
Add
|
|
036
|
23540-AF
|
Hitch Plate 23540
|
£13.72
|
Add
|
|
037
|
736-0169
|
L. WASHER
|
£2.89
|
Add
|
|
038
|
43796-AF
|
BOLT, HEX HD 1/4-20x2-3/4 GR 5 AF-43796
|
£4.05
|
Add
|
|
039
|
43088-AF
|
FLAT WASHER
|
£3.11
|
Add
|
|
040
|
43177-AF
|
Washer, Lock 1/4" I.D.* 43177
|
£3.08
|
Add
|
|
041
|
43178-AF
|
Hex Nut, 1/4-20 Thread
|
£3.37
|
Add
|
|
042
|
43343-AF
|
PIN COTTER
|
£4.20
|
Add
|
|
043
|
43087-AF
|
Hex Bolt, 3/8-16 x 1-1/4" Long 43087
|
£4.58
|
Add
|
|
044
|
43082-AF
|
HEX LOCK NUT
|
£4.12
|
Add
|
|
045
|
43001-AF
|
HEX BOLT (RED)
|
£3.49
|
Add
|
|
046
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
047
|
43572-AF
|
WASHER AF-43572
|
£4.99
|
Add
|
|
048
|
43553-AF
|
WASHER,NYLON1-1/2ODx5/16IDx1/8 AF-43553
|
£3.55
|
Add
|
|
049
|
43182-AF
|
Hex Bolt, 5/16" x 3/4" 43182
|
£4.31
|
Add
|
|
050
|
720-0170
|
KNOB:ARM:THREE 5/16-18
|
£13.72
|
Add
|
|
051
|
43193-AF
|
WING NUT 43193
|
£5.79
|
Add
|
|
052
|
43768-AF
|
BOLT,HEX 3/8-16x1-1/2 FULL THD AF-43768
|
£5.68
|
Add
|
|
053
|
43351-AF
|
Hex Bolt, 1/2-1 3 x 1-1/4" 43351
|
£5.18
|
Add
|
|
054
|
43262-AF
|
NUT 1/2-13 HEX LOCK
|
£6.20
|
Add
|
|
055
|
43352-AF
|
Flat Washer, 7/16" 43352
|
£3.48
|
Add
|
|
056
|
712-0291
|
LOCK-NUT
|
£2.77
|
Add
|
|
057
|
731-0189
|
KNOB, THROTTLE
|
£7.48
|
Add
|
