Parts list

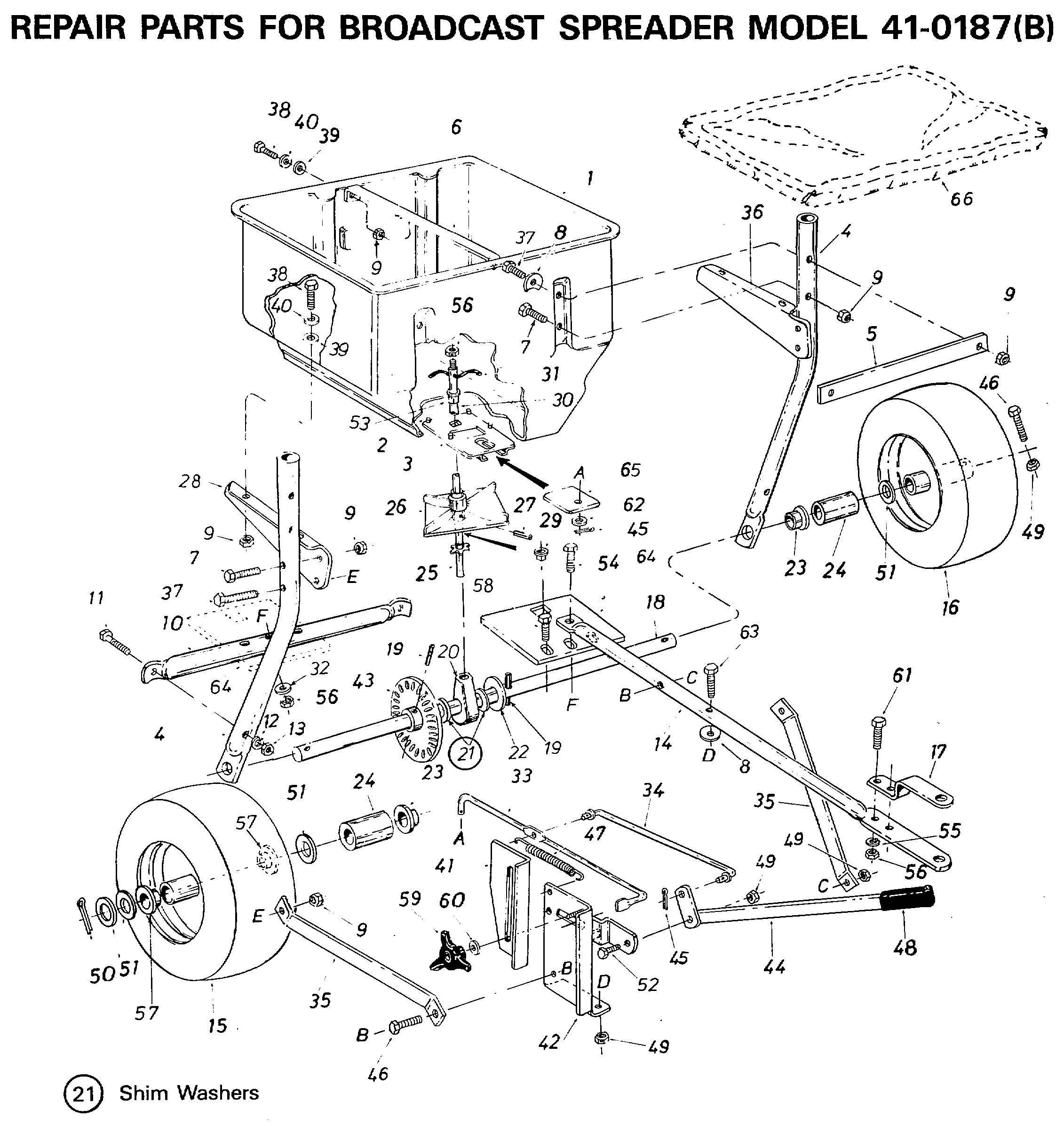

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
001
|
43805-AF
|
HOPPER - BROADCAST SPREADER
|
£266.79
|
Add
|
|
002
|
43882-AF
|
Rivet, Stainless 43882
|
£4.85
|
Add
|
|
003
|
62482-AF
|
ASSY GUIDE CLOSURE
|
£57.27
|
Add
|
|
004
|
43806-AF
|
SUPPORT TUBE, HOPPER/AXLE
|
£64.88
|
Add
|
|
005
|
23556-AF
|
STRAP, TUBE - SPREADER
|
£26.24
|
Add
|
|
006
|
23697-AF
|
Strap, Hopper 23697
|
£33.01
|
Add
|
|
007
|
43648-AF
|
Bolt, Hex 1/4-20 x 1-1/2" Lg.* 43648
|
£4.58
|
Add
|
|
008
|
43877-AF
|
WASHER, BOWED 1/4" I.D.
|
£4.13
|
Add
|
|
009
|
712-0291
|
LOCK-NUT
|
£2.77
|
Add
|
|
010
|
43808-AF
|
Tube, Crossover 43808
|
£57.98
|
Add
|
|
011
|
43084-AF
|
BOLT
|
£2.56
|
Add
|
|
012
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
013
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
014
|
43807-AF
|
Hitch tube 092.34.014
|
£62.74
|
Add
|
|
015
|
43845-AF
|
Wheel kit 14x4 right 092.34.015
|
£123.81
|
Add
|
|
016
|
43846-AF
|
Wheel kit 14x4 092.34.016
|
£171.79
|
Add
|
|
017
|
23687-AF
|
Hitch Bracket 23687
|
£33.95
|
Add
|
|
018
|
23522-AF
|
CROSS SHAFT PIVOT PIN 23522
|
£61.35
|
Add
|
|
019
|
43851-AF
|
ROLL PIN
|
£13.84
|
Add
|
|
020
|
43871-AF
|
Bushing, Axle Shaft 43871
|
£22.95
|
Add
|
|
021
|
1540-032
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
022
|
1540-162-AF
|
Washer, Flat 1/2" 1540-162
|
£6.62
|
Add
|
|
023
|
741-0382
|
Bearing flange 092.34.023
|
£17.59
|
Add
|
|
024
|
23708-AF
|
Spacer, 2.13" Long 23708
|
£8.91
|
Add
|
|
025
|
62472-AF
|
Gear shaft 092.34.025
|
£71.28
|
Add
|
|
026
|
04367-AF
|
SPREADER PLATE
|
£33.08
|
Add
|
|
027
|
43850-AF
|
ROLL PIN
|
£6.78
|
Add
|
|
028
|
23696-AF
|
BRACE, HOPPER (R.H.)
|
N/A
|
POA
|
|
029
|
43852-AF
|
LAGERBUCHSE AUS NYLON 43852
|
N/A
|
POA
|
|
030
|
23553-AF
|
Sleeve 092.34.030
|
£19.93
|
Add
|
|
031
|
43878-AF
|
WIRE AGITATOR
|
£14.86
|
Add
|
|
032
|
43070-AF
|
Washer, 3/8"
|
£3.91
|
Add
|
|
033
|
43858-AF
|
ROD, SLIDE GATE
|
£25.21
|
Add
|
|
034
|
43859-AF
|
Rod 092.34.034
|
£21.28
|
Add
|
|
035
|
23525-AF
|
Brace, Hitch 23525
|
£38.89
|
Add
|
|
036
|
23695-AF
|
BRACE, HOPPER (L.H.)
|
N/A
|
POA
|
|
037
|
710-0136
|
Bolt, Hex 1/4-20 x 1-3/4" 1509-069
|
£3.58
|
Add
|
|
038
|
43012-AF
|
BOLT
|
£3.32
|
Add
|
|
039
|
1543-69-AF
|
Washer, Nylon 1543-069
|
N/A
|
POA
|
|
040
|
43088-AF
|
FLAT WASHER
|
£3.11
|
Add
|
|
041
|
23530-AF
|
Flow control gage 092.34.041
|
£21.20
|
Add
|
|
042
|
62473-AF
|
ASS'Y. FLOW CONTROL MOUNT
|
£37.73
|
Add
|
|
043
|
62474-AF
|
ASSY GEAR
|
£87.01
|
Add
|
|
044
|
62477-AF
|
Flow control arm 092.34.044
|
£44.42
|
Add
|
|
045
|
R76020312
|
COTTER PIN 3/32 X 3/4" LG.
|
N/A
|
POA
|
|
046
|
710-0136
|
Bolt, Hex 1/4-20 x 1-3/4" 1509-069
|
£3.58
|
Add
|
|
047
|
43000-AF
|
SPRING EXTENSION
|
£11.08
|
Add
|
|
048
|
43848-AF
|
Grip, Flow Control Arm 43848
|
£5.99
|
Add
|
|
049
|
712-0291
|
LOCK-NUT
|
£2.77
|
Add
|
|
050
|
43093-AF
|
COTTER PIN
|
£3.11
|
Add
|
|
051
|
43009-AF
|
WASHER1-5/8 INCH O D X 25/32 INCH ID
|
£5.26
|
Add
|
|
052
|
43012-AF
|
BOLT
|
£3.32
|
Add
|
|
053
|
44285-AF
|
BUSHING DELRIN
|
£5.63
|
Add
|
|
054
|
43054-AF
|
Bolt, Hex 3/8-16 x 2" Lg. * 43054
|
£5.79
|
Add
|
|
055
|
736-0169
|
L. WASHER
|
£2.89
|
Add
|
|
056
|
43082-AF
|
HEX LOCK NUT
|
£4.12
|
Add
|
|
057
|
44264-AF
|
FLANGE BEARING
|
£9.54
|
Add
|
|
058
|
41576-AF
|
Bolt, Hex 3/8-16 x 1-3/4" Lg.* 41576
|
£4.05
|
Add
|
|
059
|
43849-AF
|
Knob, Plastic 1/4-20 Thd. 43849
|
£24.61
|
Add
|
|
060
|
1543-69-AF
|
Washer, Nylon 1543-069
|
N/A
|
POA
|
|
061
|
43087-AF
|
Hex Bolt, 3/8-16 x 1-1/4" Long 43087
|
£4.58
|
Add
|
|
062
|
43081-AF
|
FLAT WASHER
|
£3.49
|
Add
|
|
063
|
43648-AF
|
Bolt, Hex 1/4-20 x 1-1/2" Lg.* 43648
|
£4.58
|
Add
|
|
064
|
23555-AF
|
SUPPORT, SHAFT
|
£10.48
|
Add
|
|
065
|
23533-AF
|
PLATE CLOSURE
|
£15.33
|
Add
|
|
066
|
43962
|
COVER, VINYL HOPPER
|
£109.92
|
Add
|
|
066
|
44258-AF
|
OWNER'S MANUAL
|
N/A
|
POA
|
