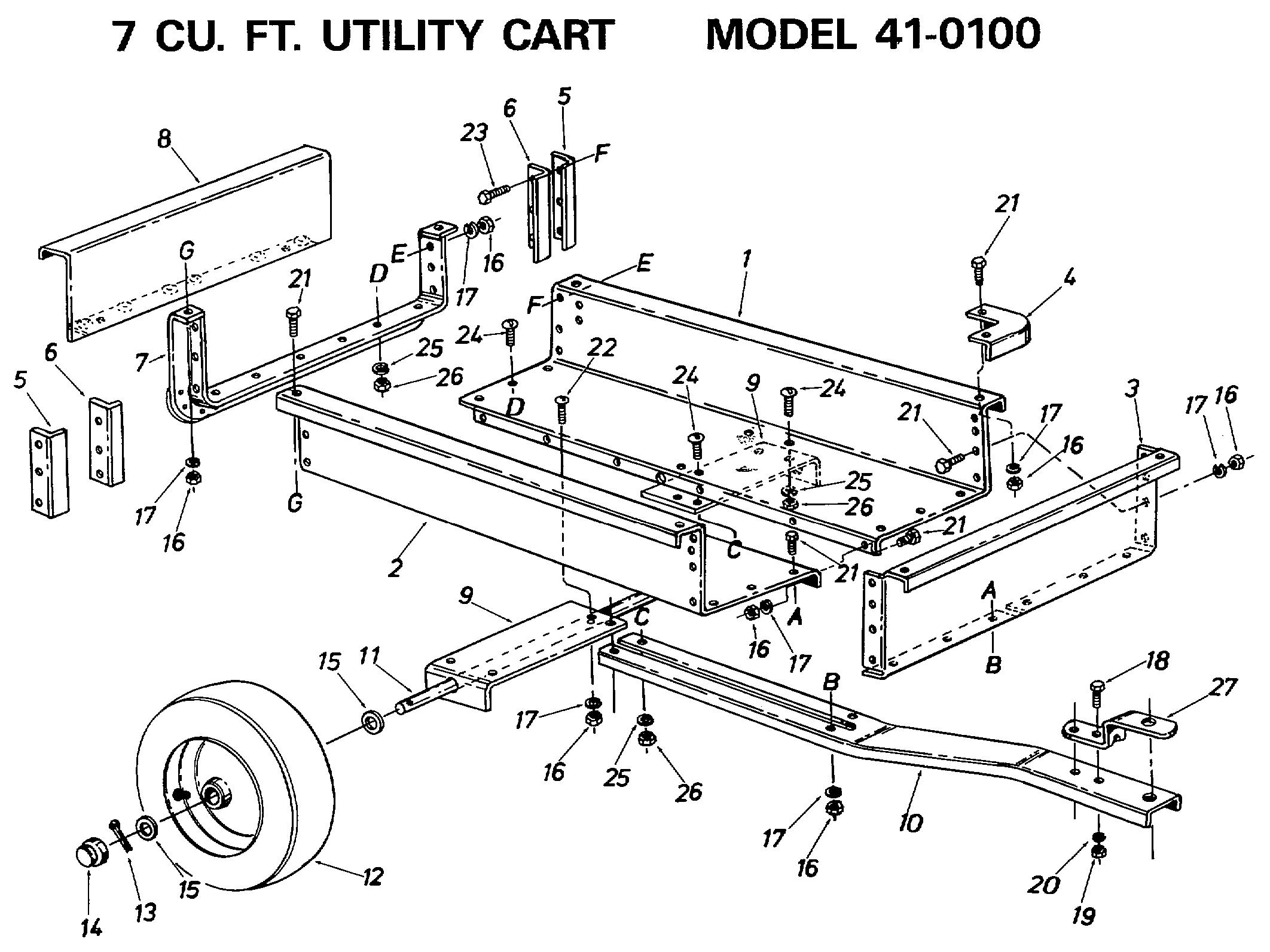

FG317_4700

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	23511-AF	CART BODY -- L.H.	N/A	POA
002	23512-AF	CART BODY -- R.H.	N/A	POA
003	23491-AF	FRONT PANEL	N/A	POA
004	23484-AF	Front Corner Cap 23484	£21.81	Add
005	23486-AF	OUTER BRACKET 092.34.067	£21.40	Add
006	23547-AF	INNER BRACKET 092.34.066	£7.11	Add
007	62459-AF	SUB-ASS'Y., REAR ANGLE	N/A	POA
008	23501-AF	TAILGATE	N/A	POA
009	23509-AF	SUPPORT, WHEEL	N/A	POA
010	23510-AF	DRAW BAR TONGUE	N/A	POA
011	23480-AF	AXLE 5/8" DIA.	N/A	POA
012	43756-AF	Wheel assy. 092.34.130	£107.05	Add
013	43010-AF	COTTER PIN	£3.49	Add
014	731-0484A	HUB CAP	£5.05	Add
015	43754-AF	WASHER 21 092.34.134	£4.02	Add
016	43178-AF	Hex Nut, 1/4-20 Thread	£3.37	Add
017	43177-AF	Washer, Lock 1/4" I.D.* 43177	£3.08	Add
018	43001-AF	HEX BOLT (RED)	£3.49	Add
019	712-0798	HEX. NUT	£7.61	Add
020	736-0169	L. WASHER	£2.89	Add
021	43175-AF	Hex Bolt, 1/4-20 x 1/2" * 43175	£4.15	Add
022	43752-AF	BOLT, STL. PAN HD. 1/4-20 X 1-1/4" LG.	£3.28	Add
023	43012-AF	BOLT	£3.32	Add
024	43814-AF	SLOTTED TRUSS HEADBOLT(5/16-18x3/4)	£3.11	Add
025	43086-AF	Lock Washer, 5/16" 43086	£3.48	Add
026	43083-AF	HEX NUT	£3.32	Add
027	23014-AF	HITCH BRACKET	£31.67	Add
