Parts list

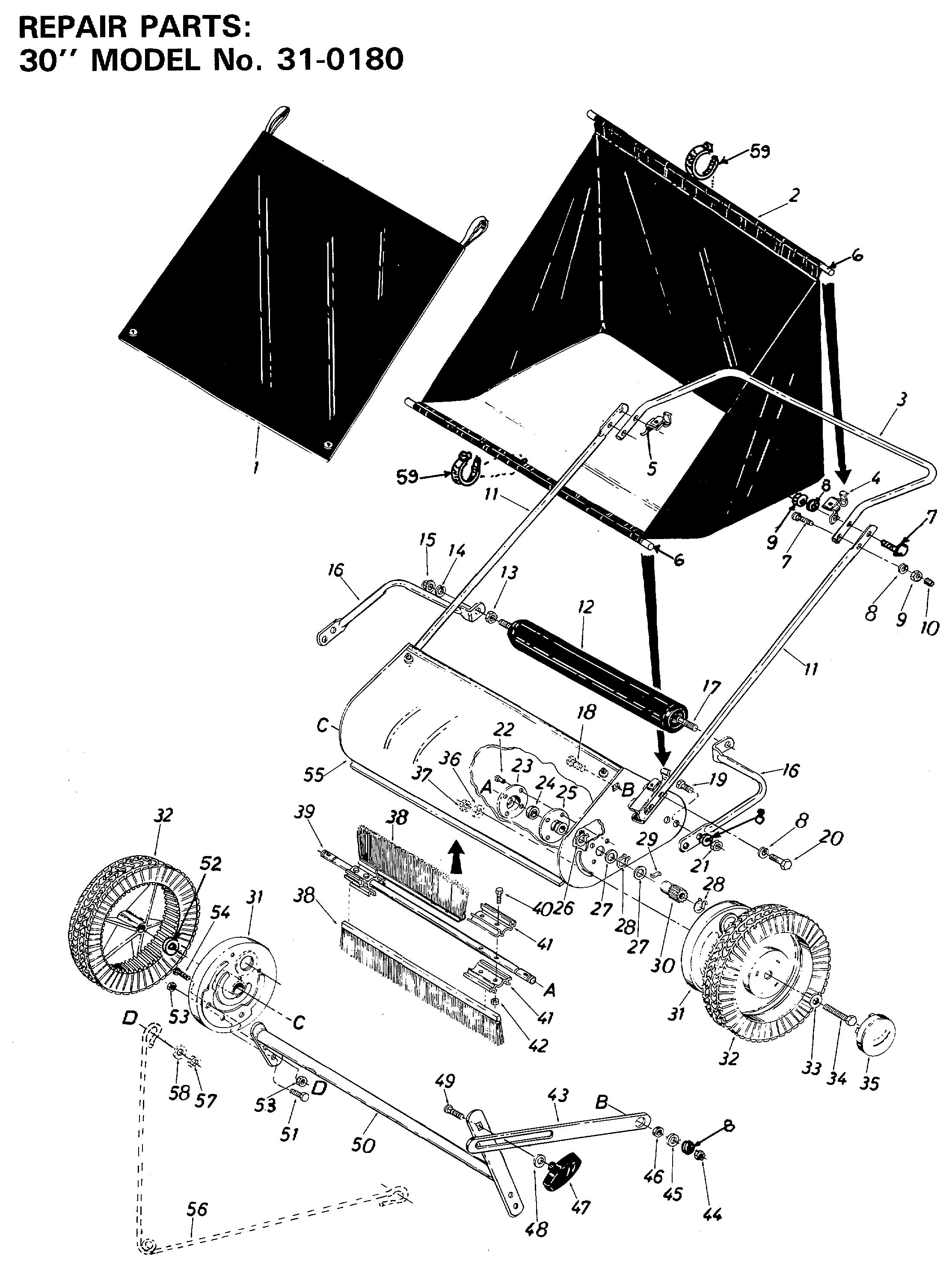

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
001
|
43718-AF
|
COVER, WIND SCREEN
|
N/A
|
POA
|
|
002
|
43717-AF
|
BAG, HOPPER 30"
|
N/A
|
POA
|
|
003
|
43701-AF
|
HANDLE, UPPER
|
N/A
|
POA
|
|
004
|
62382-AF
|
ASS'Y., SPRING MT. CLIP.-- L.H.
|
N/A
|
POA
|
|
005
|
62381-AF
|
ASS'Y., SPRING MR. CLIP. -- R.H.
|
N/A
|
POA
|
|
006
|
23401-AF
|
DOWEL, PLASTIC PIPE
|
N/A
|
POA
|
|
007
|
1513-43
|
BOLT, SPCL. 5/16-18 X 1.50" LG.
|
N/A
|
POA
|
|
008
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
009
|
43083-AF
|
HEX NUT
|
£3.32
|
Add
|
|
010
|
43331-AF
|
CAP, PLASTIC
|
N/A
|
POA
|
|
011
|
43700-AF
|
HANDLE, LOWER
|
N/A
|
POA
|
|
012
|
43716-AF
|
ROLLER, PLASTIC
|
N/A
|
POA
|
|
013
|
43083-AF
|
HEX NUT
|
£3.32
|
Add
|
|
014
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
015
|
43742-AF
|
NUT, CAP 5/16-18 THD.
|
N/A
|
POA
|
|
016
|
43702-AF
|
TUBE, ROLLER MOUNTING
|
N/A
|
POA
|
|
017
|
23399-AF
|
ROD, ROLLER
|
N/A
|
POA
|
|
018
|
43080-AF
|
CARRIAGE BOLT
|
£3.49
|
Add
|
|
019
|
43182-AF
|
Hex Bolt, 5/16" x 3/4" 43182
|
£4.31
|
Add
|
|
020
|
43684-AF
|
BOLT, HEX 5/16-18 X 1-1/4
|
N/A
|
POA
|
|
021
|
43083-AF
|
HEX NUT
|
£3.32
|
Add
|
|
022
|
9M5732
|
POP RIVET
|
£3.66
|
Add
|
|
023
|
AF-1629-56
|
Retainer, Dust Cover 1629-56
|
£26.36
|
Add
|
|
024
|
HG-44232P
|
BALL BEARING
|
£70.26
|
Add
|
|
025
|
62355-AF
|
BRUSH BUSHING ASS'Y. - 32" LAWN SWEEP
|
£54.66
|
Add
|
|
026
|
43655-AF
|
SPANNRING.75" 43655
|
£4.15
|
Add
|
|
027
|
1540-125-AF
|
WASHER 1540-125
|
N/A
|
POA
|
|
028
|
AF-1650-21
|
RETAINING RING
|
£2.61
|
Add
|
|
029
|
1671-1-AF
|
PAWL MOD 60 1671-1
|
£11.82
|
Add
|
|
030
|
2692-7-AF
|
DRIVE PINION LH AF-2692-7
|
£21.85
|
Add
|
|
030
|
2692-006-AF
|
DRIVE PINION R.H. 2692-006
|
N/A
|
POA
|
|
031
|
62341-AF
|
STAUBSCHUTZDECKEL ZUS. 62341
|
£61.58
|
Add
|
|
032
|
44985-AF
|
WHEEL ASSY. FOR 38" SWEEPER
|
£116.26
|
Add
|
|
033
|
0141-000
|
WASHER
|
£3.39
|
Add
|
|
034
|
43656-AF
|
SKT.-SCHRAUBE 43656
|
£9.46
|
Add
|
|
035
|
2674-32-AF
|
Hub Cap 2674-32
|
N/A
|
POA
|
|
036
|
43070-AF
|
Washer, 3/8"
|
£3.91
|
Add
|
|
037
|
1038-AF
|
Nut, Nylock 3/8-24 Thread 1038
|
£3.48
|
Add
|
|
038
|
43705-AF
|
BRUSH, 30" SWEEPER
|
N/A
|
POA
|
|
039
|
23381-AF
|
SHAFT, BRUSH 30"
|
N/A
|
POA
|
|
040
|
1509-090
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
041
|
2182-007
|
BRUSH BRACKET ASSEMBLY (AF) 2182-7
|
£34.74
|
Add
|
|
042
|
712-0291
|
LOCK-NUT
|
£2.77
|
Add
|
|
043
|
23387-AF
|
STELLSCHIENE 23387
|
£11.38
|
Add
|
|
044
|
43083-AF
|
HEX NUT
|
£3.32
|
Add
|
|
045
|
43081-AF
|
FLAT WASHER
|
£3.49
|
Add
|
|
046
|
23400-AF
|
SPACER
|
£5.85
|
Add
|
|
047
|
43720-AF
|
KNOB (RED)
|
£7.83
|
Add
|
|
048
|
43081-AF
|
FLAT WASHER
|
£3.49
|
Add
|
|
049
|
43079-AF
|
CARR, BOLT 5/16-18 X 1
|
£3.22
|
Add
|
|
050
|
62375-AF
|
ASS'Y. ADJUSTMENT ROD
|
N/A
|
POA
|
|
051
|
43182-AF
|
Hex Bolt, 5/16" x 3/4" 43182
|
£4.31
|
Add
|
|
052
|
1540-032
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
053
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
054
|
43684-AF
|
BOLT, HEX 5/16-18 X 1-1/4
|
N/A
|
POA
|
|
055
|
62389-AF
|
ASS'Y., SWEEPER HOUSING 30"
|
N/A
|
POA
|
|
056
|
43732-AF
|
TOW HITCH (OPTIONAL)
|
N/A
|
POA
|
|
057
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
058
|
43070-AF
|
Washer, 3/8"
|
£3.91
|
Add
|
|
059
|
725-0157
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
