FG317_4300

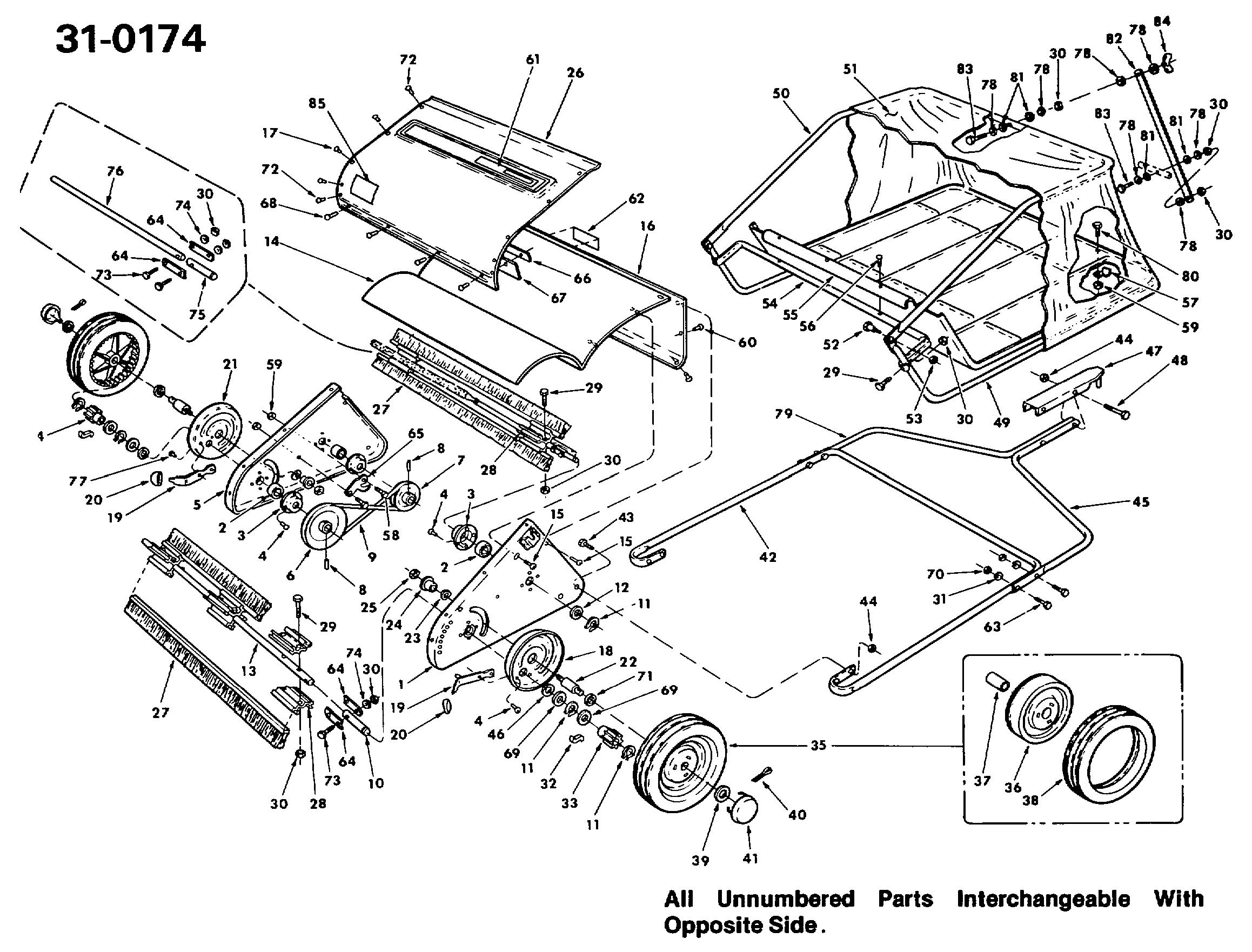

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	4111-92	ASSEMBLY--END PLATE R.H.	N/A	POA
002	HG-44232P	BALL BEARING	£70.26	Add
003	AF-1629-56	Retainer, Dust Cover 1629-56	£26.36	Add
004	1530-6-AF	RIVET(3/16 DIA. X 5/16)	N/A	POA
005	4111-91	ASSEMBLY--END PLATE L.H.	N/A	POA
006	2120-69	ASSEMBLY--PULLEY	N/A	POA
007	2626-74	PULLEY	N/A	POA
008	1548-12	ROLLPIN(.156 DIA. X 1 1/4)	N/A	POA
009	2651-49-AF	BELT(3/8 ROUND SECT.) 2651-49	N/A	POA
010	1632-229	SHAFT--BRUSH DRIVE (SHORT)	£120.60	Add
011	AF-1650-21	RETAINING RING	£2.61	Add
012	1540-17	WASHER--FLAT(5/8 X 15/16 X 1/16)	N/A	POA
013	1119-064	SHAFT	£217.30	Add
014	4703-24	BAFFLE--TOP	N/A	POA
015	1507-12	SCREW(10-32 X 1-1/8 SEMS)	N/A	POA
016	3703-25	BAFFLE--FRONT	N/A	POA
017	1507-8-AF	SCREW(10-32 X 3/8 SEMS)	N/A	POA
018	3118-44	ASSEMBLY--DUST COVER R.H.	N/A	POA
019	2155-18	ASSEMBLY--WHEEL ADJ. LEVER	N/A	POA
020	2643-18	KNOB--WHEEL ADJUST	N/A	POA
021	3118-45	ASSEMBLY--DUST COVER L.H.	N/A	POA
022	1631-39	AXLE--WHEEL	N/A	POA
023	1552-13	WASHER--BOWED	N/A	POA
024	1657-45	BUSHING--SPACER	N/A	POA
025	1038-AF	Nut, Nylock 3/8-24 Thread 1038	£3.48	Add
026	4622-98	COVER--SWEEPER	N/A	POA
027	2679-2-AF	ASS'Y. BRUSH AND CHANNEL	N/A	POA
028	2182-7-AF	ASS´Y RETAINER-BRUSH AF-2182-7	£10.82	Add
029	1509-31	BOLT(1/4-20 X 1-1/8 HEX HD.)	N/A	POA
030	1538-8-AF	NUT(1/4-20 HEX LOCK)	N/A	POA
031	1025-AF	WASHER--LOCK(5/16 SPLIT)	N/A	POA
032	1671-1-AF	PAWL MOD 60 1671-1	£11.82	Add
033	2692-6-AF	DRIVE PINION R.H. AF-2692-6	£25.10	Add
034	2692-7-AF	DRIVE PINION LH AF-2692-7	£21.85	Add
035	44985-AF	WHEEL ASSY. FOR 38" SWEEPER	£116.26	Add
036	4636-18	WHEEL--GEAR & RIM	N/A	POA
037	1652-52	WHEEL BEARING - 32" LAWN SWEEP	N/A	POA
038	3619-58	TIRE	N/A	POA
039	141-AF	Washer, Flat 1-1/2" x .375" x .062" 141	£3.91	Add
040	142-AF	COTTER PIN(1/8 X 5/8)	N/A	POA
041	2674-32-AF	Hub Cap 2674-32	N/A	POA
042	4697-13	DRAW--BAR--REAR	N/A	POA
043	1509-44	BOLT(5/16-18 X 3/4 SEM HEX)	N/A	POA
044	1538-6-AF	NUT(5/16-18 HEX LOCK)	N/A	POA
045	4697-14	DRAW--BAR--FRONT(R.H.)	N/A	POA
046	1552-14	WASHER--BOWED	N/A	POA
047	1132-128	BRACKET & PIN (DNR)	£58.47	Add
048	769-AF	BOLT(5/16-18 X 2-5/8 HEX HD.)	N/A	POA
049	4647-29	FRAME CATCHER--LOWER	N/A	POA
050	4647-30	FRAME CATCHER--UPPER	N/A	POA
051	0773-13	BASKET--FABRIC	N/A	POA
052	1513-87	BOLT--SHOULDER(PIVOT)	N/A	POA
053	1538-13	NUT(3/8-16 HEX LOCK)	N/A	POA
054	2603-77	BRACE--FRAME	N/A	POA
055	4709-24	PANEL--CATCHER BOTTOM	N/A	POA
056	1095-AF	SL. SCR. #10-32 X 1/2 - 32" LAWN SWEEP	N/A	POA
057	1694-26	CLAMP	N/A	POA
058	1507-6	BOLT(10-32 X 3/8 TRUSS HD.)	N/A	POA
059	712-0102	HEX LOCK NUT (AF) 1534-8	£6.39	Add
060	1507-11	SCREW(10-32 X 3/8 SEMS)	N/A	POA
063	1513-93	BOLT(5/16 X 1-3/8 SPECIAL)	N/A	POA
064	1694-34	COUPLING--HALF(CLAMP)	N/A	POA
065	2723-4-AF	SCRAPER--IMPELLER PULLEY	N/A	POA
066	1629-63	RETAINER--SKIRT	N/A	POA
067	1693-3-AF	SKIRT	N/A	POA
068	1117-AF	SCREW(10-32 X 3/8 PHILLIPS HD.)	N/A	POA
069	1540-125-AF	WASHER 1540-125	N/A	POA
070	70-AF	NUT(5/16-18 HEX)	N/A	POA
071	1540-032	NO LONGER AVAILABLE	N/A	POA
072	1522-1-AF	SCREW(10-12 X 5/8 SHEET METAL)	N/A	POA
073	1509-090	NO LONGER AVAILABLE	N/A	POA
074	1018-AF	LOCKWASHER(1/4 STD. SPLIT)	N/A	POA
075	1632-228	SHAFT--IMPELLER(SHORT)	£87.64	Add
076	2632-230	SHAFT--IMPELLER(LONG)	£143.33	Add
077	1530-1-AF	RIVET--(3/16 DIA. X 1/4 TRUSS HD.)	N/A	POA
078	1540-81	WASHER(17/64 X 3/4 X 1/16)	N/A	POA
079	4697-15	DRAW & BAR--FRONT(L.H.)	N/A	POA
080	1509-38	BOLT(10-32 X 3/8 HEX HD.)	N/A	POA
081	1543-69-AF	Washer, Nylon 1543-069	N/A	POA
082	2653-28	SUPPORT	N/A	POA
083	1509-69-AF	HEX BOLT, 1/4-20 X 1-3/4" LG.	£2.77	Add
084	1539-79	NUT(1/4-20 WING-LOCK)	N/A	POA
