FG317_4200

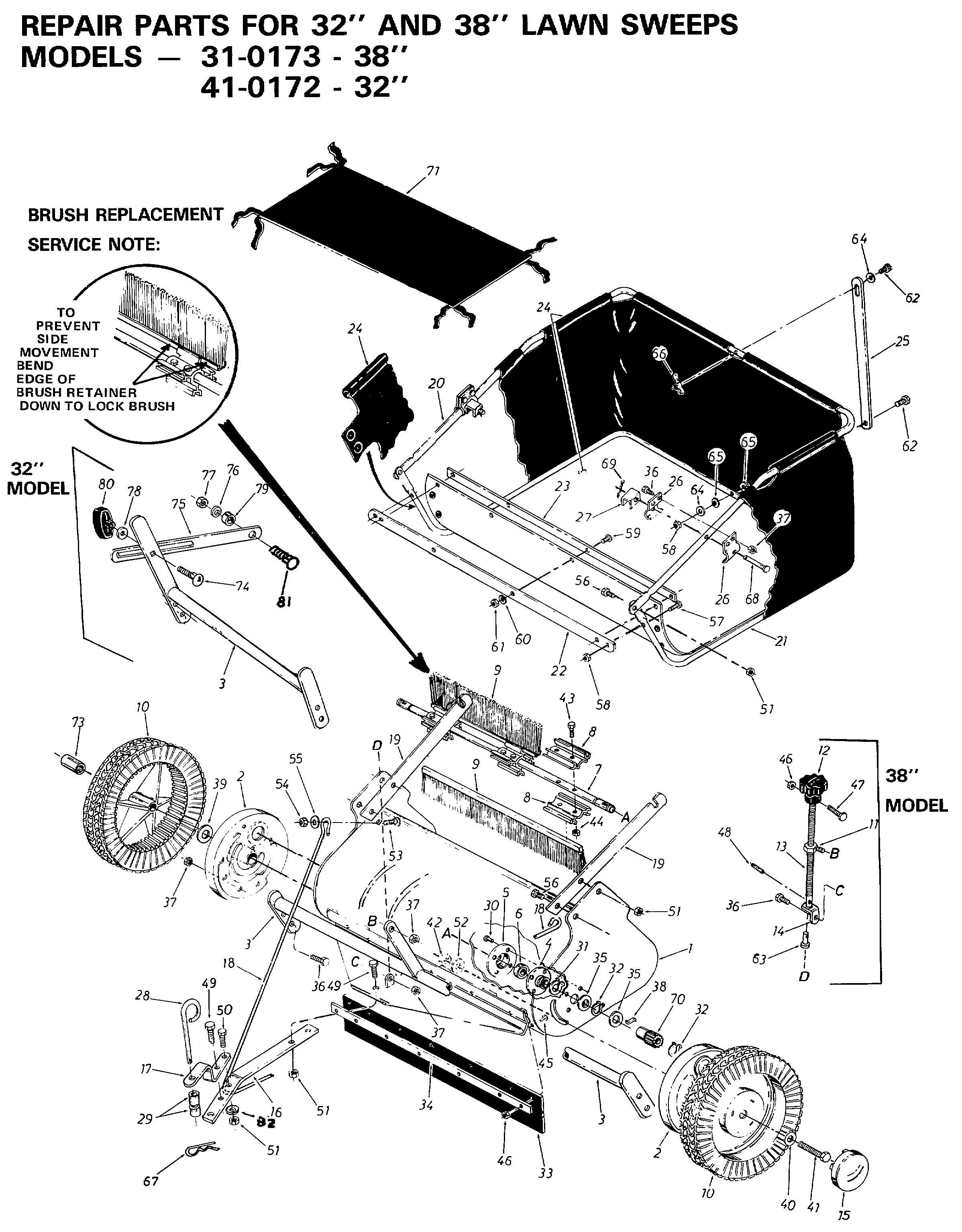

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG317_4200

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 62445-AF HOUSING 62445 £191.99 Add
001 62344-AF SWEEPER HOUSING ASS'Y. - 38" LAWN SWEEP £8.05 Add
002 62341-AF STAUBSCHUTZDECKEL ZUS. 62341 £61.58 Add
002 62341-AF STAUBSCHUTZDECKEL ZUS. 62341 £61.58 Add
003 62446-AF ADJUSTMENT ROD ASS'Y. - 32" LAWN SWEEP N/A POA
003 62352-AF ADJUSTMENT ROD ASS'Y. - 38" LAWN SWEEP £61.12 Add
004 62355-AF BRUSH BUSHING ASS'Y. - 32" LAWN SWEEP £54.66 Add
004 62355-AF BRUSH BUSHING ASS'Y. - 32" LAWN SWEEP £54.66 Add
005 AF-1629-56 Retainer, Dust Cover 1629-56 £26.36 Add
005 AF-1629-56 Retainer, Dust Cover 1629-56 £26.36 Add
006 HG-44232P BALL BEARING £70.26 Add
006 HG-44232P BALL BEARING £70.26 Add
007 23334-AF SHAFT, BRUSH 32 IN SWEEP 23334 £89.48 Add
007 23335-AF BRUSH SHAFT - 38" LAWN SWEEP £95.94 Add
008 2182-7-AF ASS´Y RETAINER-BRUSH AF-2182-7 £10.82 Add
008 2182-7-AF ASS´Y RETAINER-BRUSH AF-2182-7 £10.82 Add
009 43646-AF BRUSH, 32 IN SWEEP 43646 £25.79 Add
009 43647-AF BRUSH - 38" LAWN SWEEP £33.73 Add
010 44985-AF WHEEL ASSY. FOR 38" SWEEPER £116.26 Add
010 44985-AF WHEEL ASSY. FOR 38" SWEEPER £116.26 Add
011 62356-AF FERRULE-ADJ 62356 £25.55 Add
012 43654-AF GRIFFRAD 43654 £31.55 Add
013 43641-AF SCREW, HT ADJ PLTD 43641 £68.92 Add
014 23339-AF BRACKET, GATE SLIDE ANGLE 23339 £12.93 Add
015 2674-32-AF Hub Cap 2674-32 N/A POA
016 23349-AF DRAW BAR 23349 £32.20 Add
016 23349-AF DRAW BAR 23349 £32.20 Add
017 23014-AF HITCH BRACKET £31.67 Add
017 23014-AF HITCH BRACKET £31.67 Add
018 43643-AF BRACE-VAR SP 43643 £51.15 Add
018 43644-AF BRACE ROD - 38" LAWN SWEEP £75.98 Add
019 23330-AF ARM, BAG MT LG 23330 £20.87 Add
019 23330-AF ARM, BAG MT LG 23330 £20.87 Add
020 43637-AF UPPER FRAME 43637 £46.57 Add
020 43638-AF UPPER HOPPER TUBE - 38" LAWN SWEEP N/A POA
021 43639-AF LOWER HOPPER TUBE (AF) 43639 £37.23 Add
021 43640-AF LOWER HOPPER TUBE - 38" LAWN SWEEP N/A POA
022 23351-AF STRAP, BAG FRAME 32 IN AF-23351 £25.88 Add
022 23352-AF Strap, Bag Frame 23352 £28.38 Add
023 23345-AF RUBBER STRIP AF-23345 £18.60 Add
023 23343-AF PLATE-SHAVE 23343 £19.62 Add
024 43650-AF ASSY HOPPER BAG 43650 £218.41 Add
024 43651-AF ASSY HOPPER BAG 43651 £229.80 Add
025 2753-28-AF SUPPORT-GRASSCATCHER 2753-028 N/A POA
025 2753-28-AF SUPPORT-GRASSCATCHER 2753-028 N/A POA
026 23331-AF THROTTLE CABLE CLIP 23331 £12.01 Add
026 23331-AF THROTTLE CABLE CLIP 23331 £12.01 Add
027 23354-AF BAIL 23354 £11.94 Add
027 23354-AF BAIL 23354 £11.94 Add
028 23353-AF HITCH PIN £19.20 Add
028 23353-AF HITCH PIN £19.20 Add
029 23368-AF Tube, Hitch Spacer 23368 £8.18 Add
029 23368-AF Tube, Hitch Spacer 23368 £8.18 Add
030 9M5732 POP RIVET £3.66 Add
030 9M5732 POP RIVET £3.66 Add
031 43655-AF SPANNRING.75" 43655 £4.15 Add
031 43655-AF SPANNRING.75" 43655 £4.15 Add
032 AF-1650-21 RETAINING RING £2.61 Add
032 AF-1650-21 RETAINING RING £2.61 Add
033 43645-AF SKIRT, PLASTIC (32") AF-43645 £20.39 Add
033 43673-AF SKIRT £21.35 Add
034 23345-AF RUBBER STRIP AF-23345 £18.60 Add
034 23343-AF PLATE-SHAVE 23343 £19.62 Add
035 1540-125-AF WASHER 1540-125 N/A POA
035 1540-125-AF WASHER 1540-125 N/A POA
036 43182-AF Hex Bolt, 5/16" x 3/4" 43182 £4.31 Add
037 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £9.35 Add
038 1671-1-AF PAWL MOD 60 1671-1 £11.82 Add
038 1671-1-AF PAWL MOD 60 1671-1 £11.82 Add
039 1540-032 NO LONGER AVAILABLE N/A POA
039 1540-032 NO LONGER AVAILABLE N/A POA
040 0141-000 WASHER £3.39 Add
040 0141-000 WASHER £3.39 Add
041 43656-AF SKT.-SCHRAUBE 43656 £9.46 Add
041 43656-AF SKT.-SCHRAUBE 43656 £9.46 Add
042 1038-AF Nut, Nylock 3/8-24 Thread 1038 £3.48 Add
042 1038-AF Nut, Nylock 3/8-24 Thread 1038 £3.48 Add
043 1509-090 NO LONGER AVAILABLE N/A POA
043 1509-090 NO LONGER AVAILABLE N/A POA
044 712-0291 LOCK-NUT £2.77 Add
044 712-0291 LOCK-NUT £2.77 Add
045 1095-AF SL. SCR. #10-32 X 1/2 - 32" LAWN SWEEP N/A POA
045 1095-AF SL. SCR. #10-32 X 1/2 - 32" LAWN SWEEP N/A POA
046 1534-8-AF HEX LOCK NUT 10-32 PL AF-1534-8 £2.64 Add
046 1534-8-AF HEX LOCK NUT 10-32 PL AF-1534-8 £2.64 Add
047 43657-AF HEX BOLT #10-32 X 2-1/4" LG. - 38" LAWN SWEEP £3.16 Add
048 43659-AF PIN, SPRING 3/16x1 AF-43659 £3.48 Add
049 43001-AF HEX BOLT (RED) £3.49 Add
049 43001-AF HEX BOLT (RED) £3.49 Add
050 43062-AF BOLT 3/8-16 X 1-1/2 HEX HEAD 43062 £4.99 Add
050 43062-AF BOLT 3/8-16 X 1-1/2 HEX HEAD 43062 £4.99 Add
051 43082-AF HEX LOCK NUT £4.12 Add
051 43082-AF HEX LOCK NUT £4.12 Add
052 43070-AF Washer, 3/8" £3.91 Add
052 43070-AF Washer, 3/8" £3.91 Add
053 43080-AF CARRIAGE BOLT £3.49 Add
053 43080-AF CARRIAGE BOLT £3.49 Add
054 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £9.35 Add
054 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £9.35 Add
055 43081-AF FLAT WASHER £3.49 Add
055 43081-AF FLAT WASHER £3.49 Add
056 43407-AF Bolt, Hex 3/8-16 x 3/4" Lg. * 43407 £3.91 Add
056 43407-AF Bolt, Hex 3/8-16 x 3/4" Lg. * 43407 £3.91 Add
057 43661-AF HEX BOLT £3.11 Add
057 43661-AF HEX BOLT £3.11 Add
058 712-0291 LOCK-NUT £2.77 Add
058 712-0291 LOCK-NUT £2.77 Add
059 43346-AF Truss Head Bolt, #10- 32 x 5/8" 43346 £3.48 Add
059 43346-AF Truss Head Bolt, #10- 32 x 5/8" 43346 £3.48 Add
060 736-0722 Lock Washer, #10 £3.20 Add
060 736-0722 Lock Washer, #10 £3.20 Add
061 43662-AF Lock Nut, 10-32 43662 £3.73 Add
061 43662-AF Lock Nut, 10-32 43662 £3.73 Add
062 1509-090 NO LONGER AVAILABLE N/A POA
062 1509-090 NO LONGER AVAILABLE N/A POA
063 43658-AF PIN, CLEVIS W/HOLE - 38" LAWN SWEEP £10.53 Add
064 43088-AF FLAT WASHER £3.11 Add
064 43088-AF FLAT WASHER £3.11 Add
065 1543-69-AF Washer, Nylon 1543-069 N/A POA
065 1543-69-AF Washer, Nylon 1543-069 N/A POA
066 43193-AF WING NUT 43193 £5.79 Add
066 43193-AF WING NUT 43193 £5.79 Add
067 43343-AF PIN COTTER £4.20 Add
067 43343-AF PIN COTTER £4.20 Add
068 43513-AF CLEVIS PIN (RED) £8.53 Add
068 43513-AF CLEVIS PIN (RED) £8.53 Add
069 714-0474 PIN (RED) £3.20 Add
069 714-0474 PIN (RED) £3.20 Add
070 2692-7-AF DRIVE PINION LH AF-2692-7 £21.85 Add
070 2692-7-AF DRIVE PINION LH AF-2692-7 £21.85 Add
070 2692-006-AF DRIVE PINION R.H. 2692-006 N/A POA
070 2692-006-AF DRIVE PINION R.H. 2692-006 N/A POA
071 43686-AF BAG 43686 £29.60 Add
071 43687-AF BAG WIND SHIELD 38 IN AF-43687 £30.39 Add
072 43737-AF Hopper Rope 43737 £5.99 Add
072 43737-AF Hopper Rope 43737 £5.99 Add
073 1652-52 WHEEL BEARING - 32" LAWN SWEEP N/A POA
073 1652-52 WHEEL BEARING - 32" LAWN SWEEP N/A POA
074 43079-AF CARR, BOLT 5/16-18 X 1 £3.22 Add
075 23387-AF STELLSCHIENE 23387 £11.38 Add
076 43086-AF Lock Washer, 5/16" 43086 £3.48 Add
077 43083-AF HEX NUT £3.32 Add
078 43081-AF FLAT WASHER £3.49 Add
079 23400-AF SPACER £5.85 Add
080 43720-AF KNOB (RED) £7.83 Add
081 43080-AF CARRIAGE BOLT £3.49 Add
082 R-19182410 FL.-WASH. 17/32" I.D. X 1-1 1-1/2" O.D. X 1/8" THK USED ON BOTH MODELS. N/A POA
