Parts list

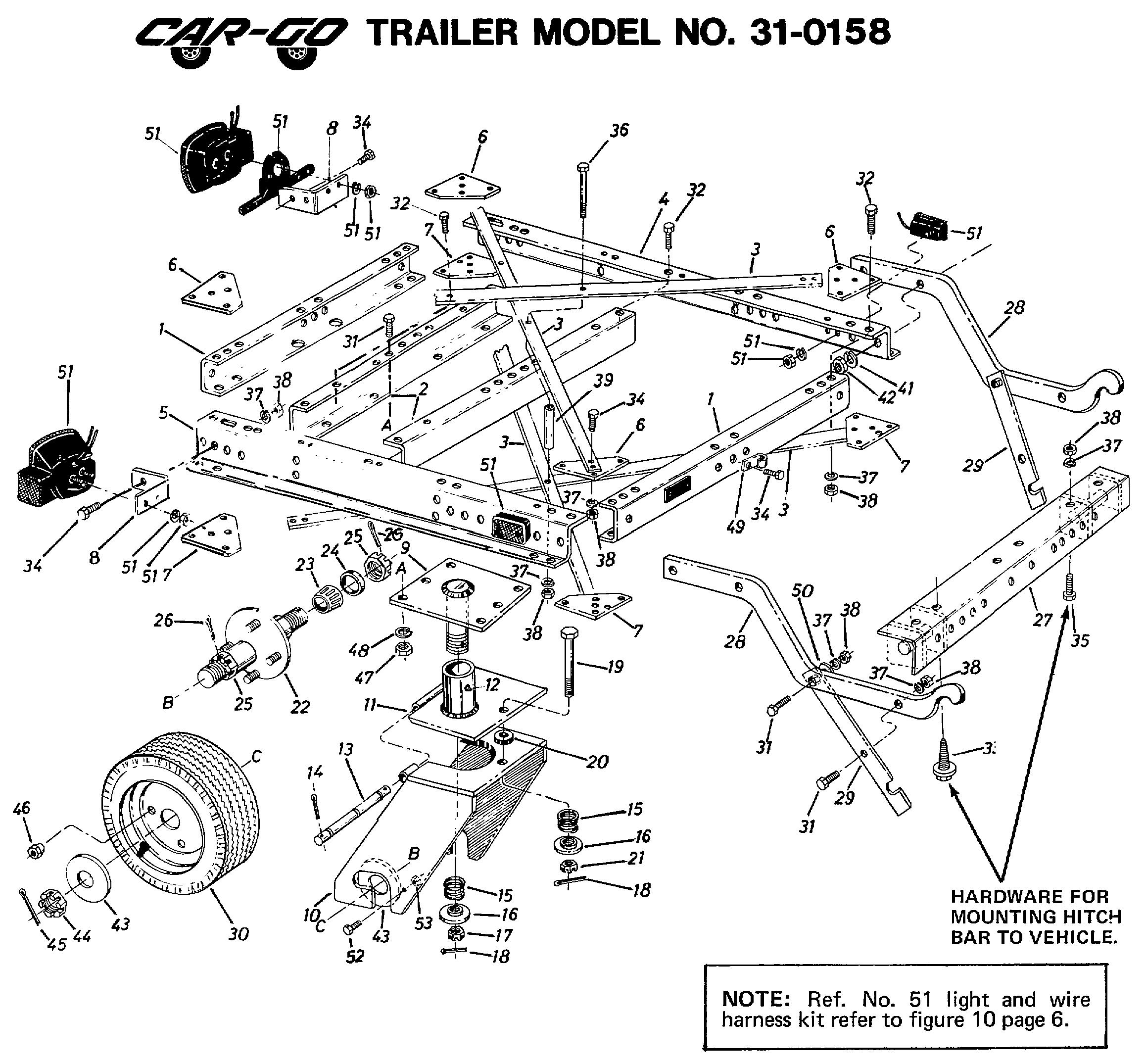

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
43531-AF
|
OWNERS MANUAL
|
N/A
|
POA
|
|
001
|
23234-AF
|
RAIL, FRAME CROSS MEMBER
|
N/A
|
POA
|
|
002
|
23246-AF
|
CHANNEL, CROSS RAIL - WHEEL YOKE
|
N/A
|
POA
|
|
003
|
23247-AF
|
STRAP, FRAME
|
N/A
|
POA
|
|
004
|
23235-AF
|
RAIL, FRAME SIDE (L.H.)
|
N/A
|
POA
|
|
005
|
23236-AF
|
RAIL, FRAME SIDE (R.H.)
|
N/A
|
POA
|
|
006
|
23248-AF
|
PLATE, TOP CORNER
|
N/A
|
POA
|
|
007
|
23249-AF
|
PLATE, CORNER BOTTOM
|
N/A
|
POA
|
|
008
|
23244-AF
|
BRACKET, TAIL LIGHT
|
N/A
|
POA
|
|
009
|
62298-AF
|
ASS'Y., PIVOT WHEEL YOKE
|
N/A
|
POA
|
|
010
|
62299-AF
|
ASS'Y., WHEEL YOKE
|
N/A
|
POA
|
|
011
|
62300-AF
|
ASS'Y., HINGE - PIVOT WHEEL WITH BEARINGS
|
N/A
|
POA
|
|
012
|
43520-AF
|
ZERK, GREASE FITTING
|
N/A
|
POA
|
|
013
|
23258-AF
|
SHAFT, HINGE 5/8" DIA.
|
N/A
|
POA
|
|
014
|
43010-AF
|
COTTER PIN
|
£3.49
|
Add
|
|
015
|
43521-AF
|
SPRING, COMPRESSION
|
N/A
|
POA
|
|
016
|
23288-AF
|
WASHER, SPRING RETAINER
|
N/A
|
POA
|
|
017
|
43523-AF
|
NUT, CASTLE 3/4-16 THD.
|
N/A
|
POA
|
|
018
|
43093-AF
|
COTTER PIN
|
£3.11
|
Add
|
|
019
|
23289-AF
|
BOLT, HEX 5/8-11 X 3-1/2" LONG (W/HOLE)
|
N/A
|
POA
|
|
020
|
43576-AF
|
WASHER, URETHANE 1/8" THK. X 2" DIA.
|
N/A
|
POA
|
|
021
|
43526-AF
|
NUT, HEX SLOTTED 5/8-11 THD.
|
N/A
|
POA
|
|
022
|
62302-AF
|
ASS'Y., AXLE WITH WHEEL HUB
|
N/A
|
POA
|
|
023
|
43504-AF
|
BEARING, 1.0" TAPERED ROLLER
|
N/A
|
POA
|
|
024
|
43503-AF
|
SEAL, WHEEL HUB BRG.
|
N/A
|
POA
|
|
025
|
43500-AF
|
NUT, HEX CASTLE 1.0" - 14 N.F.
|
N/A
|
POA
|
|
026
|
43501-AF
|
Cotter Pin, 9/64" x 1-1/2" 43501
|
£3.48
|
Add
|
|
027
|
62303-AF
|
ASS'Y., ANGLE HITCH BAR
|
N/A
|
POA
|
|
028
|
23263-AF
|
ARM, HITCH
|
N/A
|
POA
|
|
029
|
23285-AF
|
BAR, HITCH LOCK
|
N/A
|
POA
|
|
030
|
43507-AF
|
ASS'Y. WHEEL & TIRE 16 X 4.80 LOAD RANGE "B"
|
N/A
|
POA
|
|
031
|
43556-AF
|
BOLT, HEX 7/16-14 X 1-1/4" LONG
|
N/A
|
POA
|
|
032
|
43001-AF
|
HEX BOLT (RED)
|
£3.49
|
Add
|
|
033
|
43565-AF
|
BOLT, HEX 3/8 X 1-1/4" LONG SELF THD.
|
N/A
|
POA
|
|
034
|
43407-AF
|
Bolt, Hex 3/8-16 x 3/4" Lg. * 43407
|
£3.91
|
Add
|
|
035
|
43087-AF
|
Hex Bolt, 3/8-16 x 1-1/4" Long 43087
|
£4.58
|
Add
|
|
036
|
43527-AF
|
BOLT, HEX 3/8 X 3-3/4" LONG
|
N/A
|
POA
|
|
037
|
736-0169
|
L. WASHER
|
£2.89
|
Add
|
|
038
|
43082-AF
|
HEX LOCK NUT
|
£4.12
|
Add
|
|
039
|
23264-AF
|
TUBE, SPACER
|
N/A
|
POA
|
|
040
|
43351-AF
|
Hex Bolt, 1/2-1 3 x 1-1/4" 43351
|
£5.18
|
Add
|
|
041
|
43353-AF
|
Lock Washer, 1/2" 43353
|
£3.08
|
Add
|
|
042
|
43262-AF
|
NUT 1/2-13 HEX LOCK
|
£6.20
|
Add
|
|
043
|
43528-AF
|
Flat Washer, 1" 43528
|
£4.58
|
Add
|
|
044
|
43500-AF
|
NUT, HEX CASTLE 1.0" - 14 N.F.
|
N/A
|
POA
|
|
045
|
43501-AF
|
Cotter Pin, 9/64" x 1-1/2" 43501
|
£3.48
|
Add
|
|
046
|
43514-AF
|
NUT, HEX 1/2-20 SPL. TAPERED (WHEEL LUG)
|
N/A
|
POA
|
|
047
|
43554-AF
|
NUT, HEX LOCK 7/16-14 THD.
|
N/A
|
POA
|
|
048
|
43555-AF
|
WASHER 7/16" LOCK
|
N/A
|
POA
|
|
049
|
43345-AF
|
CLAMP. WIRE 3/8" PLASTIC COATED
|
£4.02
|
Add
|
|
050
|
43070-AF
|
Washer, 3/8"
|
£3.91
|
Add
|
|
051
|
43506-AF
|
ASS'Y. TAIL LIGHT/WIRE HARNESS KIT COMP.
|
N/A
|
POA
|
|
052
|
43182-AF
|
Hex Bolt, 5/16" x 3/4" 43182
|
£4.31
|
Add
|
|
053
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
