Parts list

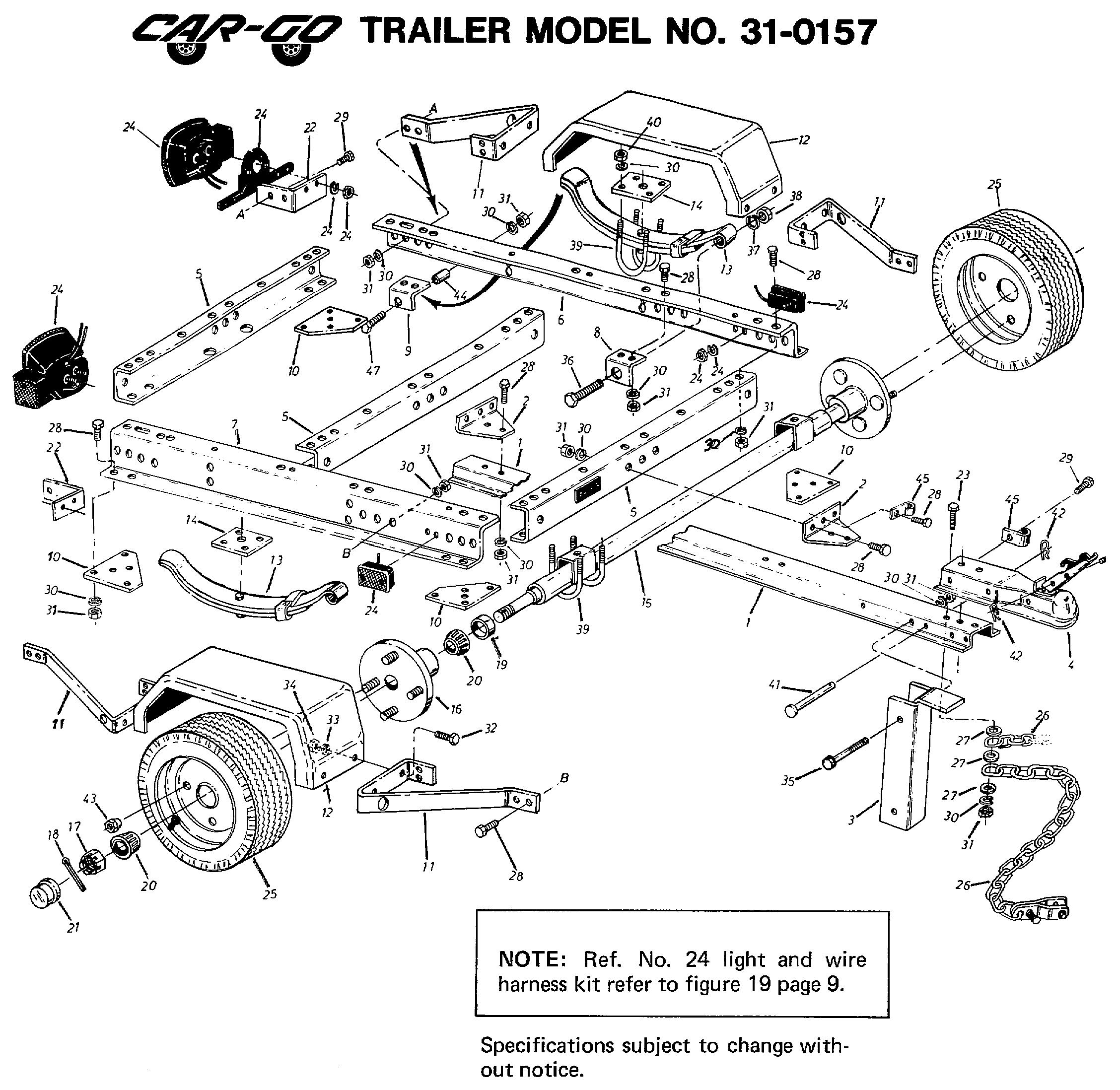

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
43517-AF
|
OWNERS MANUAL
|
N/A
|
POA
|
|
001
|
23231-AF
|
CHANNEL, TONGUE
|
N/A
|
POA
|
|
002
|
23232-AF
|
BRACKET, TONGUE
|
N/A
|
POA
|
|
003
|
23233-AF
|
CHANNEL, TONGUE STAND
|
N/A
|
POA
|
|
004
|
43495-AF
|
ASS'Y. - 1-7/8" BALL HITCH COUPLER - CLASS-I
|
N/A
|
POA
|
|
005
|
23234-AF
|
RAIL, FRAME CROSS MEMBER
|
N/A
|
POA
|
|
006
|
23235-AF
|
RAIL, FRAME SIDE (L.H.)
|
N/A
|
POA
|
|
007
|
23236-AF
|
RAIL, FRAME SIDE (R.H.)
|
N/A
|
POA
|
|
008
|
23237-AF
|
BRACKET, SPRING MOUNT (FRONT)
|
N/A
|
POA
|
|
009
|
23238-AF
|
BRACKET, SPRING MOUNT (REAR)
|
N/A
|
POA
|
|
010
|
23249-AF
|
PLATE, CORNER BOTTOM
|
N/A
|
POA
|
|
011
|
23241-AF
|
BRACKET, FENDER BRACE
|
N/A
|
POA
|
|
012
|
23242-AF
|
FENDER
|
N/A
|
POA
|
|
013
|
43496-AF
|
ASS'Y. - LEAF SPRING COMPLETE
|
N/A
|
POA
|
|
014
|
43497-AF
|
PLATE, SPRING KEEPER
|
N/A
|
POA
|
|
015
|
62292-AF
|
ASS'Y., AXLE (SUB-ASS'Y. W/HUBS)
|
N/A
|
POA
|
|
016
|
43499-AF
|
ASS'Y., WHEEL HUB (COMP. W/BRG. CUPS)
|
N/A
|
POA
|
|
017
|
43500-AF
|
NUT, HEX CASTLE 1.0" - 14 N.F.
|
N/A
|
POA
|
|
018
|
43501-AF
|
Cotter Pin, 9/64" x 1-1/2" 43501
|
£3.48
|
Add
|
|
019
|
43503-AF
|
SEAL, WHEEL HUB BRG.
|
N/A
|
POA
|
|
020
|
43504-AF
|
BEARING, 1.0" TAPERED ROLLER
|
N/A
|
POA
|
|
021
|
43505-AF
|
CAP, WHEEL HUB
|
N/A
|
POA
|
|
022
|
23244-AF
|
BRACKET, TAIL LIGHT
|
N/A
|
POA
|
|
023
|
43087-AF
|
Hex Bolt, 3/8-16 x 1-1/4" Long 43087
|
£4.58
|
Add
|
|
024
|
43506-AF
|
ASS'Y. TAIL LIGHT/WIRE HARNESS KIT COMP.
|
N/A
|
POA
|
|
025
|
43507-AF
|
ASS'Y. WHEEL & TIRE 16 X 4.80 LOAD RANGE "B"
|
N/A
|
POA
|
|
026
|
43508-AF
|
ASS'Y. SAFETY CHAINS (PAIR)
|
N/A
|
POA
|
|
027
|
43070-AF
|
Washer, 3/8"
|
£3.91
|
Add
|
|
028
|
43407-AF
|
Bolt, Hex 3/8-16 x 3/4" Lg. * 43407
|
£3.91
|
Add
|
|
029
|
43001-AF
|
HEX BOLT (RED)
|
£3.49
|
Add
|
|
030
|
736-0169
|
L. WASHER
|
£2.89
|
Add
|
|
031
|
43082-AF
|
HEX LOCK NUT
|
£4.12
|
Add
|
|
032
|
43012-AF
|
BOLT
|
£3.32
|
Add
|
|
033
|
43177-AF
|
Washer, Lock 1/4" I.D.* 43177
|
£3.08
|
Add
|
|
034
|
712-0291
|
LOCK-NUT
|
£2.77
|
Add
|
|
035
|
43574-AF
|
Hex Bolt, 3/8-16 x 3"
|
N/A
|
POA
|
|
036
|
43510-AF
|
BOLT, HEX 1/2-13 X 2-3/4" LG.
|
N/A
|
POA
|
|
037
|
43353-AF
|
Lock Washer, 1/2" 43353
|
£3.08
|
Add
|
|
038
|
43262-AF
|
NUT 1/2-13 HEX LOCK
|
£6.20
|
Add
|
|
039
|
43511-AF
|
BOLT, "U" 3/8-24 X 4" LG.
|
N/A
|
POA
|
|
040
|
43512-AF
|
NUT, HEX 3/8-24 THD.
|
N/A
|
POA
|
|
041
|
43513-AF
|
CLEVIS PIN (RED)
|
£8.53
|
Add
|
|
042
|
43055-AF
|
COTTER PIN
|
£6.04
|
Add
|
|
043
|
43514-AF
|
NUT, HEX 1/2-20 SPL. TAPERED (WHEEL LUG)
|
N/A
|
POA
|
|
044
|
23239-AF
|
TUBE, SPACER SPRING MOUNT
|
N/A
|
POA
|
|
045
|
43345-AF
|
CLAMP. WIRE 3/8" PLASTIC COATED
|
£4.02
|
Add
|
|
046
|
43529-AF
|
PIN, CLEVIS 1/4" X 1.0" LG.
|
N/A
|
POA
|
|
047
|
43509-AF
|
BOLT 3/8-16 X 2-3/4 HEX HEAD
|
£4.58
|
Add
|
