FG750_0107

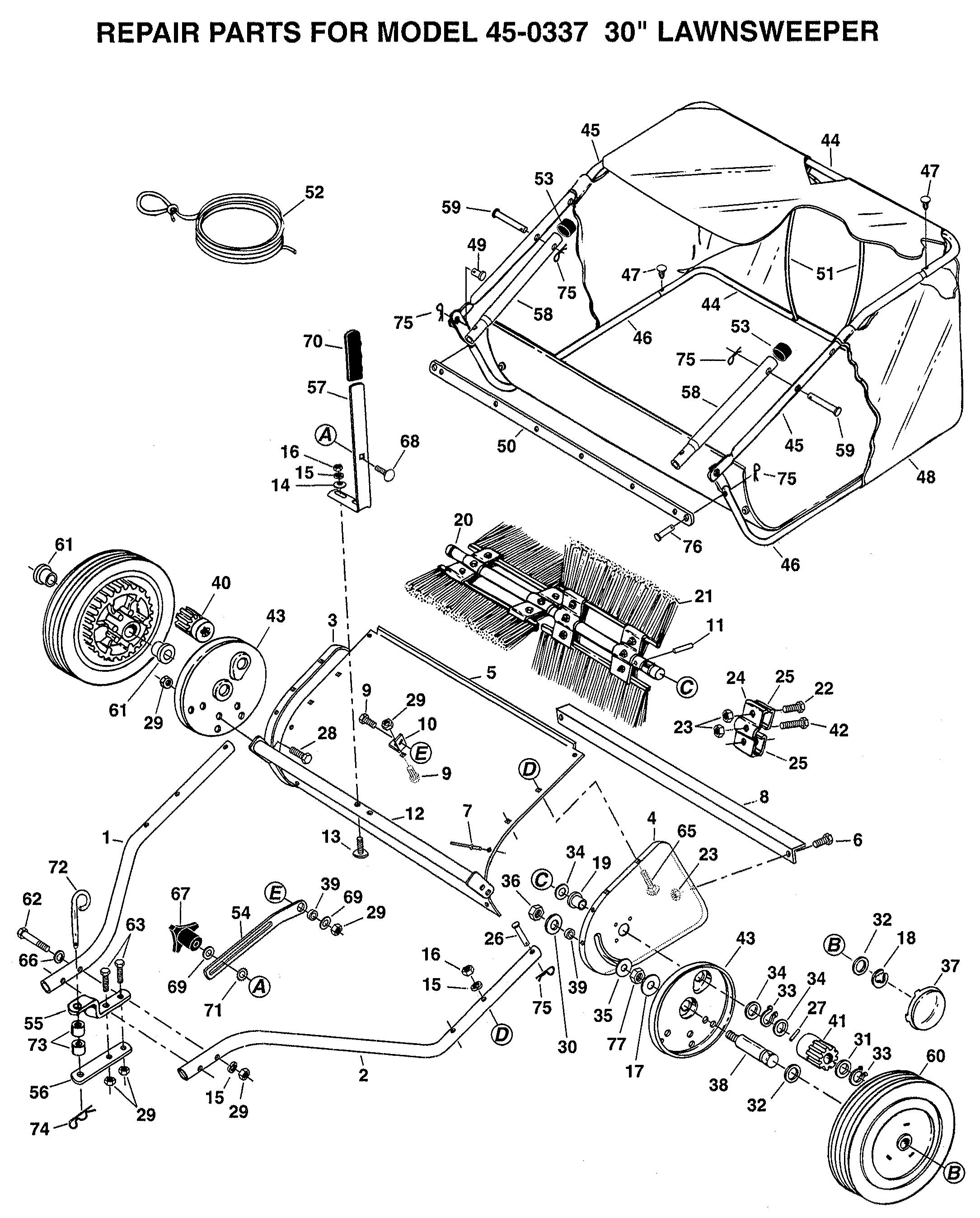

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG750_0107

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
48713-AF Owners Manual N/A POA
001 48646-AF HitchTube, R.H. N/A POA
002 48645-AF HitchTube, L.H. N/A POA
003 24950-AF End Plate, R.H. N/A POA
004 24951-AF End Plate, L.H. N/A POA
005 24989-AF Wrapper N/A POA
006 43175-AF Hex Bolt, 1/4-20 x 1/2" * 43175 £4.15 Add
007 C-9M5732 Pop Rivet (OBSOLETE) (OBSOLETE) (OBSOLETE) N/A POA
008 23887-AF Brace, Rear Support 23887 £22.12 Add
009 43182-AF Hex Bolt, 5/16" x 3/4" 43182 £4.31 Add
010 23826-AF Bracket, Angle £8.03 Add
011 43851-AF ROLL PIN £13.84 Add
012 64546-AF Height Adjustment Tube Assembly £111.90 Add
013 44947-AF Bolt, Curved Head 5/16-18 x 1-5/8" 44947 £4.05 Add
014 44695-AF Washer, Bowed 44695 £4.05 Add
015 43086-AF Lock Washer, 5/16" 43086 £3.48 Add
016 43083-AF HEX NUT £3.32 Add
017 R19131316-AF Washer, .8175 x 1.5 x .06 R19131316 N/A POA
018 716-0106A RING E TYPE .625 DIA SHAFT £3.33 Add
019 44909-AF BRUSH SHAFT £6.85 Add
020 23567-AF Brush Shaft 23567 £168.59 Add
021 43902-AF BRUSH £20.16 Add
022 43012-AF BOLT £3.32 Add
023 712-0291 LOCK-NUT £2.77 Add
024 23580-AF BRUSH RETAINER 42-0197 £9.24 Add
025 23581-AF BRUSH RETAINER 42-0197 £5.45 Add
026 46867-AF Clevis Pin, 1/4" x 1-3/4" Lg. 46867 £4.65 Add
027 47046-AF DOWELL PIN 1/4 X 3/4 £3.56 Add
028 44692-AF Bolt, Hex 5/16-18 x 1/2" Lg. 44692 £4.05 Add
029 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £9.35 Add
030 43070-AF Washer, 3/8" £3.91 Add
031 44006-AF WASHER £5.01 Add
032 44125-AF Washer, Flat .62" x 1.00" 44125 £4.05 Add
033 AF-1650-21 RETAINING RING £2.61 Add
034 40001-AF Washer, Shim 1-1/8" x .594" x .025" 44007-AF £3.58 Add
035 141-AF Washer, Flat 1-1/2" x .375" x .062" 141 £3.91 Add
036 1038-AF Nut, Nylock 3/8-24 Thread 1038 £3.48 Add
037 2674-32-AF Hub Cap 2674-32 N/A POA
038 44598-AF Axle 44598 £11.94 Add
039 23400-AF SPACER £5.85 Add
040 43886-AF Gear, Pinion R.H. (not shown) 43886 £23.48 Add
041 43885-AF PINION LH 11TEETH £21.85 Add
042 43661-AF HEX BOLT £3.11 Add
043 25102-AF Dust Cover £13.50 Add
044 48471-AF Tube, Hopper Frame (Rear) (OBSOLETE) N/A POA
045 48467-AF Tube, Upper Hopper Frame (Front) N/A POA
046 48728-AF Tube, Lower Hopper Frame (Front) N/A POA
047 48402-AF PLUG £6.01 Add
048 48396-AF Hopper Bag £190.44 Add
049 48366-AF PIN £8.53 Add
050 23870-AF Strap, Bag Frame 23870 £19.19 Add
051 43926-AF HOPPER SUPPORT ROD £8.99 Add
052 43737-AF Hopper Rope 43737 £5.99 Add
053 44481-AF Cap, Vinyl 44481 £4.05 Add
054 24979-AF STRAP HT ADJUST £24.95 Add
055 23687-AF Hitch Bracket 23687 £33.95 Add
056 24192-AF BRACKET (EXRED) £8.88 Add
057 23850-AF Handle, Height Adjustment 23850 £28.31 Add
058 48323-AF Tube, Bag Arm £30.99 Add
059 43513-AF CLEVIS PIN (RED) £8.53 Add
060 44930-AF WHEEL ASSY 38" SWEEPER £70.41 Add
061 741-0249 BEARING £8.44 Add
062 44292-AF Bolt, Hex 5/16-18 x 2-1/2" Lg. 44179 £4.05 Add
063 441 80 Bolt, Hex 511 6-1 8 x 2" Lg. N/A POA
064 43070-AF Washer, 3/8" £3.91 Add
065 43681-AF Bolt, Carriage 5/16-18 x 1-1/2" 43681 £3.48 Add
066 R19111116-AF WASHER £3.76 Add
067 43720-AF KNOB (RED) £7.83 Add
068 43080-AF CARRIAGE BOLT £3.49 Add
069 43081-AF FLAT WASHER £3.49 Add
070 43943-AF Handle Grip 43943 £8.46 Add
071 44732-AF TOOTH LOCK WASHER £3.49 Add
072 23353-AF HITCH PIN £19.20 Add
073 23368-AF Tube, Hitch Spacer 23368 £8.18 Add
074 43343-AF PIN COTTER £4.20 Add
075 43055-AF COTTER PIN £6.04 Add
076 48365-AF PIN £4.92 Add
077 44684-AF Jam Nut, 3/8-24 Thread 44684 £4.05 Add
