Parts list

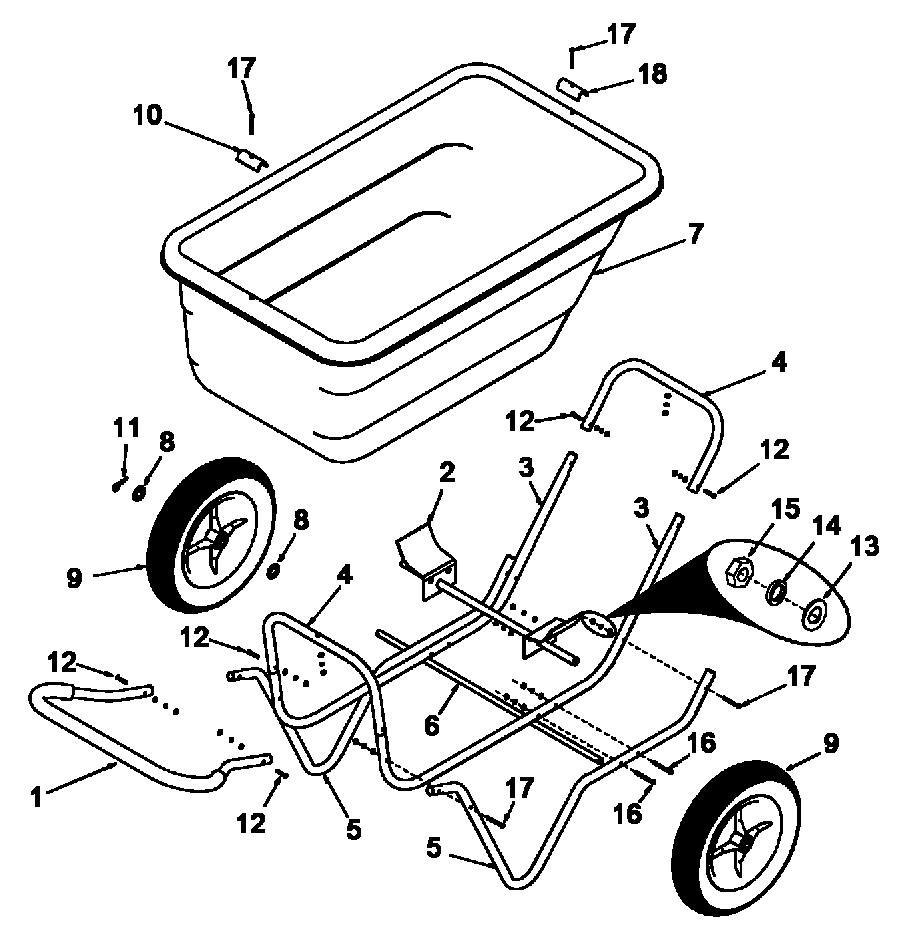

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
40034
|
Instruction Sheet
|
N/A
|
POA
|
|
001
|
40030
|
Tube, Handle w/grip
|
N/A
|
POA
|
|
002
|
40032
|
Ass'y, Axle Support
|
N/A
|
POA
|
|
003
|
40027
|
Tube, Base
|
N/A
|
POA
|
|
004
|
40029
|
Tube, U Brace
|
N/A
|
POA
|
|
005
|
40028
|
Tube, Leg Support
|
N/A
|
POA
|
|
006
|
40031
|
Axle
|
N/A
|
POA
|
|
007
|
40026
|
Tray, Poly
|
N/A
|
POA
|
|
008
|
R19212016-AF
|
WASHER 21/32X1-1/4X16 GA
|
£3.87
|
Add
|
|
009
|
40033
|
Wheel
|
N/A
|
POA
|
|
010
|
40036
|
Clamp, Rear (Narrow)
|
N/A
|
POA
|
|
011
|
43343-AF
|
PIN COTTER
|
£4.20
|
Add
|
|
012
|
40039
|
Bolt, Slot Pan M5 x 34
|
N/A
|
POA
|
|
013
|
40040
|
Washer, Flat M5
|
N/A
|
POA
|
|
014
|
40041-AF
|
Washer, Lock M5 40041
|
N/A
|
POA
|
|
015
|
40042
|
Nut, Plain M5
|
N/A
|
POA
|
|
016
|
40037
|
Bolt, Slot Pan M5 x 68
|
N/A
|
POA
|
|
017
|
40038
|
Bolt, Slot Pan M5 x 58
|
N/A
|
POA
|
|
018
|
40035
|
Clamp, Front (Wide)
|
N/A
|
POA
|
