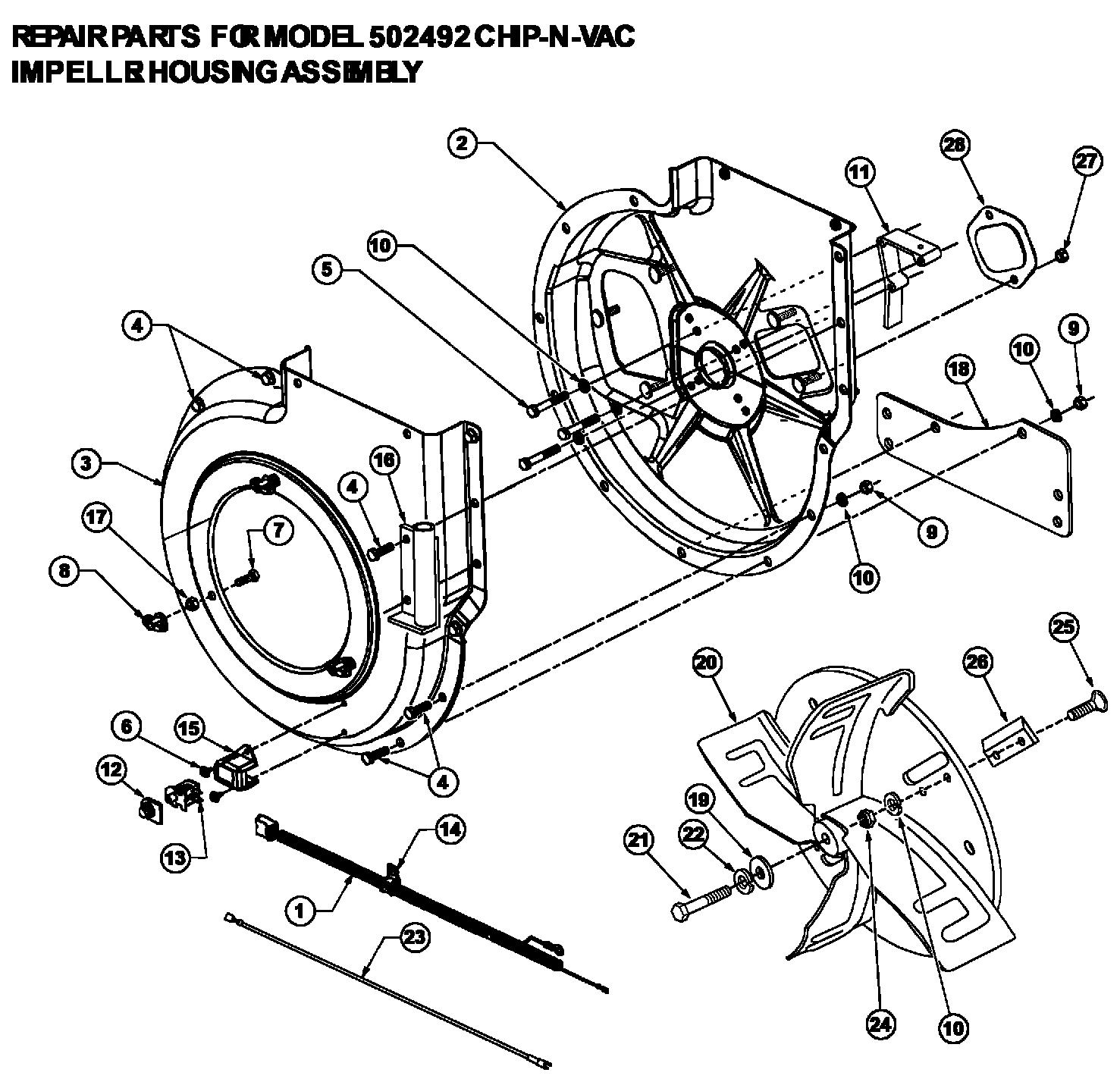

Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
001
|
629-0241A
|
Harness, Wire
|
£80.88
|
Add
|
|
002
|
63993
|
Housing Ass'y. Inner
|
N/A
|
POA
|
|
003
|
24633
|
Housing Assembly, Outer
|
£6.94
|
Add
|
|
004
|
43182-AF
|
Hex Bolt, 5/16" x 3/4" 43182
|
£4.31
|
Add
|
|
005
|
710-0772
|
HEX BOLT
|
£11.63
|
Add
|
|
006
|
710-1268
|
SCREW HEX WASHER HD TAPP
|
£3.26
|
Add
|
|
007
|
43063-AF
|
BOLT
|
£4.12
|
Add
|
|
008
|
712-0421
|
KNOB
|
£6.43
|
Add
|
|
009
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
010
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
011
|
719-0330A
|
Adapter, Mounting
|
£76.48
|
Add
|
|
012
|
725-1700
|
Switch Cover
|
£15.59
|
Add
|
|
013
|
725-3166
|
SWITCH SNAP MOUNT CLOSED/GREY
|
£15.69
|
Add
|
|
014
|
726-0272
|
Clamp
|
£2.98
|
Add
|
|
015
|
731-1613
|
Cover, Switch
|
£14.13
|
Add
|
|
016
|
63226
|
Hose Hanger Bracket Ass'y. (Ref. item #16 on page 22.)
|
N/A
|
POA
|
|
017
|
712-3046
|
Nut, Hex Jam 5/16-18 Thd.
|
£3.33
|
Add
|
|
018
|
24606
|
Spacer, Housing
|
N/A
|
POA
|
|
019
|
736-0247
|
F.I. WASH
|
£8.70
|
Add
|
|
020
|
63924
|
Impeller Assembly
|
N/A
|
POA
|
|
021
|
710-1273
|
Bolt, Hex 3/8-24 x 2-3/4"
|
£16.29
|
Add
|
|
022
|
736-0169
|
L. WASHER
|
£2.89
|
Add
|
|
023
|
629-0923
|
Harness Adapter
|
N/A
|
POA
|
|
024
|
44738-AF
|
Nut, Hex Lock 5/16-24 "Unitork" 44738
|
£3.91
|
Add
|
|
025
|
710-1054
|
SCREW FLAT HEAD
|
£7.99
|
Add
|
|
026
|
742-0544
|
Blade, Chipper
|
£77.24
|
Add
|
|
027
|
712-3004A
|
HEX FLANGE NUT
|
£2.97
|
Add
|
|
028
|
781-0627
|
Cover, Chipper
|
£6.84
|
Add
|
