Parts list

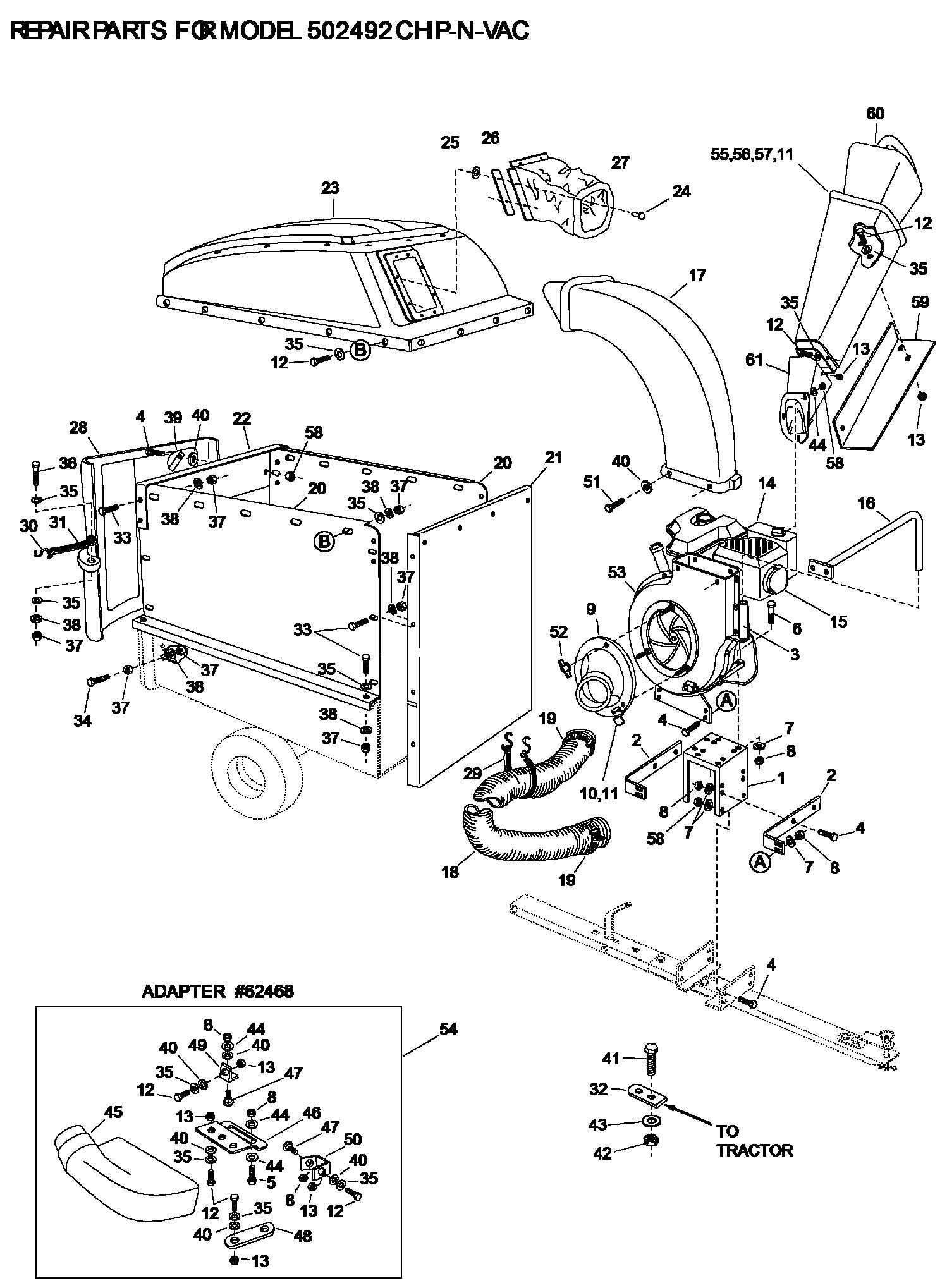

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
47829
|
Owner's Manual
|
N/A
|
POA
|
|
001
|
24080A5
|
Engine Base 24080
|
N/A
|
POA
|
|
002
|
24078
|
Brace, Housing
|
N/A
|
POA
|
|
003
|
63226
|
Hose Hanger Bracket Ass'y. (Ref. item #16 on page 22.)
|
N/A
|
POA
|
|
004
|
43182-AF
|
Hex Bolt, 5/16" x 3/4" 43182
|
£4.31
|
Add
|
|
005
|
43063-AF
|
BOLT
|
£4.12
|
Add
|
|
006
|
710-0442
|
Bolt, Hex 5/16-18 x 1-1/2" 43085
|
£10.13
|
Add
|
|
007
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
008
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
009
|
63375
|
Assembly, Hose Adapter (Nozzle) (Includes items 10 and 11))
|
N/A
|
POA
|
|
010
|
781-0635
|
Bracket, Switch (Actuator)
|
£37.62
|
Add
|
|
011
|
728-3001
|
RIVET, POP
|
£4.17
|
Add
|
|
012
|
43012-AF
|
BOLT
|
£3.32
|
Add
|
|
013
|
712-0107
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
014
|
75201554811
|
Engine, Tecumseh 8 HP
|
N/A
|
POA
|
|
015
|
24097
|
Deflector, Muffler
|
N/A
|
POA
|
|
016
|
63227
|
Hose Hanger Rod Ass'y.
|
N/A
|
POA
|
|
017
|
46420-AF
|
Deflector w/ Elbow 46420
|
£333.97
|
Add
|
|
018
|
43792-AF
|
Hose 43792
|
£340.87
|
Add
|
|
019
|
43793-AF
|
Hose Clamp 43793
|
£18.87
|
Add
|
|
020
|
24678
|
Side Panel Cart Extension
|
N/A
|
POA
|
|
021
|
24679
|
Front Panel Cart Extension
|
N/A
|
POA
|
|
022
|
23836-AF
|
Cross Brace 23836
|
£39.05
|
Add
|
|
023
|
63217
|
Hard Top Assembly (Includes 24,25,26,27)
|
N/A
|
POA
|
|
024
|
43882-AF
|
Rivet, Stainless 43882
|
£4.85
|
Add
|
|
025
|
43910-AF
|
Washer, Flat #10 SAE 43910
|
£3.19
|
Add
|
|
026
|
23842-AF
|
Boot Mounting Strap 23842
|
£6.99
|
Add
|
|
027
|
46480-AF
|
Vinyl Boot (Hardtop) 46480
|
£80.05
|
Add
|
|
028
|
44790-AF
|
Poly Rear Door 44790
|
£314.16
|
Add
|
|
029
|
43790-AF
|
Tarp Strap, 25" 43790
|
£28.31
|
Add
|
|
030
|
44849
|
"S" Hook
|
N/A
|
POA
|
|
031
|
44850
|
Tarp Strap
|
N/A
|
POA
|
|
032
|
23540-AF
|
Hitch Plate 23540
|
£13.72
|
Add
|
|
033
|
43866-AF
|
Bolt, Hex 1/4-20 x 5/8" Lg. Gr. 5 43866
|
£3.48
|
Add
|
|
034
|
43661-AF
|
HEX BOLT
|
£3.11
|
Add
|
|
035
|
43088-AF
|
FLAT WASHER
|
£3.11
|
Add
|
|
036
|
1509-090
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
037
|
HG-43178
|
NUT (RED)
|
£10.69
|
Add
|
|
038
|
43177-AF
|
Washer, Lock 1/4" I.D.* 43177
|
£3.08
|
Add
|
|
039
|
23789-AF
|
Door Latch 23789
|
£7.06
|
Add
|
|
040
|
1543-69-AF
|
Washer, Nylon 1543-069
|
N/A
|
POA
|
|
041
|
43351-AF
|
Hex Bolt, 1/2-1 3 x 1-1/4" 43351
|
£5.18
|
Add
|
|
042
|
712-0384
|
NUT 1/2-13 HEX LOCK 43262
|
£14.44
|
Add
|
|
043
|
43352-AF
|
Flat Washer, 7/16" 43352
|
£3.48
|
Add
|
|
044
|
43081-AF
|
FLAT WASHER
|
£3.49
|
Add
|
|
045
|
43830
|
Deck Adapter
|
N/A
|
POA
|
|
046
|
23560
|
Deck Adapter Bracket
|
N/A
|
POA
|
|
047
|
43080-AF
|
CARRIAGE BOLT
|
£3.49
|
Add
|
|
048
|
23825
|
Mounting Strap
|
N/A
|
POA
|
|
049
|
23826
|
Angle Bracket
|
N/A
|
POA
|
|
050
|
23827
|
Mounting Bracket
|
N/A
|
POA
|
|
051
|
47630
|
Hex Bolt, 5/16-18 x 3/4" (Thread Forming)
|
N/A
|
POA
|
|
052
|
712-0421
|
KNOB
|
£6.43
|
Add
|
|
054
|
62468
|
Deck Adapter Kit (Includes parts in box on page 30)
|
N/A
|
POA
|
|
055
|
63376
|
Assembly, Chute, Chipper (Upper)
|
N/A
|
POA
|
|
056
|
735-0249
|
Flap, Chute (Included in item 55)
|
£39.38
|
Add
|
|
057
|
781-0633
|
Strap, Flap (Included in item 55)
|
£9.50
|
Add
|
|
058
|
712-3004A
|
HEX FLANGE NUT
|
£2.97
|
Add
|
|
059
|
24098
|
Bracket, Chute Reinforcement
|
N/A
|
POA
|
|
060
|
731-1617
|
TAMPER PLUG
|
£97.38
|
Add
|
|
061
|
681-0068A
|
Chute Assembly 681-0068
|
£168.21
|
Add
|
