AGR08_0039A

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

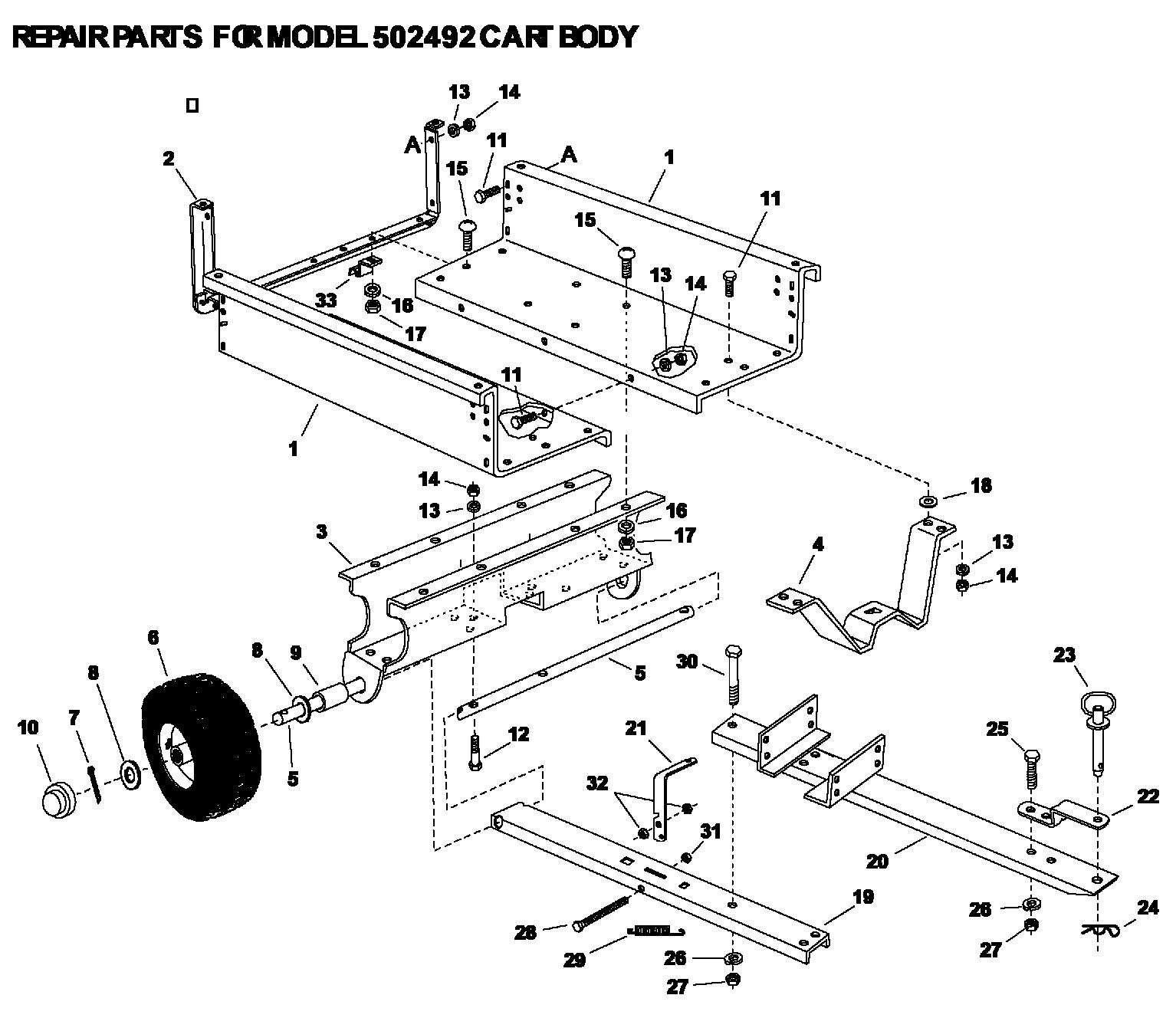

Ref	No	Description	Price
001	23985	Cart Body	N/A	POA
002	62458-AF	Tailgate Reinforcement Bracket 62458	£98.48	Add
003	23507-AF	Wheel Support 23507	£240.05	Add
004	24497	Latch Stand Bracket	N/A	POA
005	23488-AF	Axle, Wheel 1" Dia. 23488	£125.17	Add
006	46272	TIRE	N/A	POA
007	43093-AF	COTTER PIN	£3.11	Add
008	43601-AF	WASHER	£8.99	Add
009	44678-AF	Spacer (45-0351) 44678	£14.07	Add
010	731-0484A	HUB CAP	£5.05	Add
011	43866-AF	Bolt, Hex 1/4-20 x 5/8" Lg. Gr. 5 43866	£3.48	Add
012	1509-69-AF	HEX BOLT, 1/4-20 X 1-3/4" LG.	£2.77	Add
013	43177-AF	Washer, Lock 1/4" I.D.* 43177	£3.08	Add
014	HG-43178	NUT (RED)	£10.69	Add
015	43814-AF	SLOTTED TRUSS HEADBOLT(5/16-18x3/4)	£3.11	Add
016	43086-AF	Lock Washer, 5/16" 43086	£3.48	Add
017	43083-AF	HEX NUT	£3.32	Add
018	43088-AF	FLAT WASHER	£3.11	Add
019	63917	Tongue Weldment Ass'y. (Rear)	N/A	POA
020	63155	Tongue Weldment Ass'y. (Front)	N/A	POA
021	24614	Latch Lock Lever	£21.90	Add
022	23475-AF	HITCH BRACKET HD	£33.80	Add
023	43884-AF	Hitch Pin 43884	£42.16	Add
024	43343-AF	PIN COTTER	£4.20	Add
025	43087-AF	Hex Bolt, 3/8-16 x 1-1/4" Long 43087	£4.58	Add
026	736-0169	L. WASHER	£2.89	Add
027	43082-AF	HEX LOCK NUT	£4.12	Add
028	47407-AF	Hex Bolt, 5/16-18 x 3-3/4" * 47407	£4.20	Add
029	47408	Extension Spring	N/A	POA
030	43574	Hex Bolt, 3/8-16 x 3"	N/A	POA
031	712-0158	NUT, HEX CENTER LOCK, 5/16-18	£9.35	Add
032	712-0429	NUT HEX.INS L NUT	£4.92	Add
033	23838-AF	Door Support 23838	£20.42	Add
