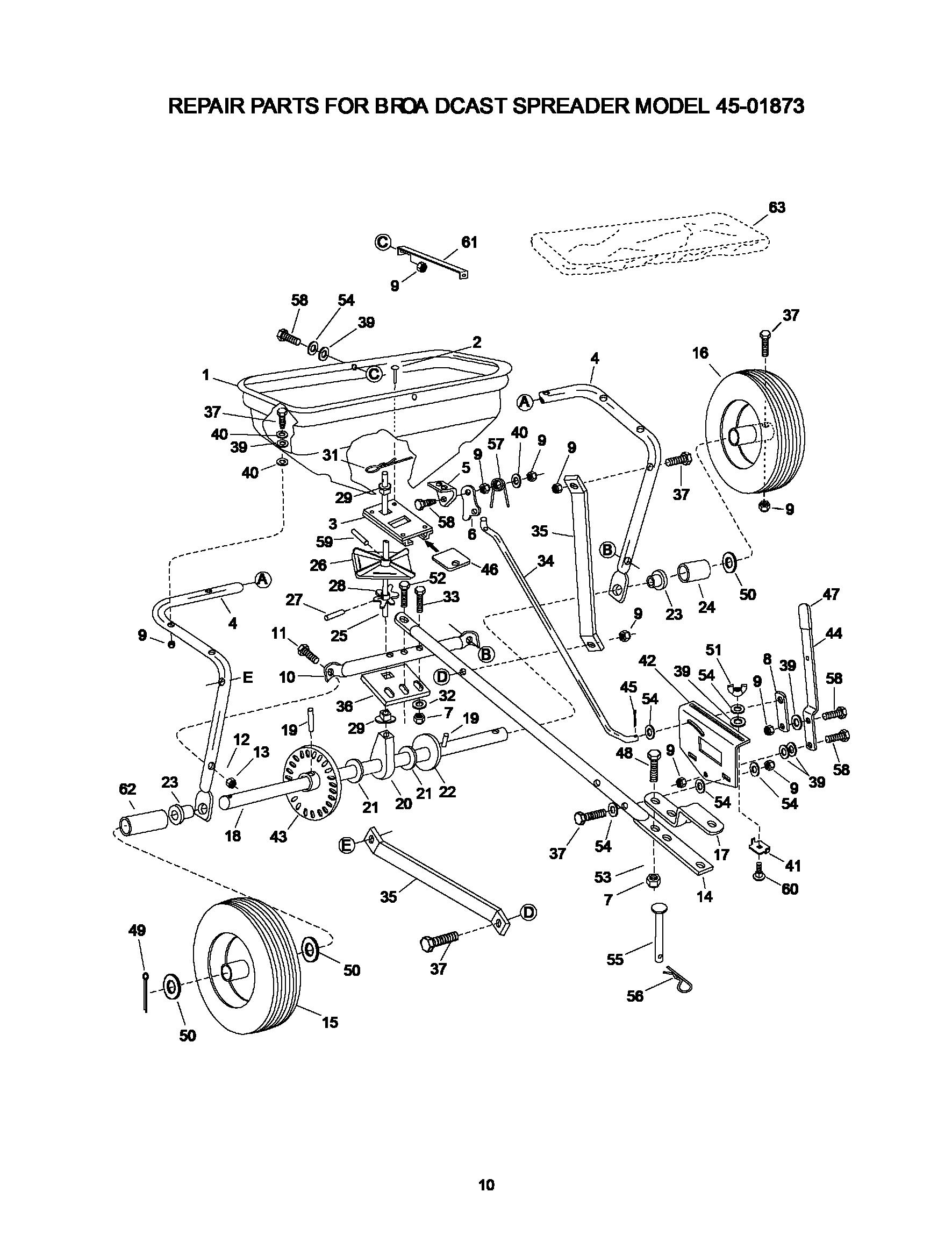

Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
48666
|
Owner's Manual
|
N/A
|
POA
|
|
001
|
44480-AF
|
Hopper 44480
|
£277.26
|
Add
|
|
002
|
43882-AF
|
Rivet, Stainless 43882
|
£4.85
|
Add
|
|
003
|
62482-AF
|
ASSY GUIDE CLOSURE
|
£57.27
|
Add
|
|
004
|
444621
|
Tube, Frame 44462
|
N/A
|
POA
|
|
005
|
23753-AF
|
SLIDE GATE ANGLE BRACKET
|
£3.62
|
Add
|
|
006
|
23758-AF
|
SLIDE GATE BRACKET
|
£3.87
|
Add
|
|
007
|
43082-AF
|
HEX LOCK NUT
|
£4.12
|
Add
|
|
008
|
24857
|
Flow Control Link
|
N/A
|
POA
|
|
009
|
712-0107
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
010
|
43808-AF
|
Tube, Crossover 43808
|
£57.98
|
Add
|
|
011
|
43084-AF
|
BOLT
|
£2.56
|
Add
|
|
012
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
013
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
014
|
44487-AF
|
Tube, Hitch 44487
|
£63.99
|
Add
|
|
015
|
43008-AF
|
WHEEL 4.8 x 4
|
£60.36
|
Add
|
|
016
|
44459001
|
Wheel, Drive 44459
|
N/A
|
POA
|
|
017
|
23687-AF
|
Hitch Bracket 23687
|
£33.95
|
Add
|
|
018
|
25017
|
SHAFT, AXLE
|
£77.42
|
Add
|
|
019
|
43851-AF
|
ROLL PIN
|
£13.84
|
Add
|
|
020
|
43871-AF
|
Bushing, Axle Shaft 43871
|
£22.95
|
Add
|
|
021
|
1540-032
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
022
|
1540-162-AF
|
Washer, Flat 1/2" 1540-162
|
£6.62
|
Add
|
|
023
|
47615
|
BEARING FLANGE
|
£21.89
|
Add
|
|
024
|
48665
|
SPACER TUBE (SHORT)
|
£13.98
|
Add
|
|
025
|
25305-AF
|
Shaft, Sprocket 25305
|
N/A
|
POA
|
|
026
|
04367
|
SPREADER PLATE
|
£61.33
|
Add
|
|
027
|
43850-AF
|
ROLL PIN
|
£6.78
|
Add
|
|
028
|
44468-AF
|
SPROCKET 6T
|
£6.85
|
Add
|
|
029
|
44285-AF
|
BUSHING DELRIN
|
£5.63
|
Add
|
|
031
|
48934-AF
|
HAIRPIN
|
£3.49
|
Add
|
|
032
|
736-0692
|
Flat Washer, 3/8" 43070
|
£3.20
|
Add
|
|
033
|
41576-AF
|
Bolt, Hex 3/8-16 x 1-3/4" Lg.* 41576
|
£4.05
|
Add
|
|
034
|
44469-AF
|
Rod, Flow Control 44469
|
£28.51
|
Add
|
|
035
|
23525-AF
|
Brace, Hitch 23525
|
£38.89
|
Add
|
|
036
|
23762-AF
|
Shaft Support Plate 23762
|
£11.15
|
Add
|
|
037
|
710-0136
|
Bolt, Hex 1/4-20 x 1-3/4" 1509-069
|
£3.58
|
Add
|
|
039
|
1543-69-AF
|
Washer, Nylon 1543-069
|
N/A
|
POA
|
|
040
|
43088-AF
|
FLAT WASHER
|
£3.11
|
Add
|
|
041
|
24858-AF
|
STOP (ADJUSTABLE)
|
£3.49
|
Add
|
|
042
|
24855-AF
|
Bracket, Flow Control Mount 24855
|
£19.79
|
Add
|
|
043
|
62474-AF
|
ASSY GEAR
|
£87.01
|
Add
|
|
044
|
24859-AF
|
Flow Control Arm 24859
|
£14.93
|
Add
|
|
045
|
44101-AF
|
Cotter Pin 3/32" x 3/4" Lg.* 44101
|
£3.91
|
Add
|
|
046
|
23533-AF
|
PLATE CLOSURE
|
£15.33
|
Add
|
|
047
|
43848-AF
|
Grip, Flow Control Arm 43848
|
£5.99
|
Add
|
|
048
|
43087-AF
|
Hex Bolt, 3/8-16 x 1-1/4" Long 43087
|
£4.58
|
Add
|
|
049
|
43093-AF
|
COTTER PIN
|
£3.11
|
Add
|
|
050
|
43009-AF
|
WASHER1-5/8 INCH O D X 25/32 INCH ID
|
£5.26
|
Add
|
|
051
|
47141-AF
|
NUT NYLON WING 1/4-20 NU34
|
£3.49
|
Add
|
|
052
|
43054-AF
|
Bolt, Hex 3/8-16 x 2" Lg. * 43054
|
£5.79
|
Add
|
|
053
|
736-0169
|
L. WASHER
|
£2.89
|
Add
|
|
054
|
R19111116-AF
|
WASHER
|
£3.76
|
Add
|
|
055
|
47623
|
Hitch Pin
|
N/A
|
POA
|
|
056
|
43343-AF
|
PIN COTTER
|
£4.20
|
Add
|
|
057
|
44566-AF
|
SPRING TORSION
|
£4.74
|
Add
|
|
058
|
43012-AF
|
BOLT
|
£3.32
|
Add
|
|
059
|
46055A1
|
Pin, Spring 1/8" Dia. x 1" Lg. 46055
|
N/A
|
POA
|
|
060
|
44950-AF
|
BOLT
|
£3.62
|
Add
|
|
061
|
23697-AF
|
Strap, Hopper 23697
|
£33.01
|
Add
|
|
062
|
44474-AF
|
Spacer, 2.38" Long 44474
|
£5.79
|
Add
|
|
063
|
43962
|
COVER, VINYL HOPPER
|
£109.92
|
Add
|
