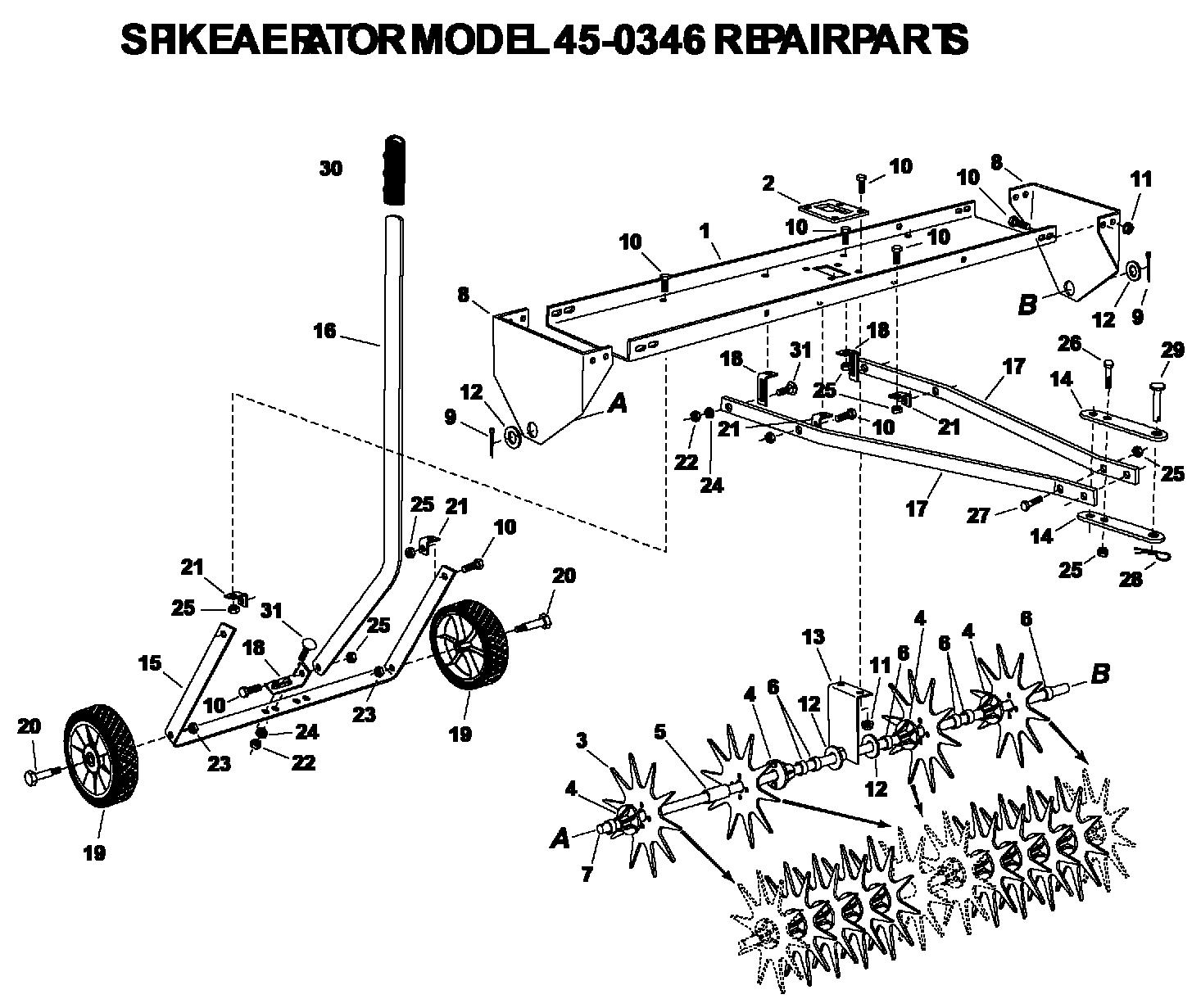

Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
48843
|
Owners Manual
|
N/A
|
POA
|
|
001
|
24597
|
Tray
|
N/A
|
POA
|
|
002
|
24594
|
Lift Plate
|
N/A
|
POA
|
|
003
|
23900-AF
|
Disk, Spike 23900
|
£20.49
|
Add
|
|
004
|
45148-AF
|
Hub, Spike Disk 45148
|
£7.23
|
Add
|
|
005
|
23708-AF
|
Spacer, 2.13" Long 23708
|
£8.91
|
Add
|
|
006
|
46838-AF
|
TUBE SPACER
|
£4.50
|
Add
|
|
007
|
24598
|
Axle
|
N/A
|
POA
|
|
008
|
24599
|
End Plate
|
N/A
|
POA
|
|
009
|
43501-AF
|
Cotter Pin, 9/64" x 1-1/2" 43501
|
£3.48
|
Add
|
|
010
|
43182-AF
|
Hex Bolt, 5/16" x 3/4" 43182
|
£4.31
|
Add
|
|
011
|
46584-AF
|
Nut, Whiz Lock 5/16-18 46584
|
£3.91
|
Add
|
|
012
|
43009-AF
|
WASHER1-5/8 INCH O D X 25/32 INCH ID
|
£5.26
|
Add
|
|
013
|
24600
|
BRACKET, AXLE REINFORCEMENT
|
£17.41
|
Add
|
|
014
|
23981-AF
|
HITCH BRACKET
|
£9.80
|
Add
|
|
015
|
24595
|
Axle Bracket
|
N/A
|
POA
|
|
016
|
24596
|
LIFT HANDLE
|
£79.37
|
Add
|
|
017
|
23914-AF
|
Hitch Mount Arm 23914
|
£35.73
|
Add
|
|
018
|
23442-AF
|
BRACKET HITCH ARM MOUNT
|
£21.43
|
Add
|
|
019
|
43021-AF
|
WHEEL ASSY
|
£35.83
|
Add
|
|
020
|
43029-AF
|
BOLT. SHOULDER
|
£12.88
|
Add
|
|
021
|
23826
|
Angle Bracket
|
N/A
|
POA
|
|
022
|
43083-AF
|
HEX NUT
|
£3.32
|
Add
|
|
023
|
43082-AF
|
HEX LOCK NUT
|
£4.12
|
Add
|
|
024
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
025
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
026
|
44180
|
Hex Bolt, 5/16-18 x 2"
|
£18.11
|
Add
|
|
027
|
43840-AF
|
HEX BOLT
|
£3.49
|
Add
|
|
028
|
43343-AF
|
PIN COTTER
|
£4.20
|
Add
|
|
029
|
47623
|
Hitch Pin
|
N/A
|
POA
|
|
030
|
43943-AF
|
Handle Grip 43943
|
£8.46
|
Add
|
|
031
|
43080-AF
|
CARRIAGE BOLT
|
£3.49
|
Add
|
