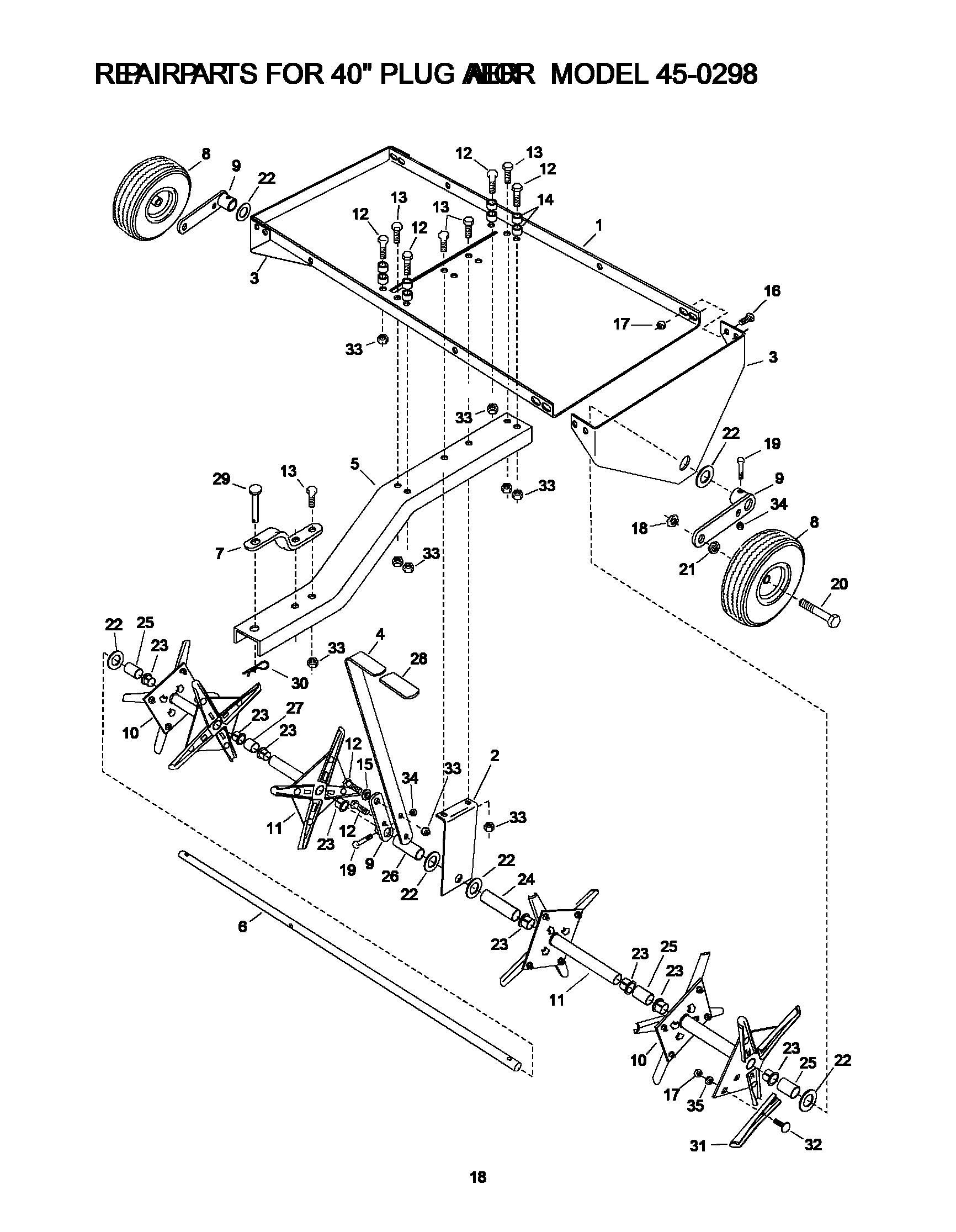

AGR08_0013

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	24618	Tray	N/A	POA
002	24623	Middle Brace	N/A	POA
003	24619	End Plate	N/A	POA
004	24624	Lift Handle	N/A	POA
005	24103-AF	TONGUE	£41.74	Add
006	24622	Shaft	N/A	POA
007	23687-AF	Hitch Bracket 23687	£33.95	Add
008	46503-AF	Wheel 46503	£73.71	Add
009	63931	Wheel Bracket Assembly	N/A	POA
010	63929	Spool Assembly (Double)	N/A	POA
011	63930	Spool Assembly (Single)	N/A	POA
012	43087-AF	Hex Bolt, 3/8-16 x 1-1/4" Long 43087	£4.58	Add
013	710-0514	HEX BOLT	£3.81	Add
014	23625-AF	Spacer, 1/4" Long 23625	£10.35	Add
015	44685-AF	Spacer, Shoulder 44685	£5.99	Add
016	43182-AF	Hex Bolt, 5/16" x 3/4" 43182	£4.31	Add
017	712-3004A	HEX FLANGE NUT	£2.97	Add
018	48115	Hex Nylock Jam Nut 1/2"	N/A	POA
019	1509-69-AF	HEX BOLT, 1/4-20 X 1-3/4" LG.	£2.77	Add
020	46526-AF	Hex Bolt, 1/2-13 x 3-1/2" Long 46526	£6.23	Add
021	43019-AF	Hex Jam Nut, 1/2-13 Thd. 43019	£4.58	Add
022	43009-AF	WASHER1-5/8 INCH O D X 25/32 INCH ID	£5.26	Add
023	741-0493A	Split Bearing, 3/4"	£4.13	Add
024	45151	Spacer	N/A	POA
025	44494-AF	Spacer, 1.33" Long 44494	£4.85	Add
026	44474-AF	Spacer, 2.38" Long 44474	£5.79	Add
027	44500	Spacer, 1.00" Long	N/A	POA
028	47707	Grip	N/A	POA
029	47623	Hitch Pin	N/A	POA
030	43343-AF	PIN COTTER	£4.20	Add
031	24924	Knife, Aerator	N/A	POA
032	43080-AF	CARRIAGE BOLT	£3.49	Add
033	HA21362	NUT	£3.96	Add
034	47189-AF	Hex Nylock Nut 1/4" 47189	£3.91	Add
035	43086-AF	Lock Washer, 5/16" 43086	£3.48	Add
036	49848	Owners Manual	N/A	POA
