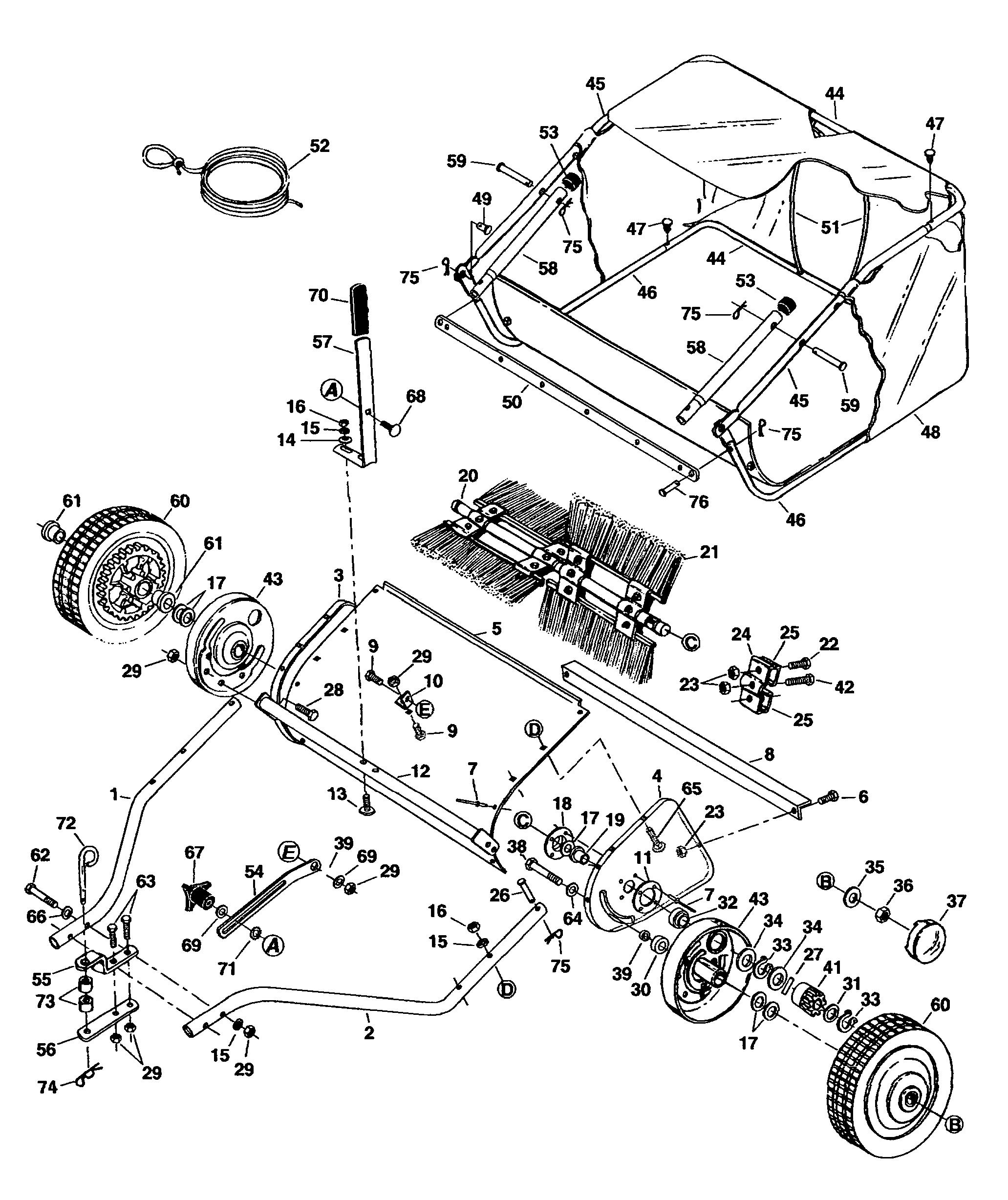

Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
48503-AF
|
OWNERS MANUAL
|
N/A
|
POA
|
|
001
|
48618-AF
|
HITCH TUBE R.H. AF-48618
|
£60.14
|
Add
|
|
002
|
48619-AF
|
HITCH TUBE L.H. AF-48619
|
£60.14
|
Add
|
|
003
|
24950-AF
|
End Plate, R.H.
|
N/A
|
POA
|
|
004
|
24951-AF
|
End Plate, L.H.
|
N/A
|
POA
|
|
005
|
24971-AF
|
WRAPPER
|
N/A
|
POA
|
|
006
|
43175-AF
|
Hex Bolt, 1/4-20 x 1/2" * 43175
|
£4.15
|
Add
|
|
007
|
C-9M5732
|
Pop Rivet (OBSOLETE) (OBSOLETE) (OBSOLETE)
|
N/A
|
POA
|
|
008
|
23854-AF
|
Brace, Rear Support 23854
|
£22.10
|
Add
|
|
009
|
43182-AF
|
Hex Bolt, 5/16" x 3/4" 43182
|
£4.31
|
Add
|
|
010
|
23826-AF
|
Bracket, Angle
|
£8.03
|
Add
|
|
011
|
23336-AF
|
Washer, Special 23336
|
£4.88
|
Add
|
|
012
|
64546-AF
|
Height Adjustment Tube Assembly
|
£111.90
|
Add
|
|
013
|
44947-AF
|
Bolt, Curved Head 5/16-18 x 1-5/8" 44947
|
£4.05
|
Add
|
|
014
|
44695-AF
|
Washer, Bowed 44695
|
£4.05
|
Add
|
|
015
|
43086-AF
|
Lock Washer, 5/16" 43086
|
£3.48
|
Add
|
|
016
|
43083-AF
|
HEX NUT
|
£3.32
|
Add
|
|
017
|
R19212113
|
Washer, 5/8" SAE
|
£5.92
|
Add
|
|
018
|
AF-1629-56
|
Retainer, Dust Cover 1629-56
|
£26.36
|
Add
|
|
019
|
44910-AF
|
BUSHING BRUSH SHAFT (RED)
|
£8.31
|
Add
|
|
020
|
24085-AF
|
Brush Shaft 24085
|
£97.61
|
Add
|
|
021
|
43905-AF
|
BRUSH
|
£27.85
|
Add
|
|
022
|
43012-AF
|
BOLT
|
£3.32
|
Add
|
|
023
|
712-0291
|
LOCK-NUT
|
£2.77
|
Add
|
|
024
|
23580-AF
|
BRUSH RETAINER 42-0197
|
£9.24
|
Add
|
|
025
|
23581-AF
|
BRUSH RETAINER 42-0197
|
£5.45
|
Add
|
|
026
|
46867-AF
|
Clevis Pin, 1/4" x 1-3/4" Lg. 46867
|
£4.65
|
Add
|
|
027
|
47046-AF
|
DOWELL PIN 1/4 X 3/4
|
£3.56
|
Add
|
|
028
|
44692-AF
|
Bolt, Hex 5/16-18 x 1/2" Lg. 44692
|
£4.05
|
Add
|
|
029
|
712-0158
|
NUT, HEX CENTER LOCK, 5/16-18
|
£9.35
|
Add
|
|
030
|
48702-AF
|
SPACER, .39 I.D". X 1-1/4" O.D. X .6"
|
N/A
|
POA
|
|
031
|
44006-AF
|
WASHER
|
£5.01
|
Add
|
|
032
|
46219-AF
|
SPACER
|
£11.10
|
Add
|
|
033
|
AF-1650-21
|
RETAINING RING
|
£2.61
|
Add
|
|
034
|
40001-AF
|
Washer, Shim 1-1/8" x .594" x .025" 44007-AF
|
£3.58
|
Add
|
|
035
|
141-AF
|
Washer, Flat 1-1/2" x .375" x .062" 141
|
£3.91
|
Add
|
|
036
|
1038-AF
|
Nut, Nylock 3/8-24 Thread 1038
|
£3.48
|
Add
|
|
037
|
2674-32-AF
|
Hub Cap 2674-32
|
N/A
|
POA
|
|
038
|
44961-AF
|
Bolt, Hex 3/8-24 x 3-1/4" Lg. 44961
|
£4.31
|
Add
|
|
039
|
23400-AF
|
SPACER
|
£5.85
|
Add
|
|
040
|
43886-AF
|
Gear, Pinion R.H. (not shown) 43886
|
£23.48
|
Add
|
|
041
|
43885-AF
|
PINION LH 11TEETH
|
£21.85
|
Add
|
|
042
|
43661-AF
|
HEX BOLT
|
£3.11
|
Add
|
|
043
|
64578-AF
|
ASS'Y, DUST COVER (OBSOLETE)
|
N/A
|
POA
|
|
044
|
48469-AF
|
TUBE, HOPPER FRAME (REAR)
|
£43.35
|
Add
|
|
045
|
48466-AF
|
AF-48466 AF-48466
|
£30.81
|
Add
|
|
046
|
48727-AF
|
TUBE, LOWER HOPPER FRAME (FRONT)
|
£44.18
|
Add
|
|
047
|
48402-AF
|
PLUG
|
£6.01
|
Add
|
|
048
|
48403-AF
|
BAG, HOPPER (26" A-F RED) AF-48403
|
£229.34
|
Add
|
|
049
|
48366-AF
|
PIN
|
£8.53
|
Add
|
|
050
|
23352-AF
|
Strap, Bag Frame 23352
|
£28.38
|
Add
|
|
051
|
43926-AF
|
HOPPER SUPPORT ROD
|
£8.99
|
Add
|
|
052
|
43737-AF
|
Hopper Rope 43737
|
£5.99
|
Add
|
|
053
|
44481-AF
|
Cap, Vinyl 44481
|
£4.05
|
Add
|
|
054
|
24979-AF
|
STRAP HT ADJUST
|
£24.95
|
Add
|
|
055
|
23687-AF
|
Hitch Bracket 23687
|
£33.95
|
Add
|
|
056
|
24192-AF
|
BRACKET (EXRED)
|
£8.88
|
Add
|
|
057
|
23850-AF
|
Handle, Height Adjustment 23850
|
£28.31
|
Add
|
|
058
|
48323-AF
|
Tube, Bag Arm
|
£30.99
|
Add
|
|
059
|
43513-AF
|
CLEVIS PIN (RED)
|
£8.53
|
Add
|
|
060
|
44930-AF
|
WHEEL ASSY 38" SWEEPER
|
£70.41
|
Add
|
|
061
|
741-0249
|
BEARING
|
£8.44
|
Add
|
|
062
|
44179-AF
|
BOLT, HEX 5/16-18 X 2-1/2" LG.
|
N/A
|
POA
|
|
063
|
44180-AF
|
BOLT HEX HEAD
|
£4.92
|
Add
|
|
064
|
43070-AF
|
Washer, 3/8"
|
£3.91
|
Add
|
|
065
|
43681-AF
|
Bolt, Carriage 5/16-18 x 1-1/2" 43681
|
£3.48
|
Add
|
|
066
|
R19111116-AF
|
WASHER
|
£3.76
|
Add
|
|
067
|
43720-AF
|
KNOB (RED)
|
£7.83
|
Add
|
|
068
|
43080-AF
|
CARRIAGE BOLT
|
£3.49
|
Add
|
|
069
|
43081-AF
|
FLAT WASHER
|
£3.49
|
Add
|
|
070
|
43943-AF
|
Handle Grip 43943
|
£8.46
|
Add
|
|
071
|
44732-AF
|
TOOTH LOCK WASHER
|
£3.49
|
Add
|
|
072
|
23353-AF
|
HITCH PIN
|
£19.20
|
Add
|
|
073
|
23368-AF
|
Tube, Hitch Spacer 23368
|
£8.18
|
Add
|
|
074
|
43343-AF
|
PIN COTTER
|
£4.20
|
Add
|
|
075
|
43055-AF
|
COTTER PIN
|
£6.04
|
Add
|
|
076
|
48365-AF
|
PIN
|
£4.92
|
Add
|
