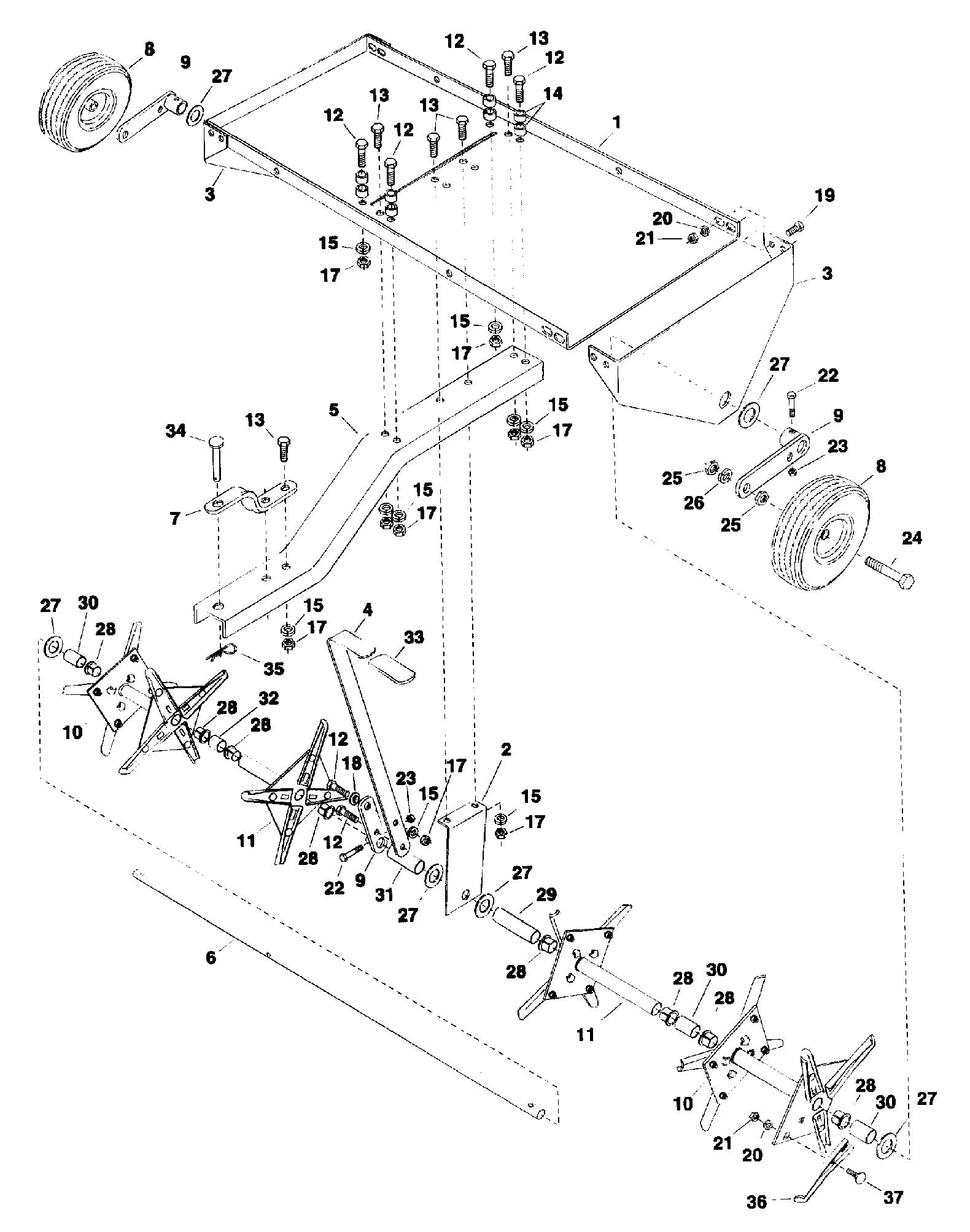

FG368_0010

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
	48308-AF	OWNERS MANUAL	N/A	POA
001	24618-AF	TRAY AF-24618	£124.32	Add
002	24623-AF	BRACKET, AXLE REINFORCEMENT AF-24623	£12.96	Add
003	24619-AF	END PLATE AF-24619	£58.17	Add
004	24624-AF	LIFT HANDLE AF-24624	£31.26	Add
005	24103-AF	TONGUE	£41.74	Add
006	24622-AF	SHAFT	N/A	POA
007	23687-AF	Hitch Bracket 23687	£33.95	Add
008	47052-AF	WHEEL	£130.97	Add
009	63931-AF	WHEEL BRACKET ASSEMBLY	£58.98	Add
010	63929-AF	SPOOL ASSEMBLY (DOUBLE)	£69.09	Add
011	63930-AF	SPOOL ASSEMBLY (SINGLE)	N/A	POA
012	43087-AF	Hex Bolt, 3/8-16 x 1-1/4" Long 43087	£4.58	Add
013	43001-AF	HEX BOLT (RED)	£3.49	Add
014	23625-AF	Spacer, 1/4" Long 23625	£10.35	Add
015	736-0169	L. WASHER	£2.89	Add
017	43082-AF	HEX LOCK NUT	£4.12	Add
018	44685-AF	Spacer, Shoulder 44685	£5.99	Add
019	43182-AF	Hex Bolt, 5/16" x 3/4" 43182	£4.31	Add
020	43086-AF	Lock Washer, 5/16" 43086	£3.48	Add
021	712-0158	NUT, HEX CENTER LOCK, 5/16-18	£9.35	Add
022	43648-AF	Bolt, Hex 1/4-20 x 1-1/2" Lg.* 43648	£4.58	Add
023	712-0291	LOCK-NUT	£2.77	Add
024	47058-AF	HEX BOLT 1/2-13X4"LG AF-47058	£5.54	Add
025	43019-AF	Hex Jam Nut, 1/2-13 Thd. 43019	£4.58	Add
026	43353-AF	Lock Washer, 1/2" 43353	£3.08	Add
027	43009-AF	WASHER1-5/8 INCH O D X 25/32 INCH ID	£5.26	Add
028	741-0493A	Split Bearing, 3/4"	£4.13	Add
029	45151-AF	SPACER	£11.00	Add
030	44494-AF	Spacer, 1.33" Long 44494	£4.85	Add
031	44474-AF	Spacer, 2.38" Long 44474	£5.79	Add
032	44500-AF	SPACER, 1" O.D. X 1" LG.	£4.49	Add
033	47707-AF	GRIP	N/A	POA
034	47623-AF	HITCH PIN	£3.56	Add
035	43343-AF	PIN COTTER	£4.20	Add
036	24924-AF	KNIFE, AERATOR	£14.41	Add
037	43080-AF	CARRIAGE BOLT	£3.49	Add
