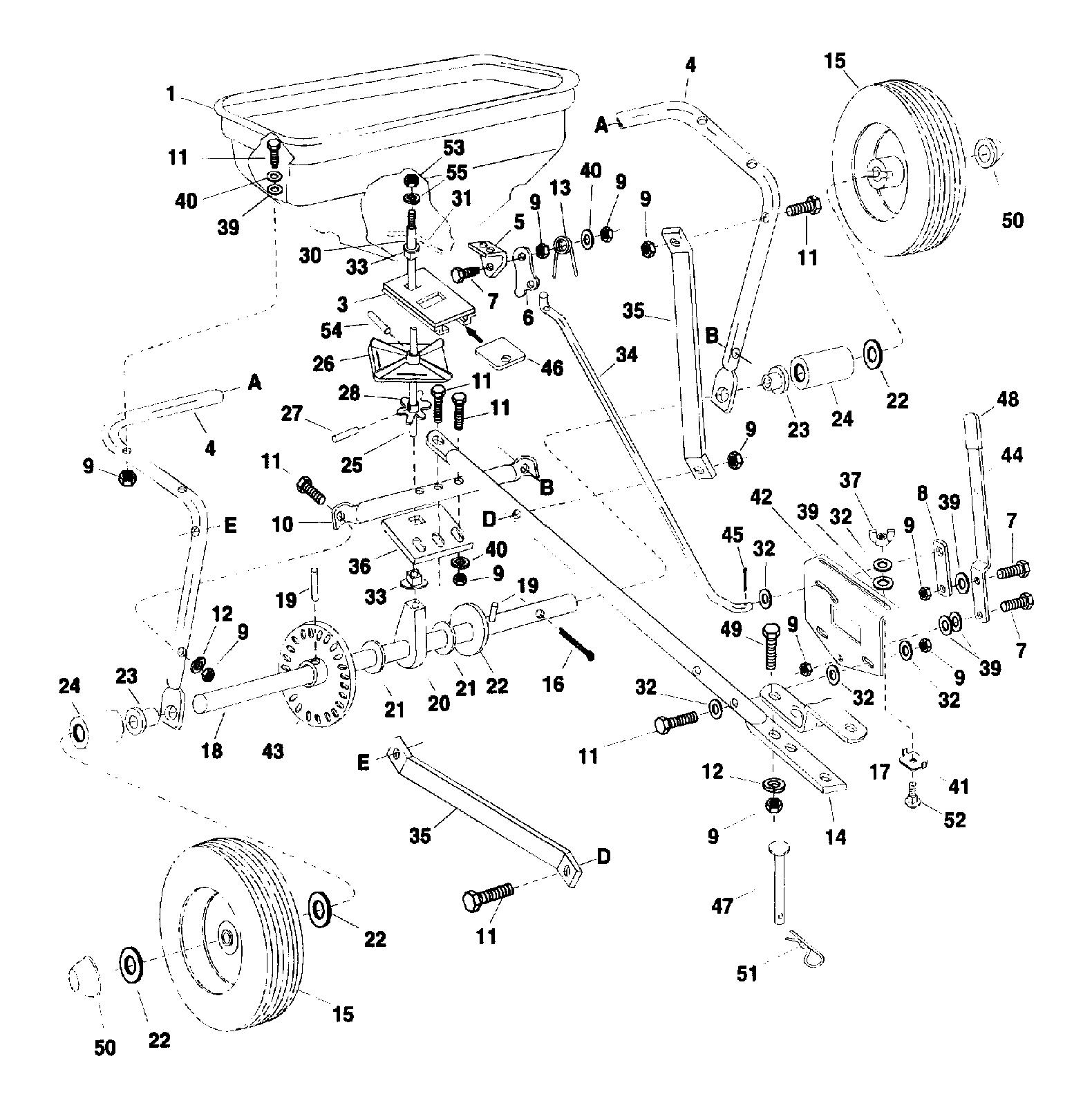

Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
48321-AF
|
OWNER'S MANUAL
|
N/A
|
POA
|
|
001
|
44624-AF
|
Hopper 44624
|
£225.10
|
Add
|
|
002
|
43882-AF
|
Rivet, Stainless 43882
|
£4.85
|
Add
|
|
003
|
62482-AF
|
ASSY GUIDE CLOSURE
|
£57.27
|
Add
|
|
004
|
44588-AF
|
Tube, Frame 44588
|
£89.24
|
Add
|
|
005
|
23753-AF
|
SLIDE GATE ANGLE BRACKET
|
£3.62
|
Add
|
|
006
|
23758-AF
|
SLIDE GATE BRACKET
|
£3.87
|
Add
|
|
007
|
43012-AF
|
BOLT
|
£3.32
|
Add
|
|
008
|
24857-AF
|
Flow Control Link
|
£3.97
|
Add
|
|
009
|
712-0291
|
LOCK-NUT
|
£2.77
|
Add
|
|
010
|
44591-AF
|
Tube, Crossover 44591
|
£24.35
|
Add
|
|
011
|
43648-AF
|
Bolt, Hex 1/4-20 x 1-1/2" Lg.* 43648
|
£4.58
|
Add
|
|
012
|
43177-AF
|
Washer, Lock 1/4" I.D.* 43177
|
£3.08
|
Add
|
|
013
|
44566-AF
|
SPRING TORSION
|
£4.74
|
Add
|
|
014
|
44586-AF
|
Tube, Hitch 44586
|
£37.34
|
Add
|
|
015
|
47052-AF
|
WHEEL
|
£130.97
|
Add
|
|
016
|
47063-AF
|
COTTER PIN
|
£3.49
|
Add
|
|
017
|
23818-AF
|
Bracket, Hitch
|
£10.66
|
Add
|
|
018
|
24407-AF
|
Shaft, Axle 24407
|
£57.95
|
Add
|
|
019
|
44665-AF
|
Pin, Spring 5/32" Dia. x 1-1/4" Lg. 44665
|
£4.05
|
Add
|
|
020
|
44672-AF
|
Bushing, Axle Shaft 44672
|
£18.96
|
Add
|
|
021
|
44137-AF
|
Washer, Flat 1/2" I.D. 44137
|
£2.60
|
Add
|
|
022
|
R19171616-AF
|
WASHER 17/32X1X16GA
|
£3.76
|
Add
|
|
023
|
741-0248
|
Bearing, Flange
|
£14.56
|
Add
|
|
024
|
46501-AF
|
Tube, Spacer 46501
|
£8.40
|
Add
|
|
025
|
23524-AF
|
SHAFT SPROCKET (OBSOLETE) (OBSOLETE)
|
N/A
|
POA
|
|
026
|
04367-AF
|
SPREADER PLATE
|
£33.08
|
Add
|
|
027
|
43850-AF
|
ROLL PIN
|
£6.78
|
Add
|
|
028
|
44468-AF
|
SPROCKET 6T
|
£6.85
|
Add
|
|
029
|
C-9M5732
|
Pop Rivet (OBSOLETE) (OBSOLETE) (OBSOLETE)
|
N/A
|
POA
|
|
030
|
23766-AF
|
SLEEVE AGITATOR (OBSOLETE) (OBSOLETE)
|
N/A
|
POA
|
|
031
|
43878-AF
|
WIRE AGITATOR
|
£14.86
|
Add
|
|
032
|
R19111116-AF
|
WASHER
|
£3.76
|
Add
|
|
033
|
44285-AF
|
BUSHING DELRIN
|
£5.63
|
Add
|
|
034
|
44469-AF
|
Rod, Flow Control 44469
|
£28.51
|
Add
|
|
035
|
23525-AF
|
Brace, Hitch 23525
|
£38.89
|
Add
|
|
036
|
23780-AF
|
Support, Shaft
|
£7.06
|
Add
|
|
037
|
47141-AF
|
NUT NYLON WING 1/4-20 NU34
|
£3.49
|
Add
|
|
038
|
43866-AF
|
Bolt, Hex 1/4-20 x 5/8" Lg. Gr. 5 43866
|
£3.48
|
Add
|
|
039
|
1543-69-AF
|
Washer, Nylon 1543-069
|
N/A
|
POA
|
|
040
|
43088-AF
|
FLAT WASHER
|
£3.11
|
Add
|
|
041
|
24858-AF
|
STOP (ADJUSTABLE)
|
£3.49
|
Add
|
|
042
|
24855-AF
|
Bracket, Flow Control Mount 24855
|
£19.79
|
Add
|
|
043
|
62798-AF
|
GEAR ASSY
|
£98.33
|
Add
|
|
044
|
24859-AF
|
Flow Control Arm 24859
|
£14.93
|
Add
|
|
045
|
44101-AF
|
Cotter Pin 3/32" x 3/4" Lg.* 44101
|
£3.91
|
Add
|
|
046
|
23533-AF
|
PLATE CLOSURE
|
£15.33
|
Add
|
|
047
|
47623-AF
|
HITCH PIN
|
£3.56
|
Add
|
|
048
|
43848-AF
|
Grip, Flow Control Arm 43848
|
£5.99
|
Add
|
|
049
|
43661-AF
|
HEX BOLT
|
£3.11
|
Add
|
|
050
|
44663-AF
|
CAP NUT
|
£4.31
|
Add
|
|
051
|
43343-AF
|
PIN COTTER
|
£4.20
|
Add
|
|
052
|
44950-AF
|
BOLT
|
£3.62
|
Add
|
|
053
|
712-0798
|
HEX. NUT
|
£7.61
|
Add
|
|
054
|
46055-AF
|
PIN SPRING
|
£3.49
|
Add
|
|
055
|
736-0169
|
L. WASHER
|
£2.89
|
Add
|
